Turbocharger Pressure Power Indicator Replacement

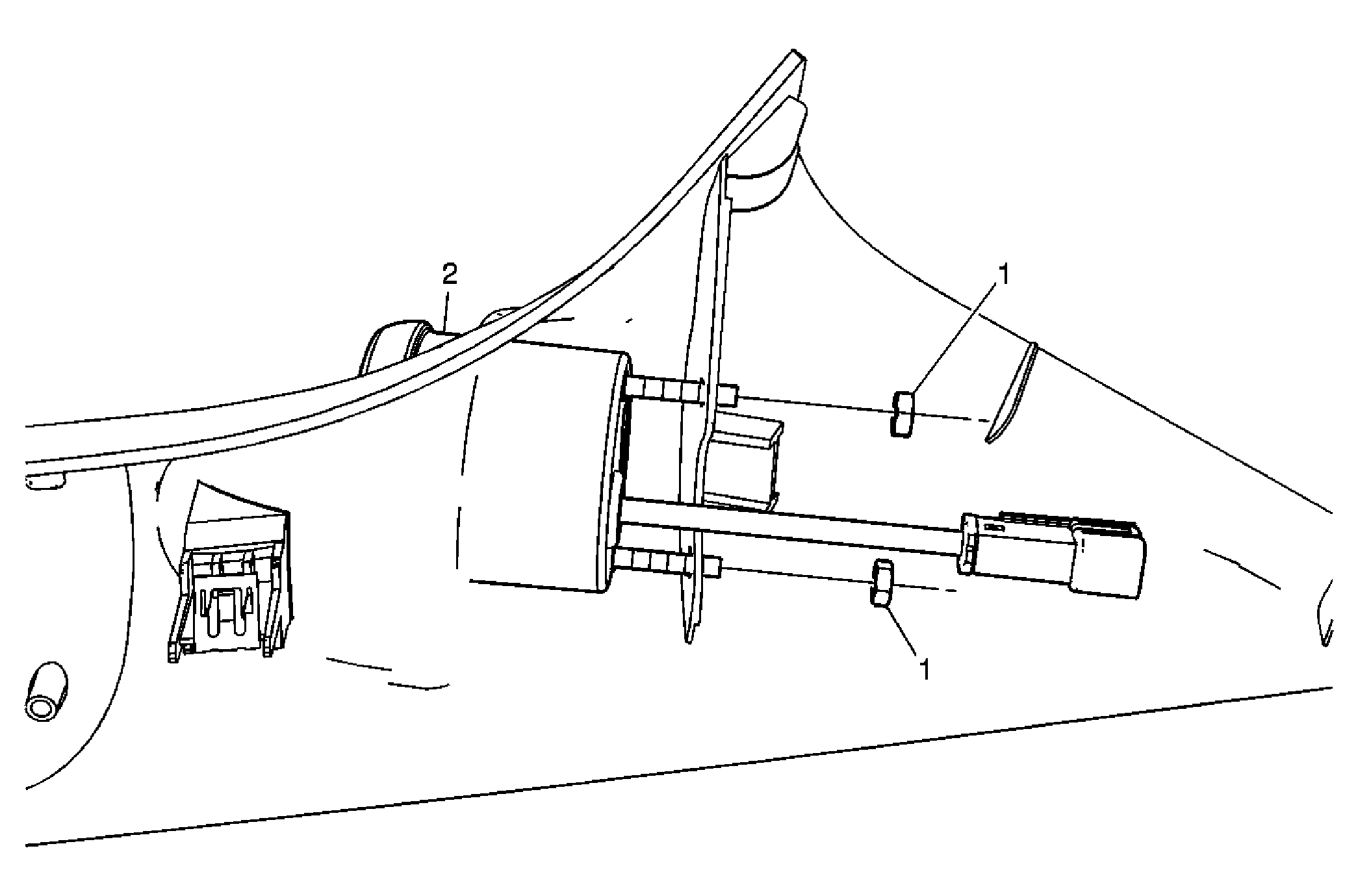

Fig 1: Identifying Turbocharger Pressure Power Indicator

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure:  Remove the garnish molding. Refer to Windshield Garnish Molding Replacement .
1	Turbocharger Pressure Power Indicator Nut (Qty: 2) CAUTION: Refer to Fastener Caution . Tighten:  5 N.m (44 lb in)
2	Turbocharger Pressure Power Indicator Assembly Procedure:  Disconnect the electrical connector.
