Fuel Tank

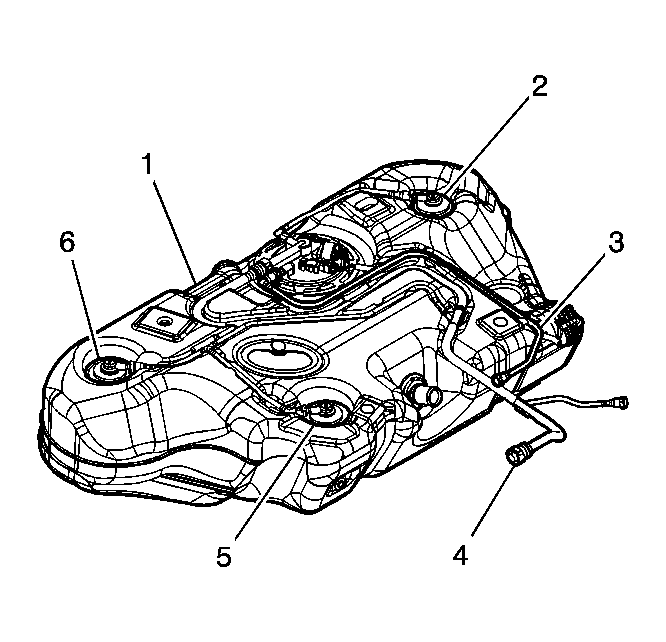

Fig 1: View Of Fuel Tank
GM1558965Courtesy of GENERAL MOTORS CORP.

The fuel tank (1) stores the fuel supply. The fuel tank is located in the rear of the vehicle. The fuel tank is held in place by 2 metal straps that attach to the frame. The fuel tank is molded from high-density polyethylene.
