Removal Procedure

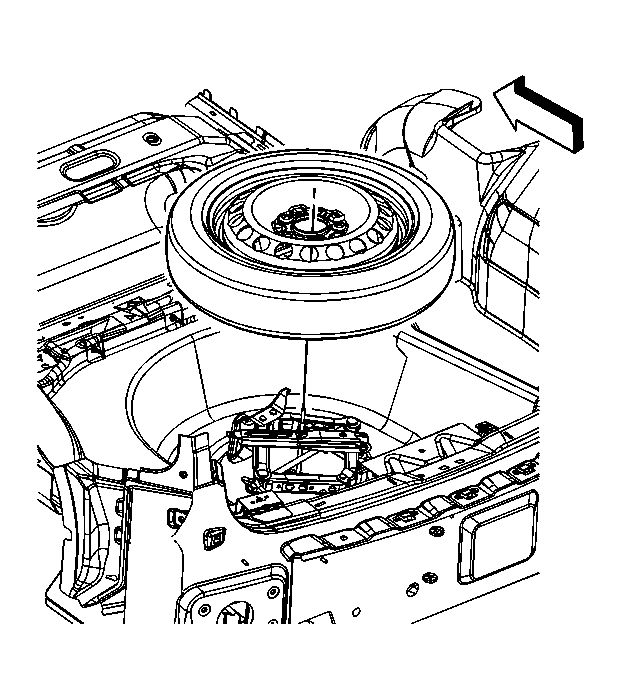

    Fig 1: View Of Spare Tire
    GM1721198Courtesy of GENERAL MOTORS CORP.
  1. Disconnect the negative battery cable. Refer to Battery Negative Cable Disconnection and Connection .
  2. Remove the spare tire.

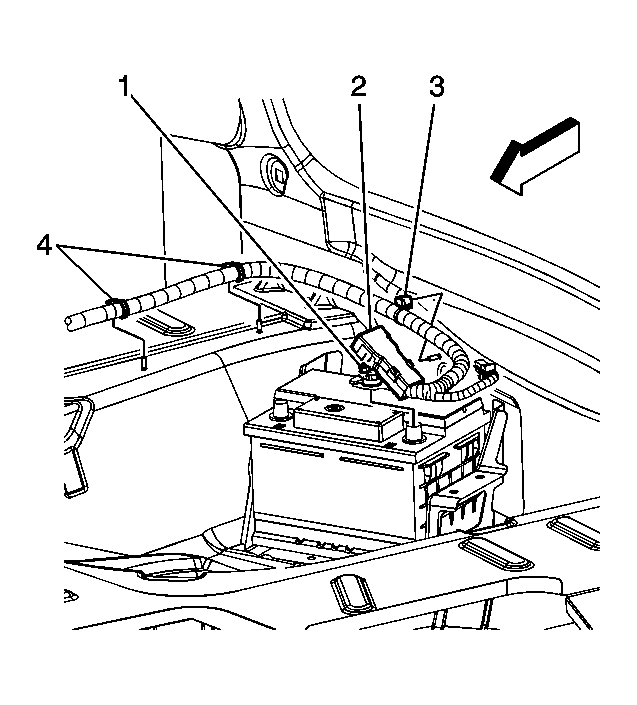

    3. Fig 2: Identifying Positive Battery Cable
    GM1631515Courtesy of GENERAL MOTORS CORP.
  3. Open the positive battery cable cover (2).
  4. Loosen the positive battery cable nut (1).
  5. Remove the positive battery cable from the battery.

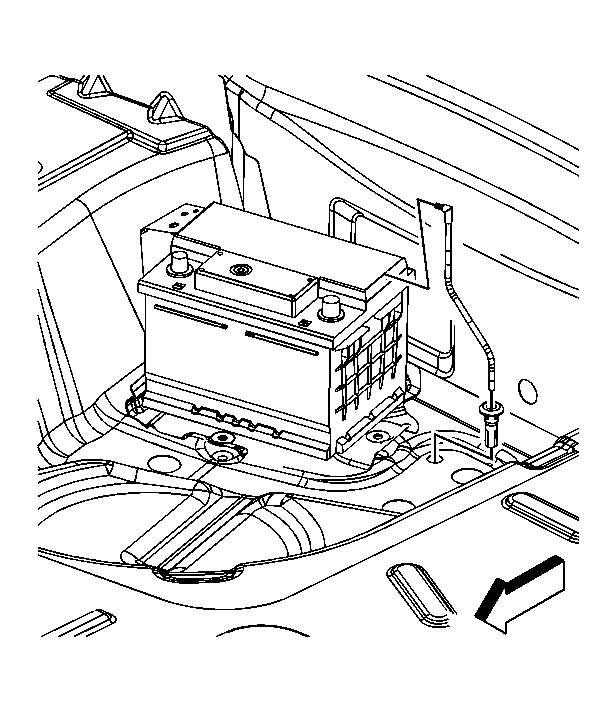

    6. Fig 3: Identifying Battery Vent Tube
    GM1631510Courtesy of GENERAL MOTORS CORP.
  6. Disconnect the battery vent tube from the battery.

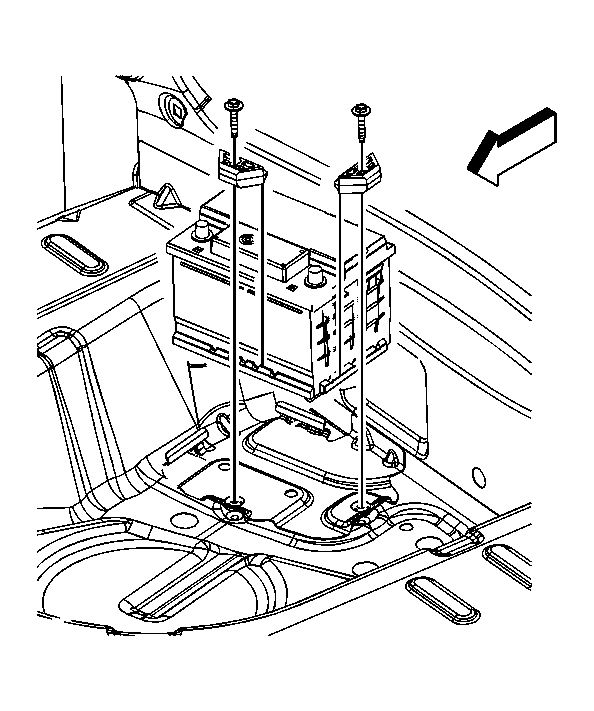

    7. Fig 4: View Of Battery Hold Down
    GM1631508Courtesy of GENERAL MOTORS CORP.
  7. Remove the battery hold down retainer bolts.
  8. Remove the battery hold down retainers.
    9. NOTE: Do not tip the battery more than 40 degrees during removal.
  9. Remove the battery.
