Outside Rearview Mirror Replacement

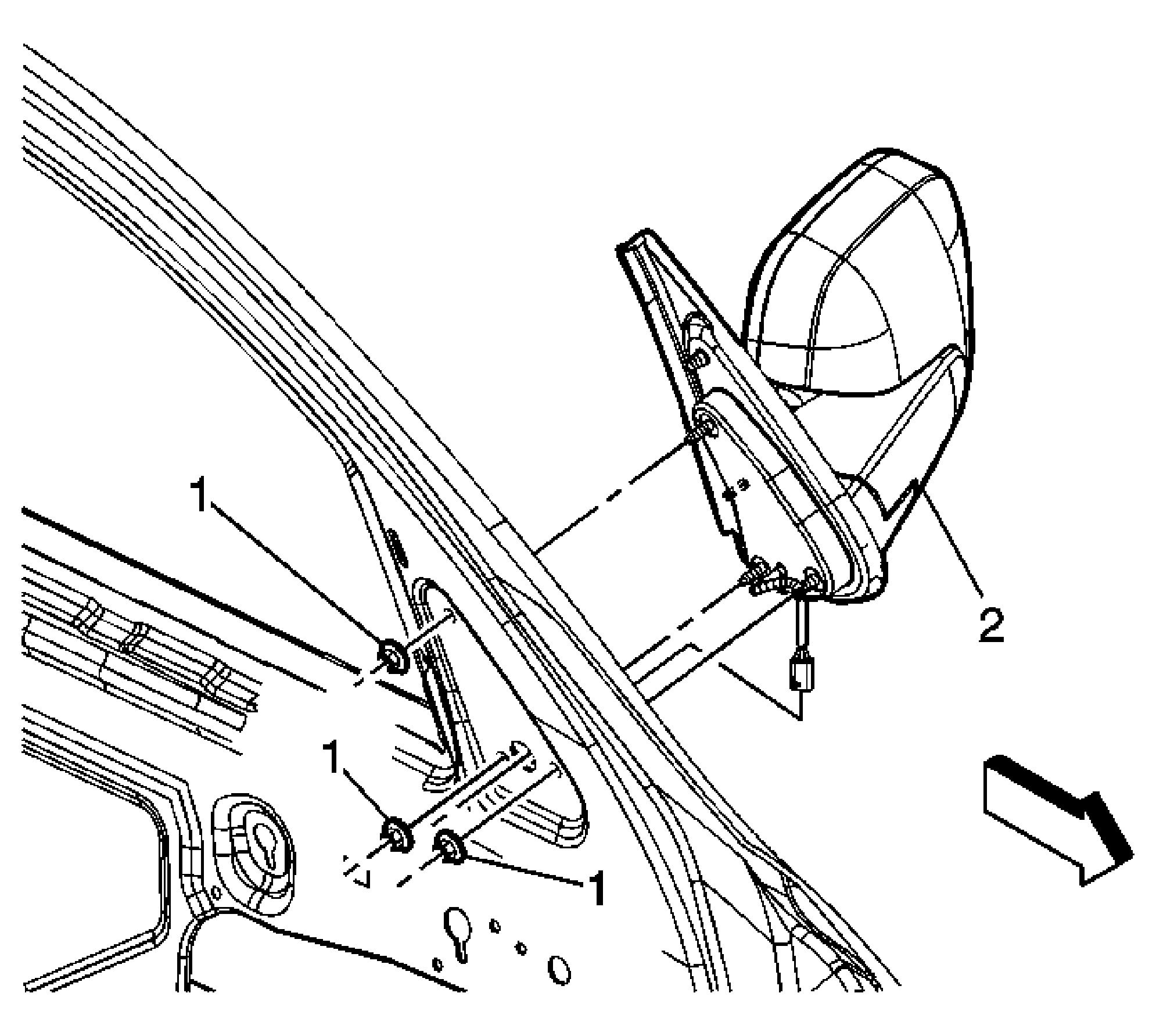

Fig 1: View Of Outside Rearview Mirror & Nuts

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure Remove the front door interior trim panel. Refer to Front Side Door Trim Panel Replacement .
1	Mirror Outside Rearview Nut (Qty: 3) CAUTION: Refer to Fastener Caution . Tighten: 10 N.m (89 lb in)
2	Outside Rearview Mirror Assembly Tip: Disconnect the electrical connector.
