Rearview Camera (UVC) Wiring Schematics

WARNING: This page is about a different car, the 2011 Chevrolet HHR. However, it is still accessible from the selected car via links, so may be relevant.

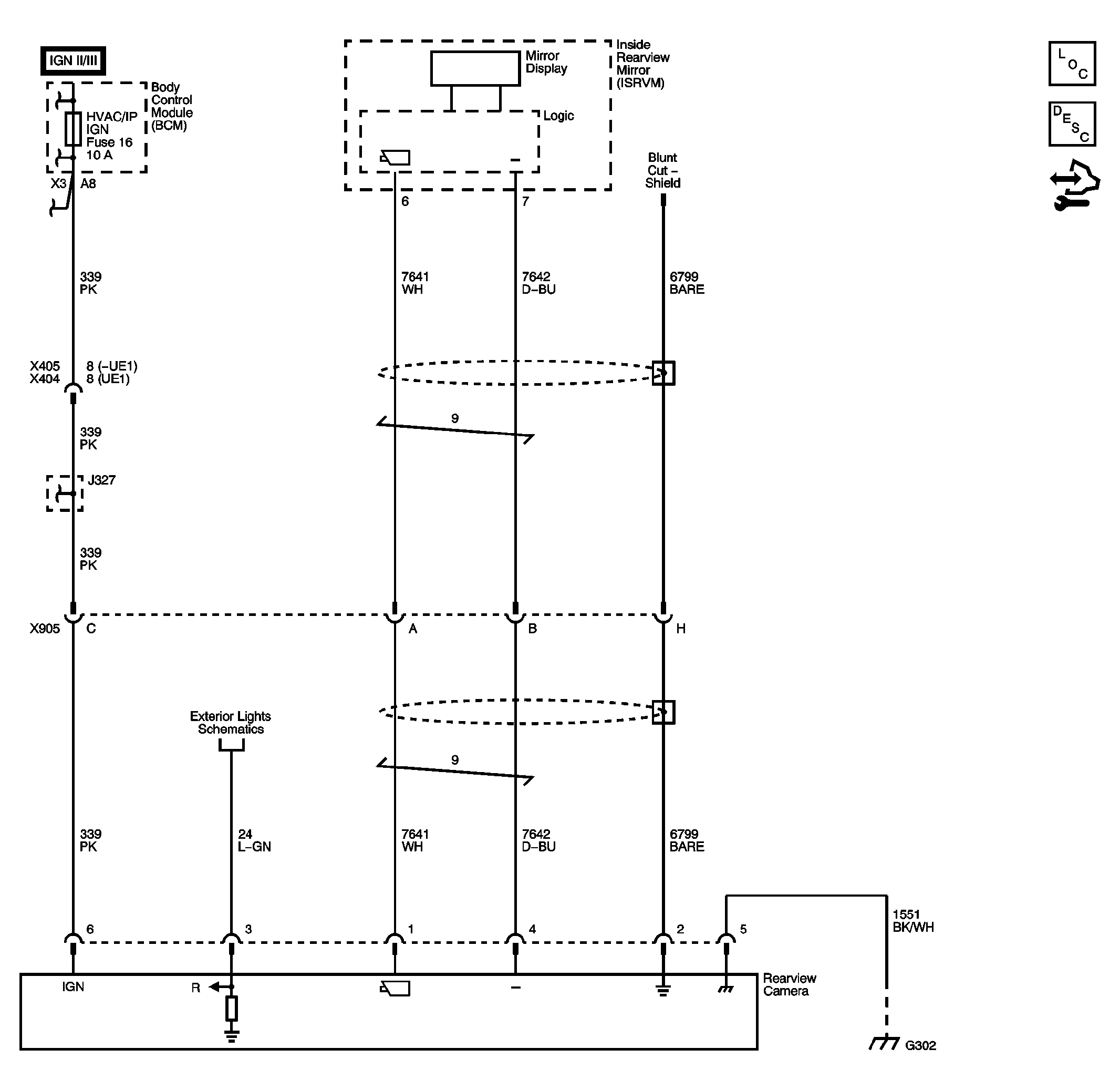

Fig 1: Rearview Camera (UVC) Wiring Schematics
GM2377088Courtesy of GENERAL MOTORS COMPANY
