Section 601 (Electrical Component Locator - Powertrain Component Views)
>>
Powertrain Component Views
>>
View Of Backup Lamp Switch
View Of Backup Lamp Switch
WARNING:
This page is about a different car, the 2011 GMC Canyon and 2011 Chevrolet Colorado. However, it is still accessible from the selected car via links, so may be relevant.
View Of Backup Lamp Switch
Component Name
Callout
Backup Lamp Switch
1

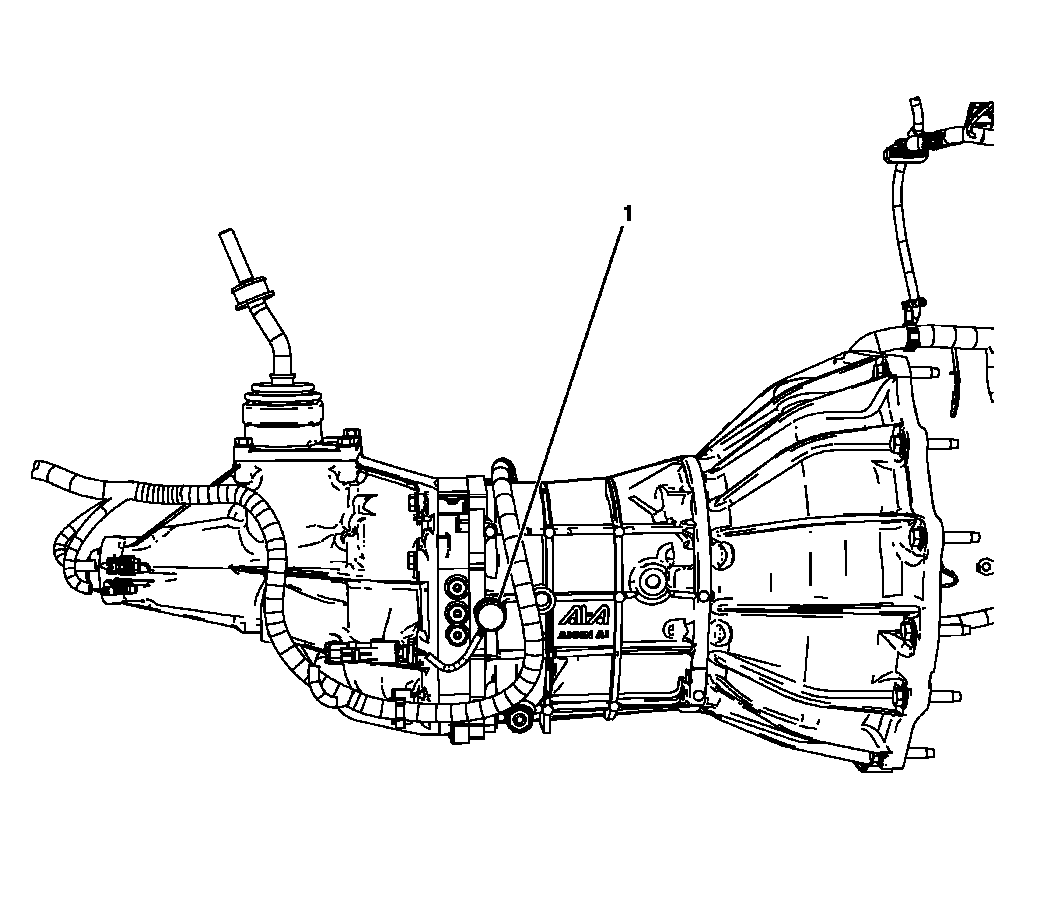

Fig 1: View Of Backup Lamp Switch
Courtesy of GENERAL MOTORS CORP.
