Tail/Stop Lamp - Right Connector End View

WARNING: This page is about a different car, the 2011 GMC Canyon and 2011 Chevrolet Colorado. However, it is still accessible from the selected car via links, so may be relevant.

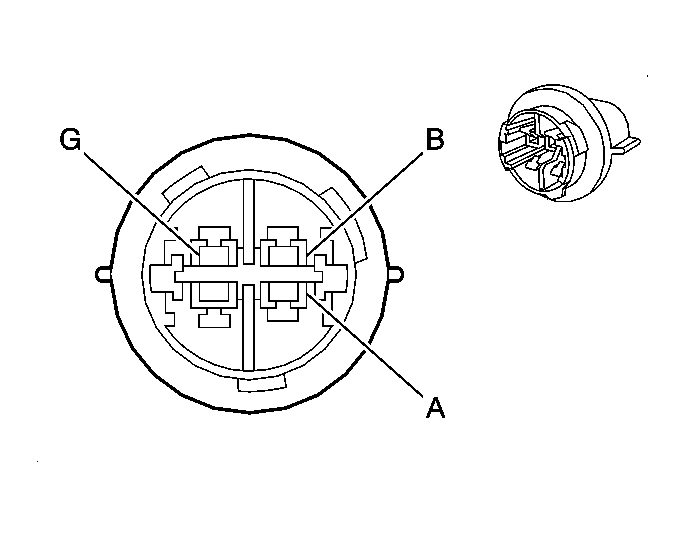

Fig 1: Tail/Stop Lamp - Right Connector End View

Courtesy of GENERAL MOTORS CORP.

Tail/Stop Lamp - Right

Pin	Wire	Circuit	Function
A	L-BU	20	Stop Lamp Control
B	BN	9	Park Lamp Control
G	BK	850	Ground

Connector Part Information

Harness Type: Taillamp - Right
OEM Connector: 16530669
Service Connector: Service by Harness - See Part Catalog
Description: 3-Way F W3 Wedge Base Lamp Socket (NA)

Terminal Part Information

Terminated Lead: Service by Harness - See Part Catalog
Release Tool: Not Available
Diagnostic Test Probe: Not Available
Terminal/Tray: Not Available
Core/Insulation Crimp: Not Available
