Seat Adjuster Switch - Driver X1 (AG1) Connector End View

WARNING: This page is about a different car, the 2011 GMC Canyon and 2011 Chevrolet Colorado. However, it is still accessible from the selected car via links, so may be relevant.

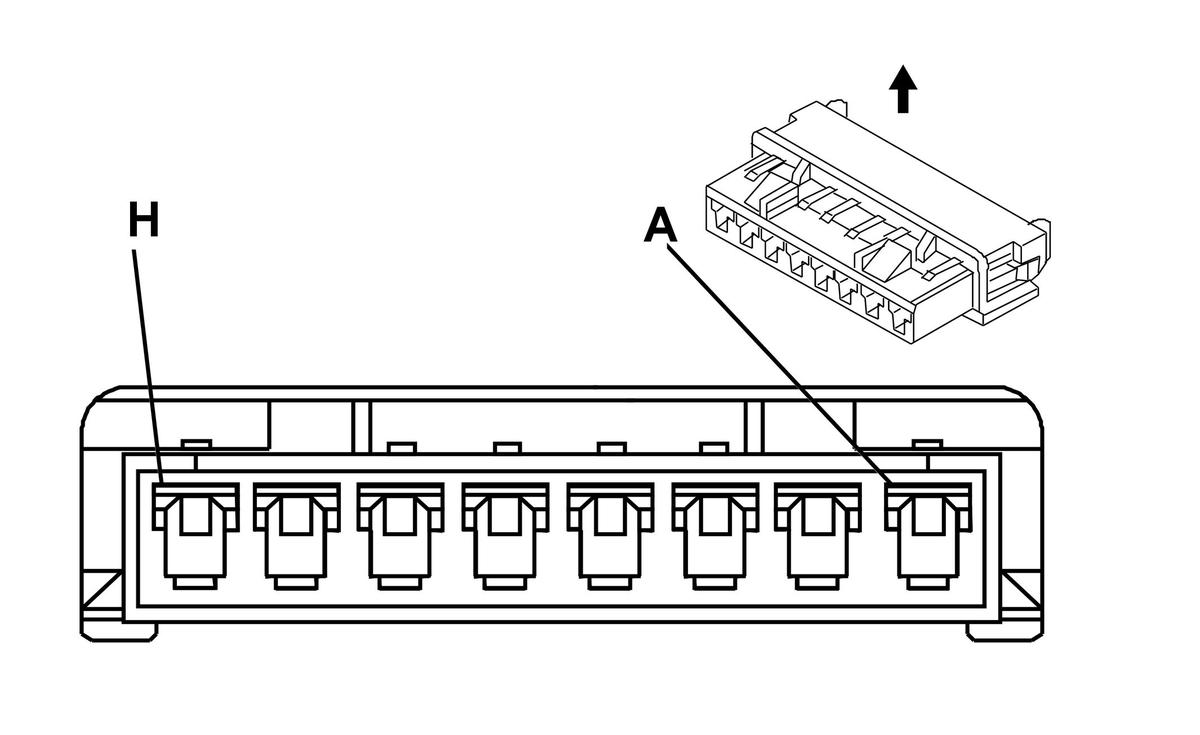

Fig 1: Seat Adjuster Switch - Driver X1 (AG1) Connector End View
GM808876Courtesy of GENERAL MOTORS CORP.
Seat Adjuster Switch - Driver X1 (AG1)

Pin Wire Circuit Function
A 2 OG 1040 Battery Positive Voltage
B 1 YE 282 Driver Seat Rear Vertical Motor Up Control
C 1 L-BU 283 Driver Seat Rear Vertical Motor Down Control
D 1 L-GN 284 Driver Seat Horizontal Motor Rearward Control
E 1 TN 285 Driver Seat Horizontal Motor Forward Control
F 1 D-GN 286 Driver Seat Front Vertical Motor Up Control
G 1 D-BU 287 Driver Seat Front Vertical Motor Down Control
H 2 BK 2050 Ground
Connector Part Information
  • Harness: Driver Power Seat
  • OEM: 12015416
  • Service: 12117340
  • Description: 8-Way F Metri-Pack 280 Series (NA)
Terminal Part Information
  • Terminated Lead: Pending
  • Release Tool: J-38125-11A
  • Diagnostic Test Probe: J-35616-4A (PU)
  • Terminal/Tray: 12066214/2
  • Core/Insulation Crimp: Pins: B, C, D, E, F, G: A/B
  • Core/Insulation Crimp: Pins: A, H: A/B
