Multifunction Switch - I/P Connector End View

WARNING: This page is about a different car, the 2011 GMC Canyon and 2011 Chevrolet Colorado. However, it is still accessible from the selected car via links, so may be relevant.

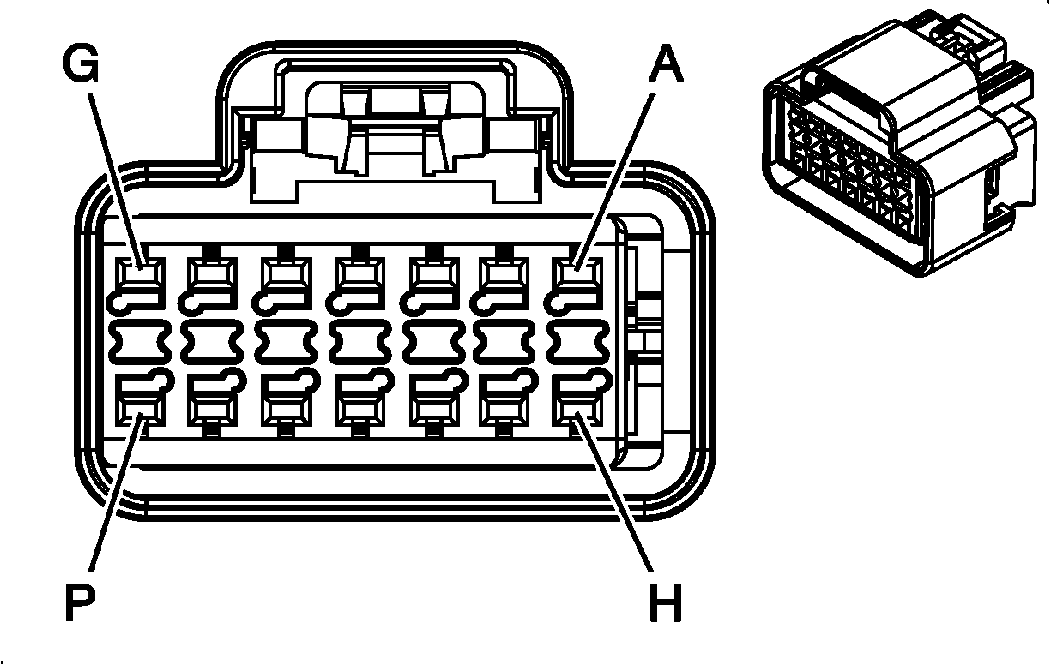

Fig 1: Multifunction Switch - I/P Connector End View
GM2446265Courtesy of GENERAL MOTORS CORP.
Multifunction Switch - I/P

Pin Wire Circuit Function
A 0.35 PK 339 Ignition Voltage
B 0.35 L-GN/BK 1563 2-HI Indicator - Control (NP1)
C 0.35 BN 9 Park Lamp Control
D 0.35 D-GN 2308 Passenger Air Bag Off Indicator Control
E 0.35 D-BU/WH 2307 Passenger Air Bag On Indicator Control
F 0.35 BN 1560 Neutral Indicator Control (NP1)
G 0.35 GY 8 Instrument Panel Lamp Dimmer Switch Signal
H 0.35 BK 2050 Ground
0.5 BK 2050 Ground
J 0.35 TN/BK 1566 4-HI Indicator - Control (NP1)
K - - Not Used
L 0.35 YE 234 Seat Belt Indicator Control
M 0.35 GY/BK 1694 5-Volt Reference (NP1)
N 0.35 L-BU/BK 1693 Switch Signal Low (NP1)
P 0.35 PU/WH 1565 4-LO Indicator - Control (NP1)
Connector Part Information
  • Harness: Instrument Panel
  • OEM: 13665400
  • Service: 13577618
  • Description: 14-Way F GT 150 Series
Terminal Part Information
  • Pins: A-G, J, L-P
  • Terminated Lead: 13575493
  • Pin: H
  • Terminated Lead: 13575492
  • Release Tool: J-38125-29
  • Diagnostic Test Probe: J-35616-2A (GY)
  • Terminal/Tray: Pending
  • Core/Insulation Crimp: Pending
