Sunroof Switch Replacement
WARNING: This page is about a different car, the 2010 Chevrolet HHR. However, it is still accessible from the selected car via links, so may be relevant.

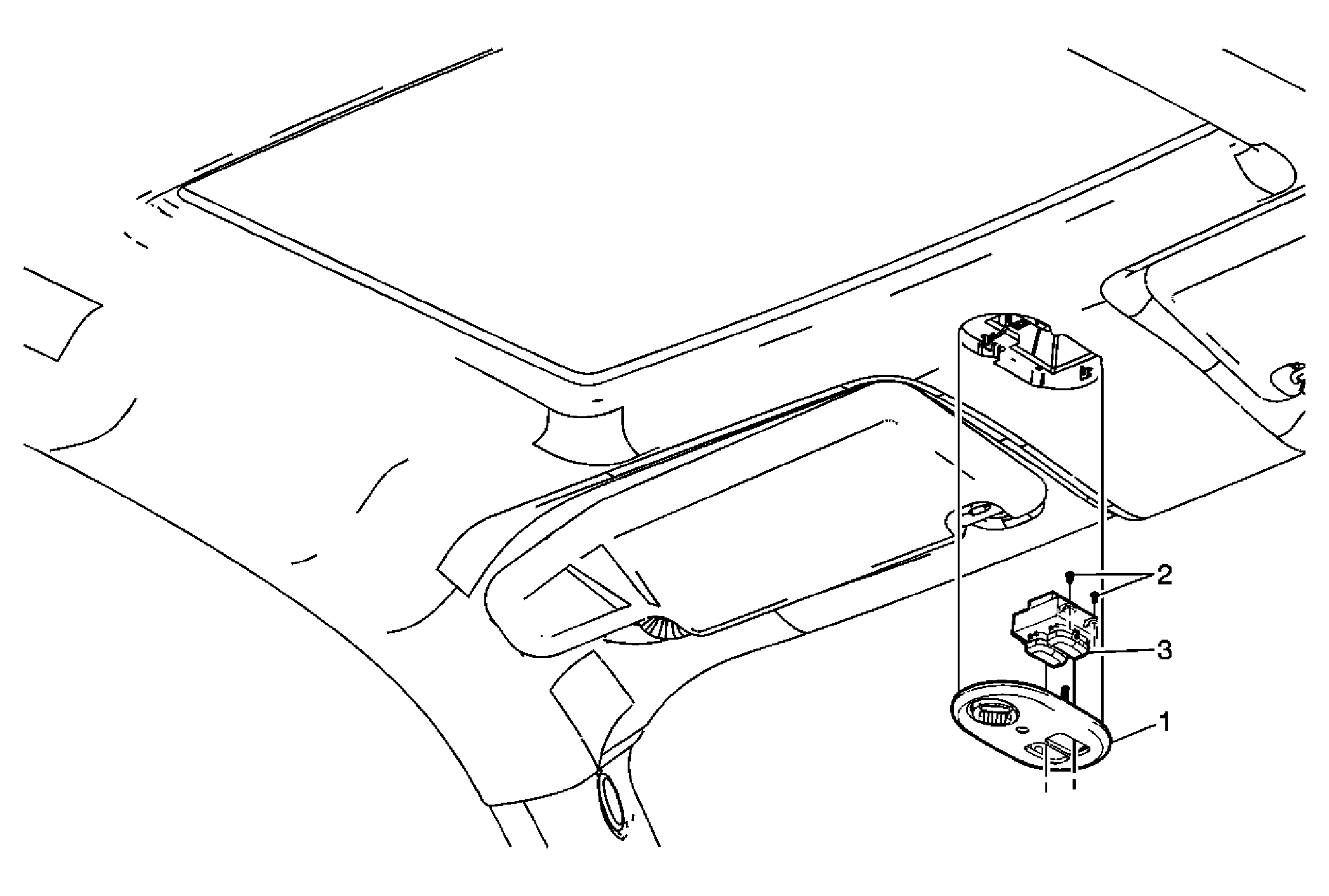

| Callout | Component Name |
|---|---|
| 1 | Sunroof Switch Bezel Tip: Disconnect the electrical connector to the microphone. |
| 2 | Sunroof Switch Screw (Qty: 2)
CAUTION:
Refer to Fastener Caution
.
Tighten: 2 N.m (18 lb in) |
| 3 | Sunroof Switch Assembly |
