Immobilizer Schematics

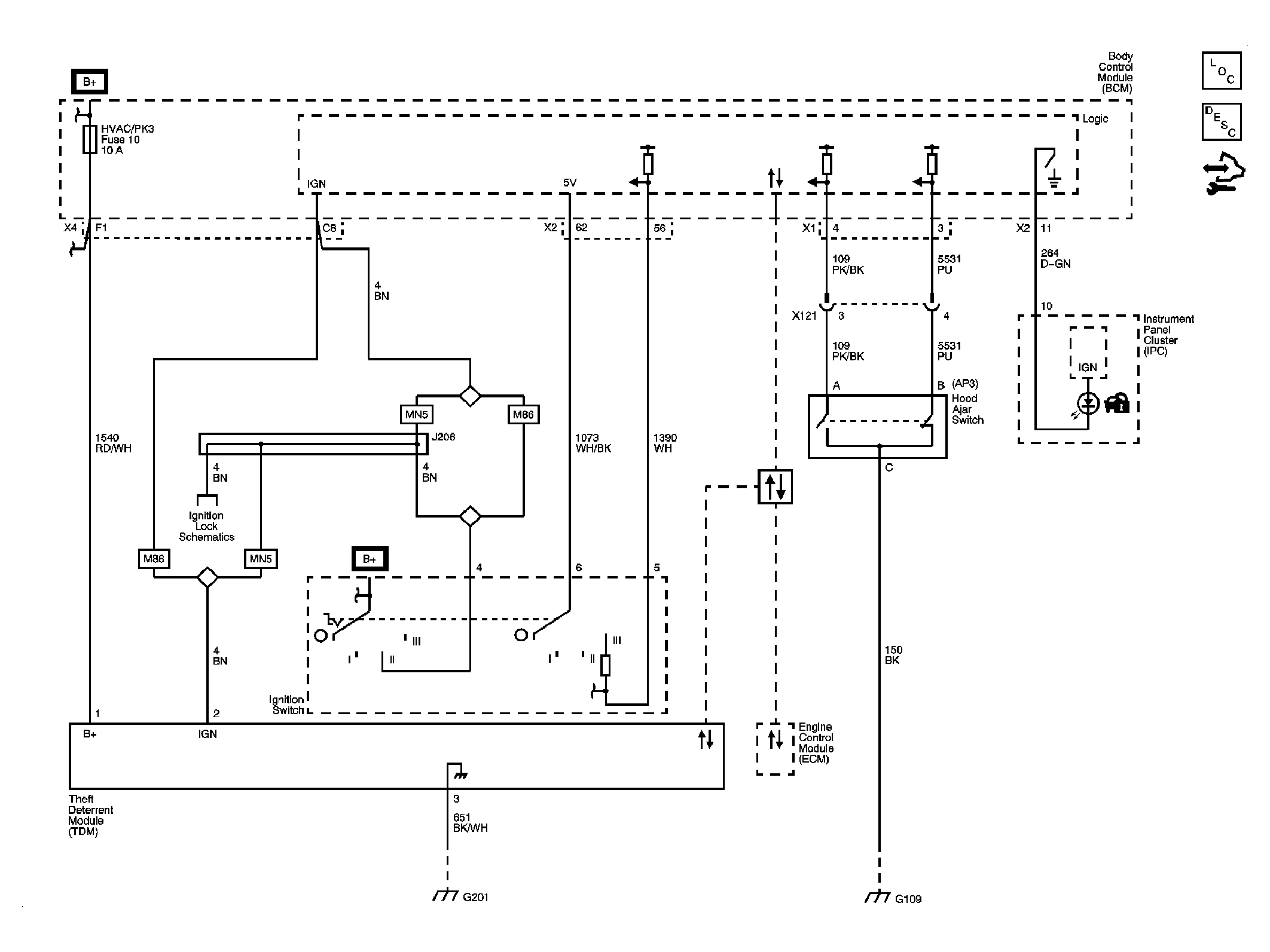

Fig 1: Vehicle Theft Deterrent Circuit Schematic

GM2085324

Courtesy of GENERAL MOTORS CORP.
