Data Communication Schematics

WARNING: This page is about a different car, the 2008 Chevrolet HHR. However, it is still accessible from the selected car via links, so may be relevant.

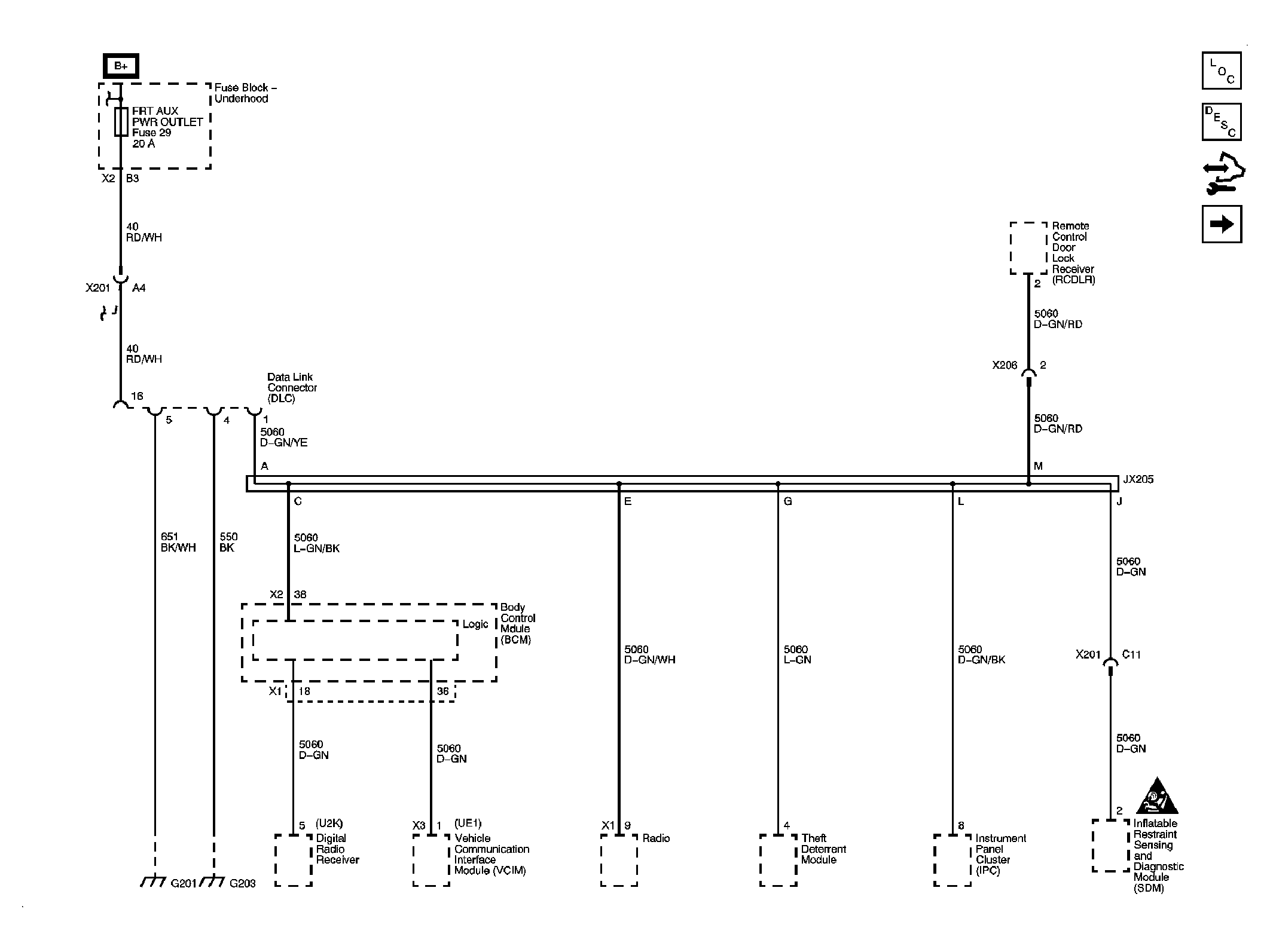

Fig 1: DLC Power, Ground And Low Speed GMLAN - Schematic
GM1887751Courtesy of GENERAL MOTORS CORP.

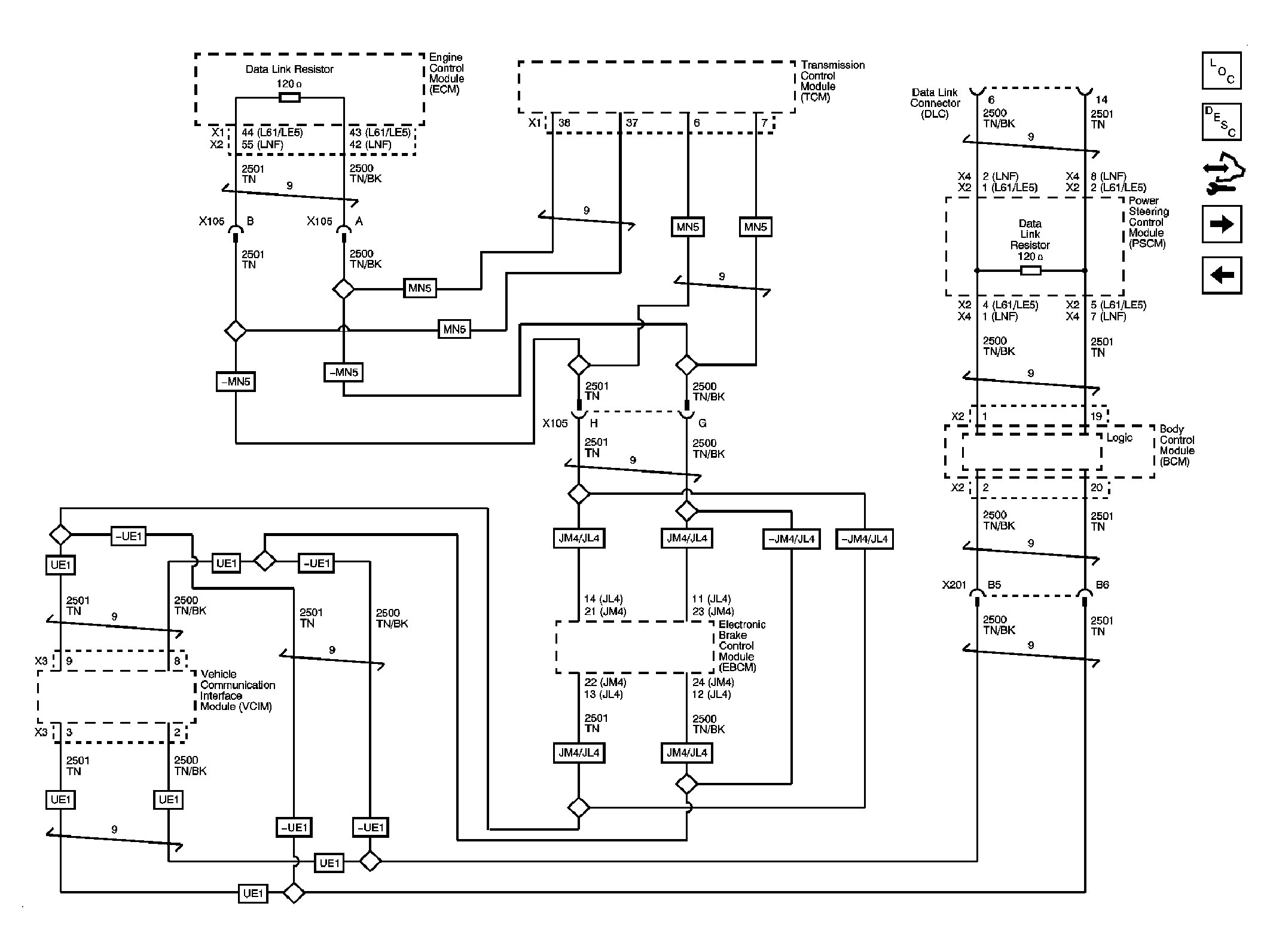

Fig 2: High Speed GMLAN - Schematic
GM1887753Courtesy of GENERAL MOTORS CORP.
