Installation Procedure

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2009 GMC Savana Special, 2009 GMC Savana Camper Special, 2009 GMC Savana, 2009 Chevrolet RV Cutaway, and 2009 Chevrolet Cutaway. However, it is still accessible from the selected car via links, so may be relevant.

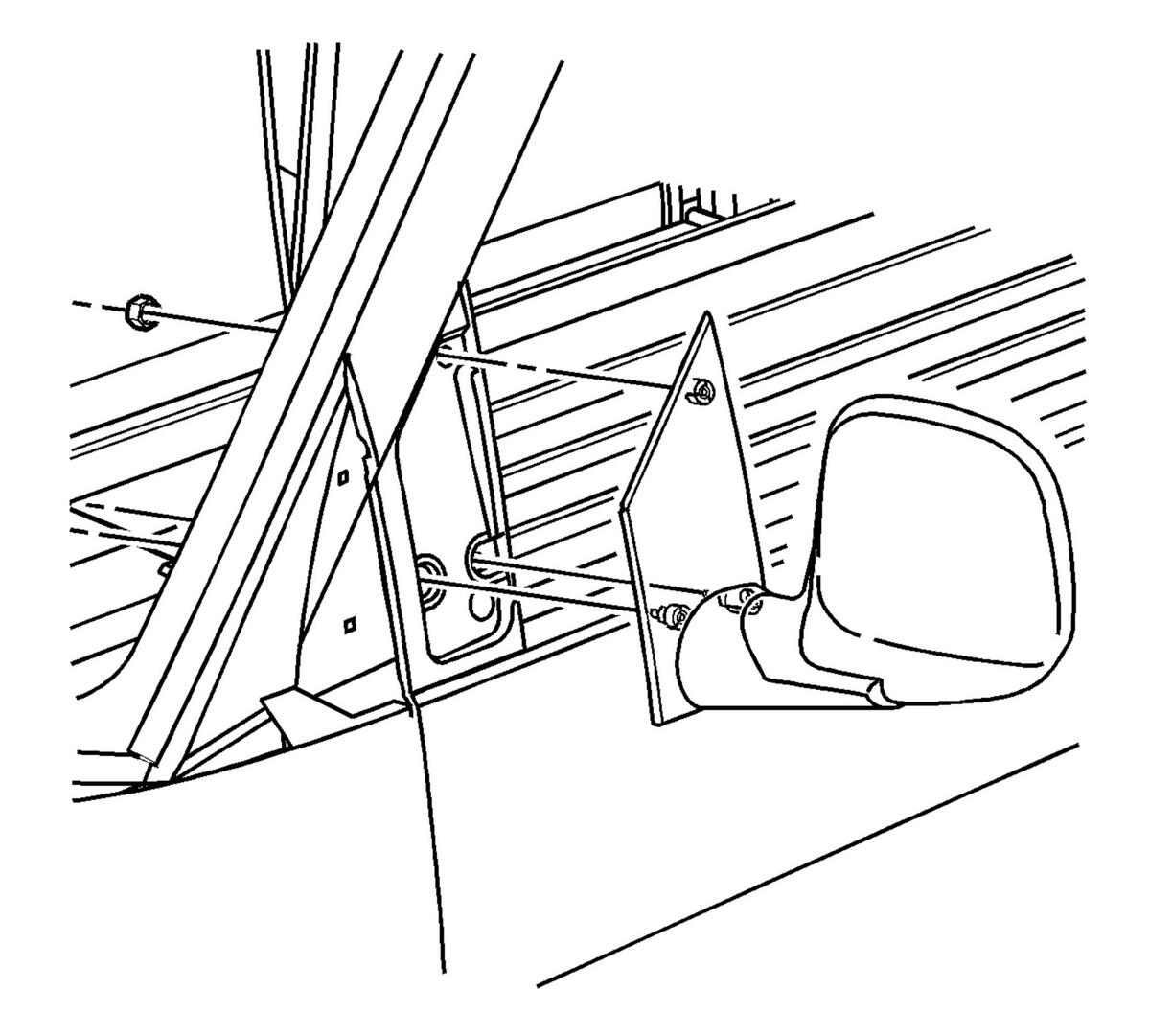

    Fig 1: Manual Mirror
    GM334021Courtesy of GENERAL MOTORS CORP.
  1. Install the rearview mirror to the door.
    2. CAUTION: Refer to Fastener Caution .
  2. Install the nuts in order to retain the rearview mirror to the door and tighten to 10 N.m (89 lb in).
  3. Install the front door front garnish molding. Refer to Front Side Door Front Garnish Molding Replacement .
