Installation Procedure

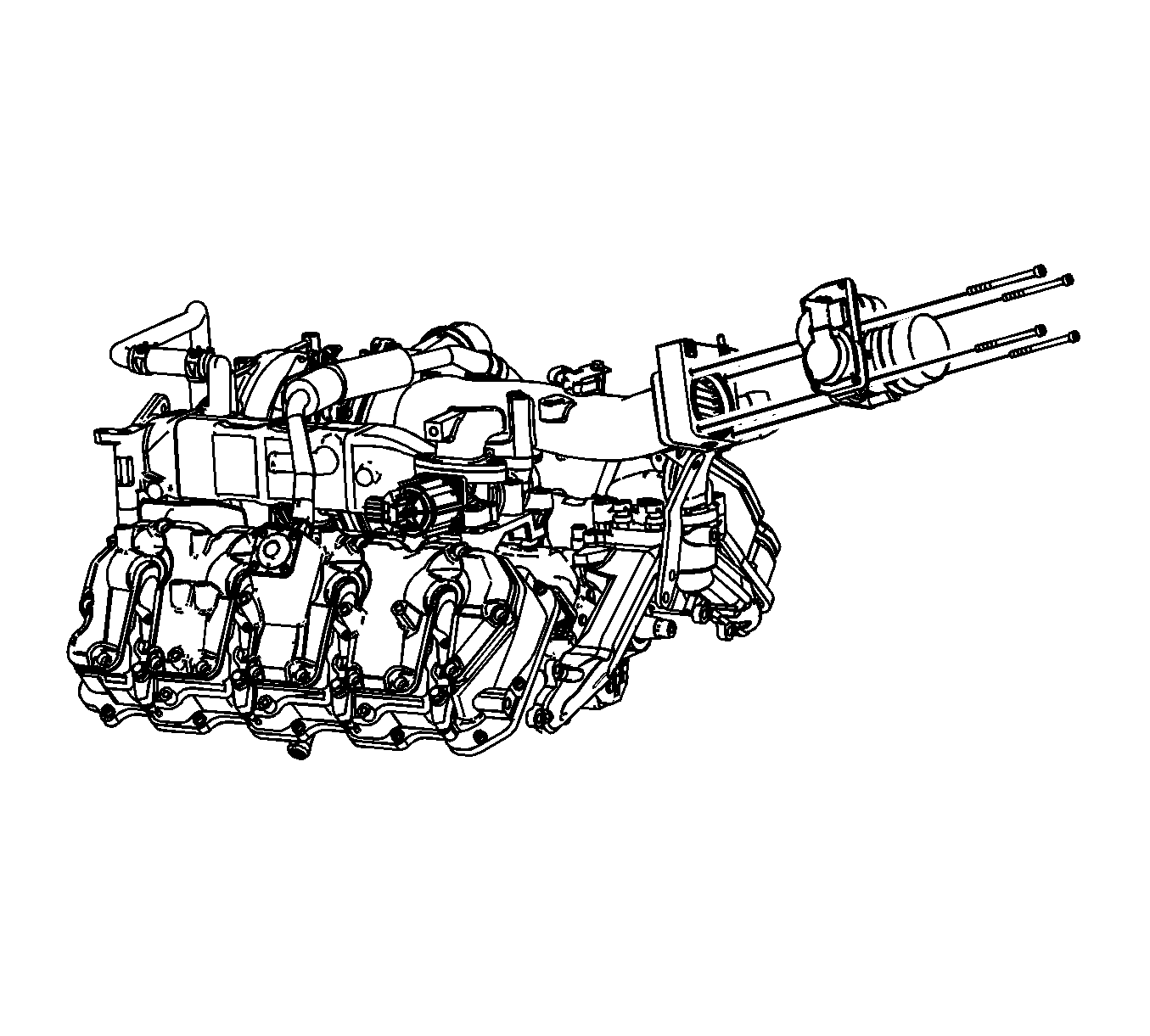

    Fig 1: Identifying Intake Air Valve Bolts
    GM1862033Courtesy of GENERAL MOTORS CORP.
    CAUTION: Refer to Fastener Caution .
  1. Position the intake air valve to the IAH and install the intake air valve bolts and tighten to 20 N.m (15 lb ft).

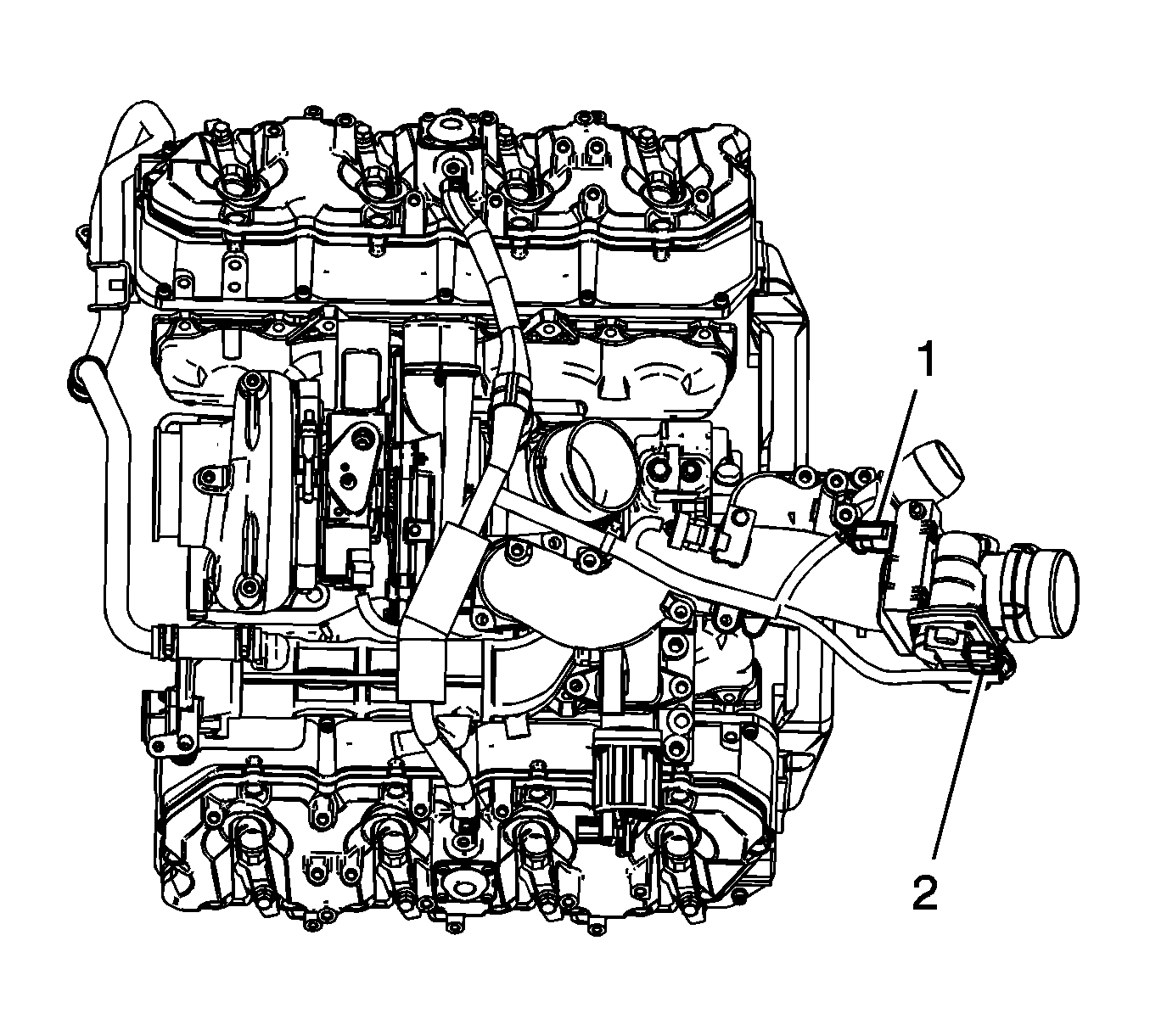

    2. Fig 2: View Of Engine Wiring Harness Electrical Connector
    GM1862030Courtesy of GENERAL MOTORS CORP.
  2. Connect the engine wiring harness electrical connector (2) to the intake air valve.
  3. Install the charge air cooler outlet pipe. Refer to Charged Air Cooler Hoses/Pipes Replacement (Inlet) or Charged Air Cooler Hoses/Pipes Replacement (Outlet) .
