Fuel Pump Replacement

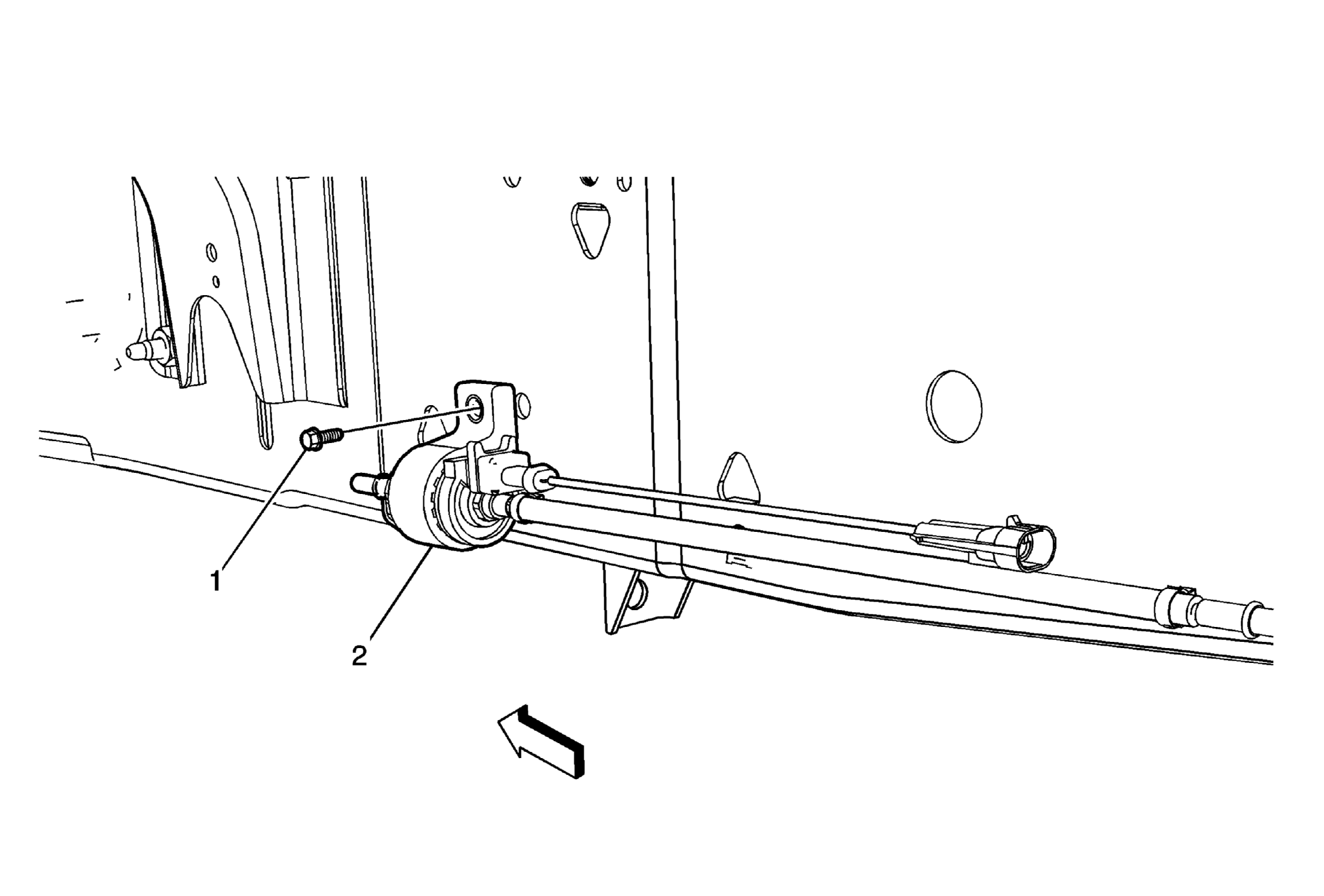

Fig 1: Fuel Pump Replacement

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedures Loosen the fuel cap in order to relieve the fuel system pressure. Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle . Disconnect the fuel lines. Refer to Metal Collar Quick Connect Fitting Service .
1	Fuel Pump Bolt CAUTION: Refer to Fastener Caution . Tighten: 22 N.m (16 lb ft)
2	Fuel Pump Procedure: Disconnect the electrical connector.

Callout

Component Name

Preliminary Procedures

Loosen the fuel cap in order to relieve the fuel system pressure.
Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle .
Disconnect the fuel lines. Refer to Metal Collar Quick Connect Fitting Service .

Fuel Pump Bolt

CAUTION: Refer to Fastener Caution .

Tighten: 22 N.m (16 lb ft)

Fuel Pump
Procedure:
Disconnect the electrical connector.
