Installation Procedure

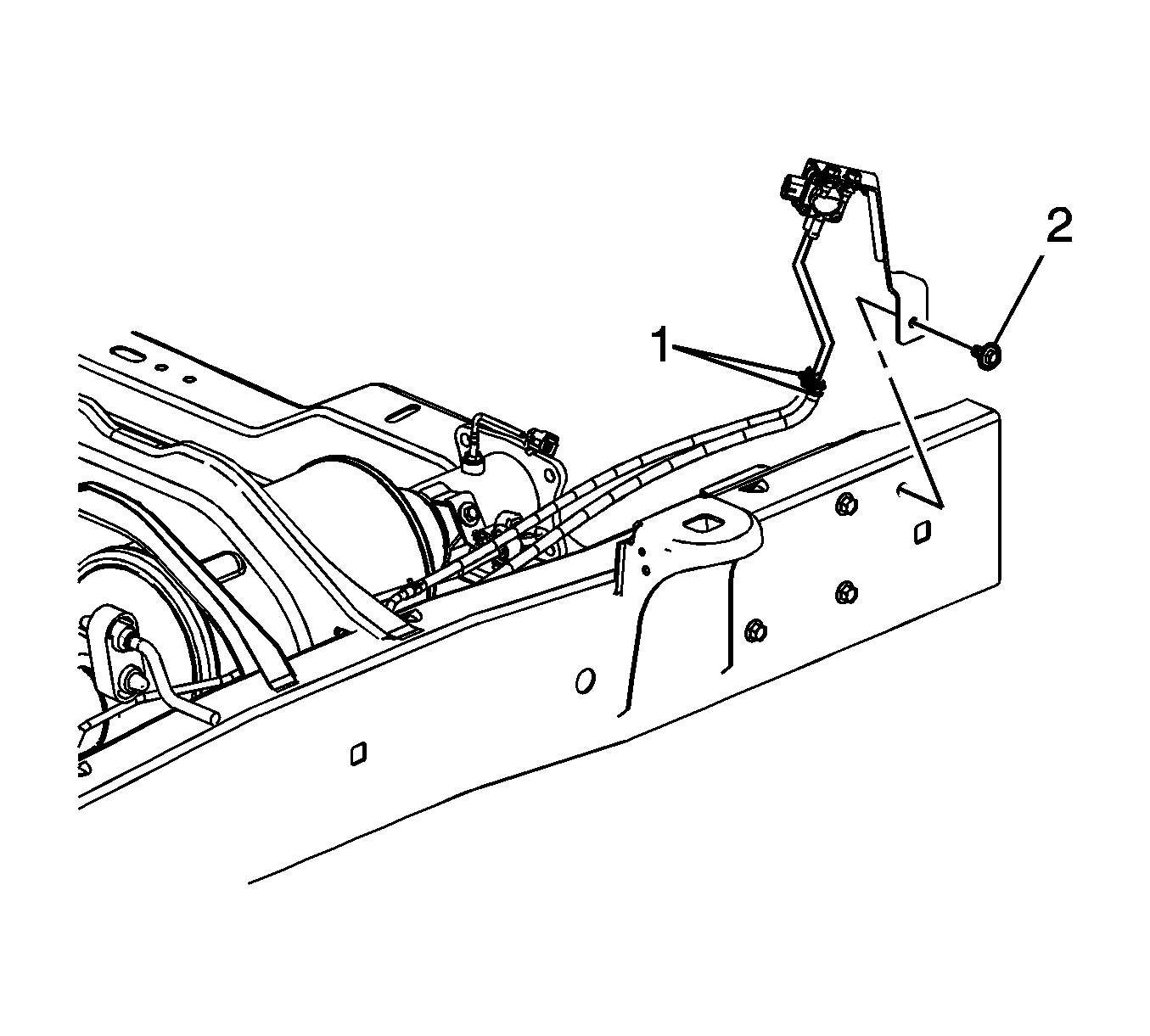

    Fig 1: Identifying Exhaust Differential Pressure Sensor
    GM1862637Courtesy of GENERAL MOTORS CORP.
  1. Position the exhaust differential pressure sensor to the frame.
    2. CAUTION: Refer to Fastener Caution .
  2. Install the exhaust differential pressure sensor bracket bolt (2) and tighten to 9 N.m (80 lb in).
  3. Install the exhaust differential pressure sensor pipe assembly hoses to the sensor.
  4. Position the exhaust differential pressure sensor pipe assembly hose clamps (1).

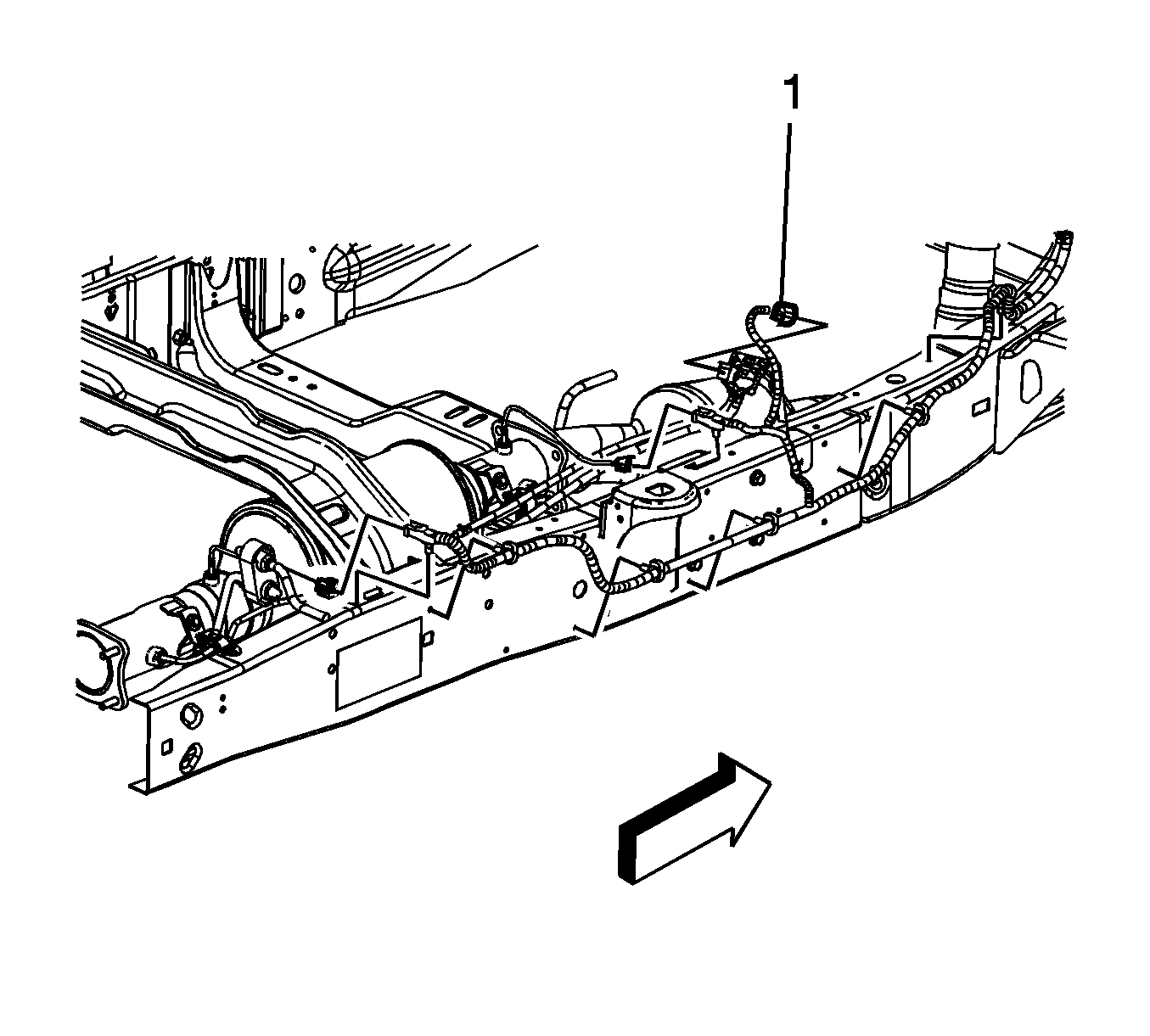

    5. Fig 2: Identifying Engine Wiring Harness Electrical Connector
    GM1862627Courtesy of GENERAL MOTORS CORP.
  5. Connect the engine wiring harness electrical connector (1) to the exhaust differential pressure sensor.
  6. Lower the vehicle.
