Air Intake Pipe Replacement

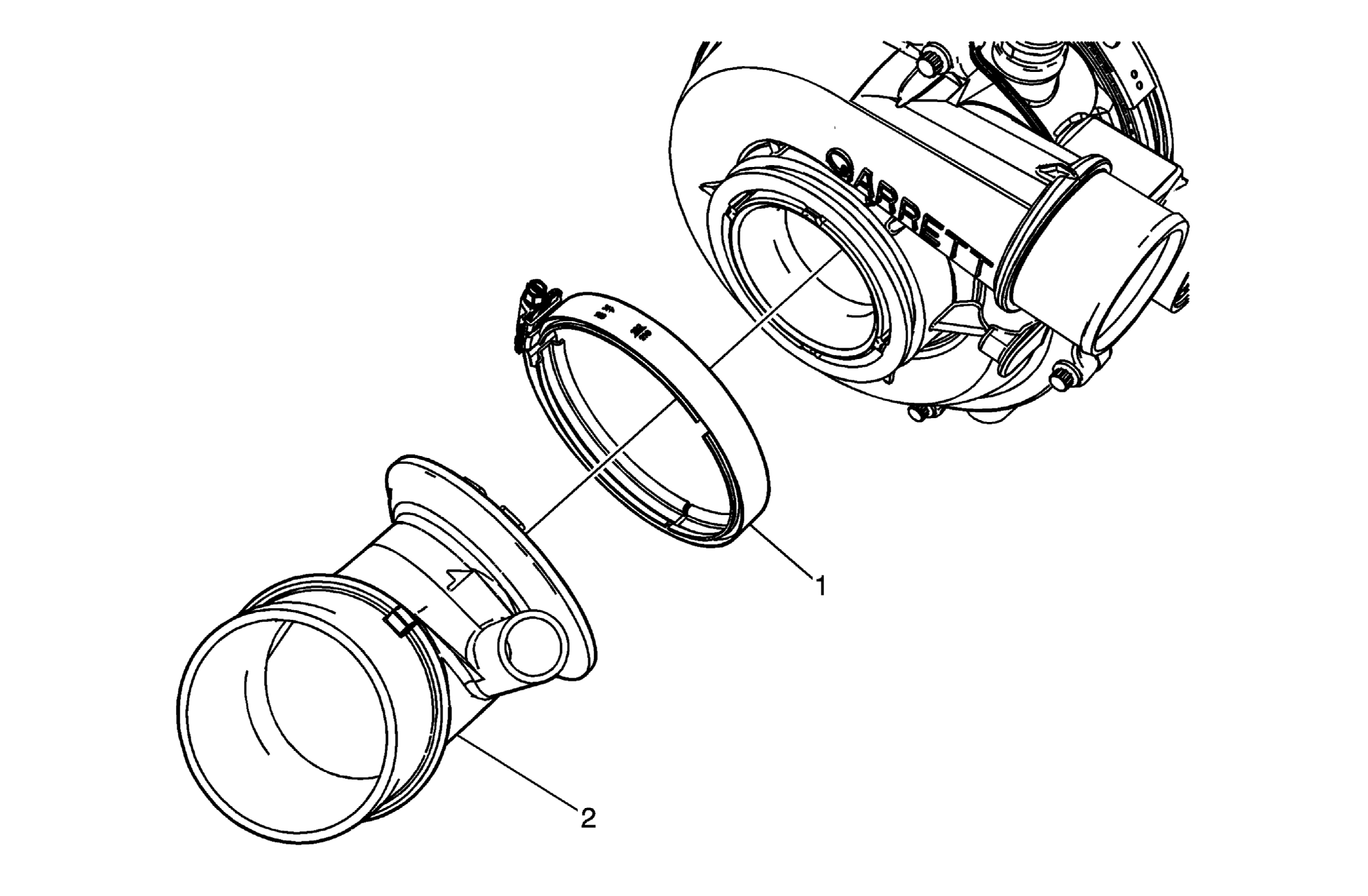

Fig 1: View Of Air Intake Pipe

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedures Remove the engine cover. Refer to Engine Cover Replacement . Remove the crankcase ventilation hose. Refer to Positive Crankcase Ventilation Hose/Pipe/Tube Replacement . Remove the air cleaner outlet duct. Refer to Air Cleaner Outlet Duct Replacement .
1	Air Intake Pipe Clamp CAUTION: Refer to Fastener Caution . Tighten: 4.6 N.m (41 lb in)
2	Air Intake Pipe Procedure: Align the air intake pipe to the turbocharger with the alignment notches during installation.

Callout

Component Name

Preliminary Procedures

Remove the engine cover. Refer to Engine Cover Replacement .
Remove the crankcase ventilation hose. Refer to Positive Crankcase Ventilation Hose/Pipe/Tube Replacement .
Remove the air cleaner outlet duct. Refer to Air Cleaner Outlet Duct Replacement .

Air Intake Pipe Clamp

CAUTION: Refer to Fastener Caution .

Tighten: 4.6 N.m (41 lb in)

Air Intake Pipe
Procedure:
Align the air intake pipe to the turbocharger with the alignment notches during installation.
