Installation Procedure

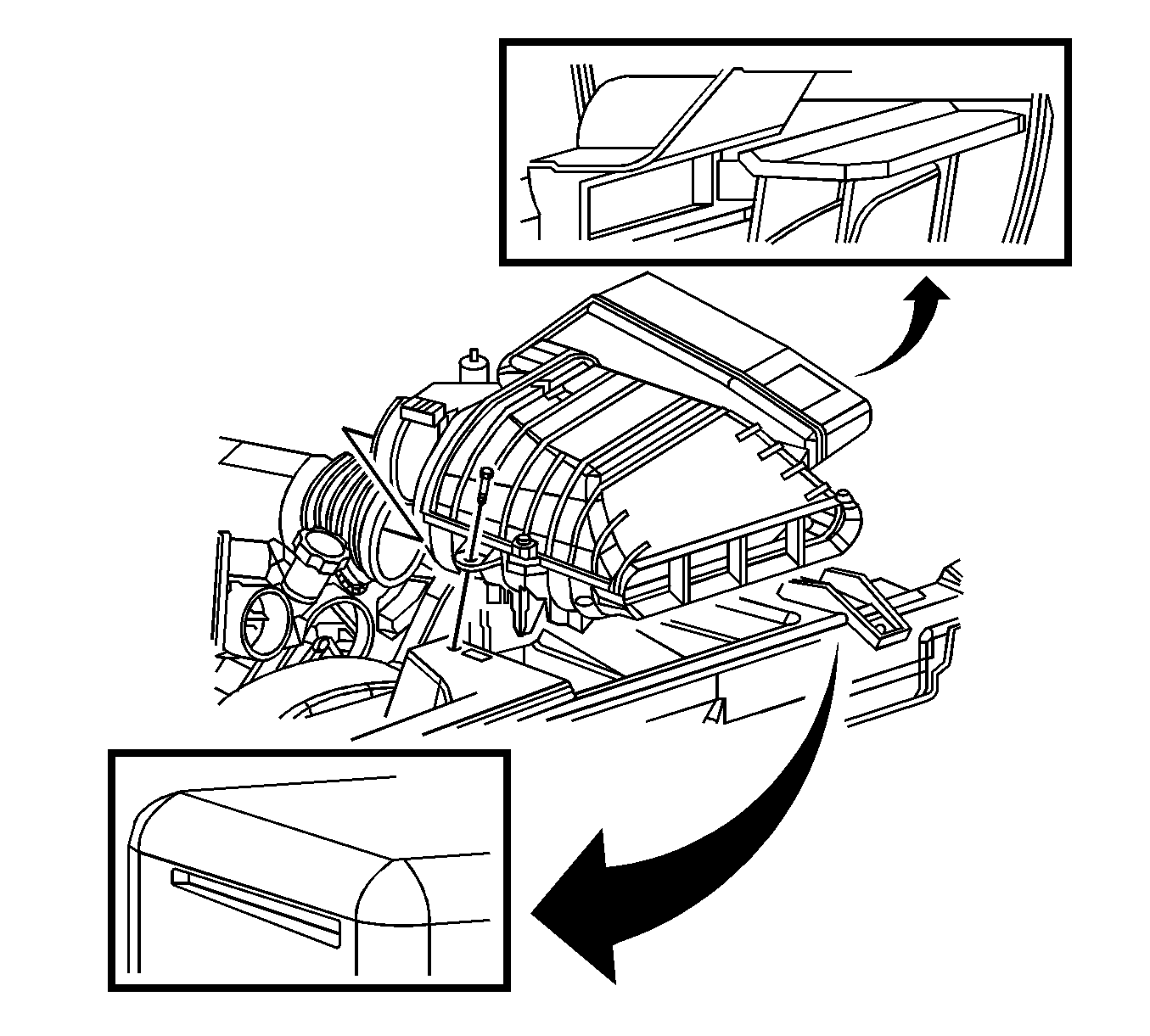

    Fig 1: View Of Air Cleaner Assembly
    GM1662672Courtesy of GENERAL MOTORS CORP.
  1. Install the air cleaner assembly.
    2. CAUTION: Refer to Fastener Caution .
  2. Tighten the air cleaner outlet duct hose clamp to 4 N.m (35 lb in).
  3. Install the air cleaner assembly hold down screw.
  4. Connect the MAF harness connector.
