Home >> Chevrolet >> 2009 >> Corvette Base, 2D Convertible, Standard >> Repair and Diagnosis >> Steering >> Power Steering System >> Repair Instructions >> Power Steering Pump Bracket Replacement (LS9) >> Removal Procedure

Removal Procedure

  1. Remove the power steering pump pulley. Refer to Power Steering Pump Pulley Replacement (LS3, LS7)  or Power Steering Pump Pulley Replacement (LS9) .
  2. Place drain pans under the vehicle as needed.
  3. Remove as much power steering fluid from the remote power steering fluid reservoir as possible.
    4. Fig 1: Identifying Power Steering Gear Inlet Hose
    GM2139374Courtesy of GENERAL MOTORS CORP.
  4. Disconnect the power steering gear inlet hose (1) from the power steering pump.
    5. Fig 2: Identifying Power Steering Fluid Reservoir Inlet Hose
    GM2137344Courtesy of GENERAL MOTORS CORP.
  5. Compress the power steering fluid reservoir inlet hose clamp (1).
  6. Disconnect the power steering fluid reservoir inlet hose (2) from the power steering pump.

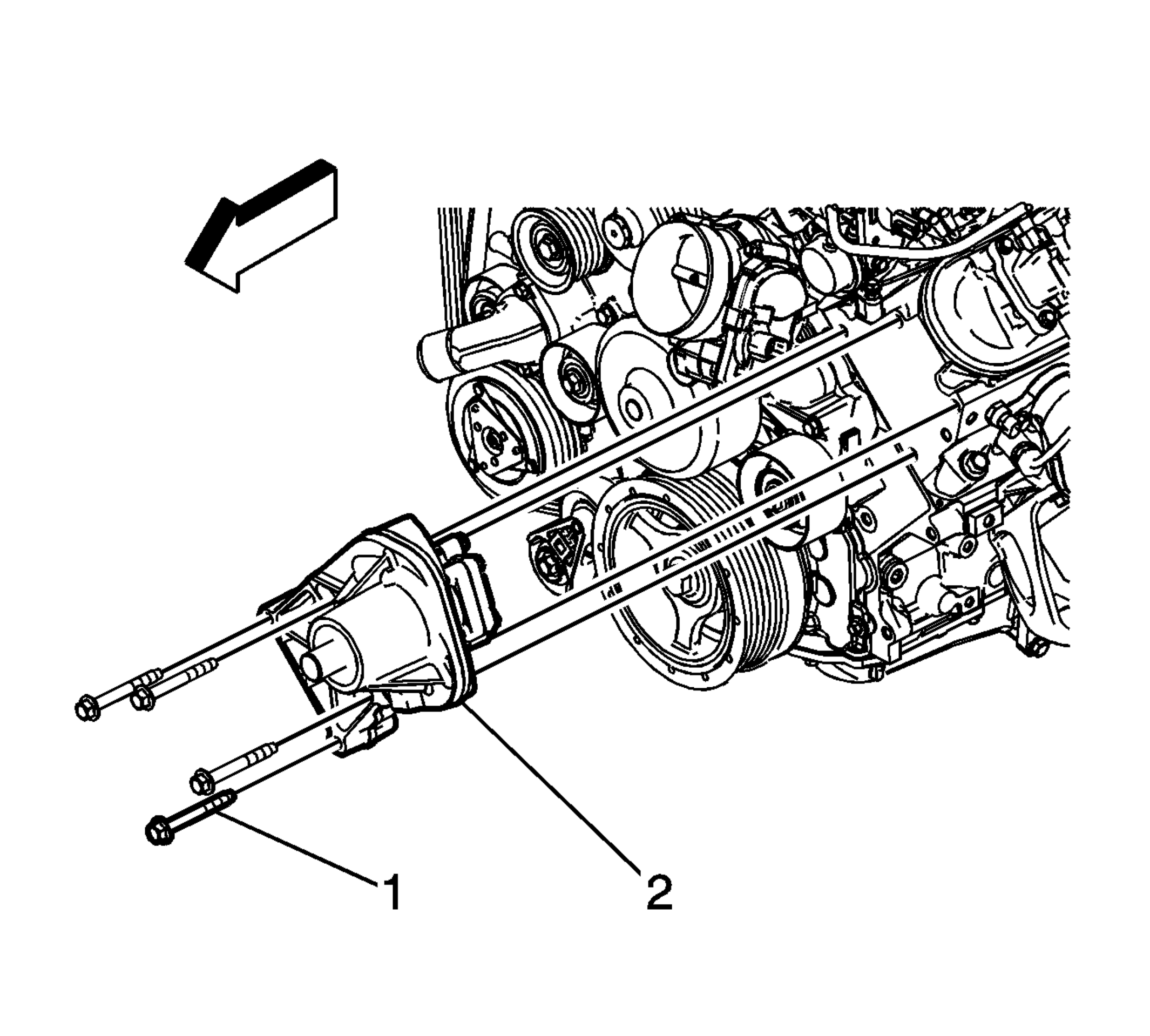

    7. Fig 3: View Of Power Steering Pump
    GM2146237Courtesy of GENERAL MOTORS CORP.
  7. Remove the power steering pump bracket bolts (1).
  8. Remove the power steering pump bracket (2).
  9. Transfer the power steering pump if necessary. Refer to Power Steering Pump Replacement (LS3, LS7)  or Power Steering Pump Replacement (LS9) .
