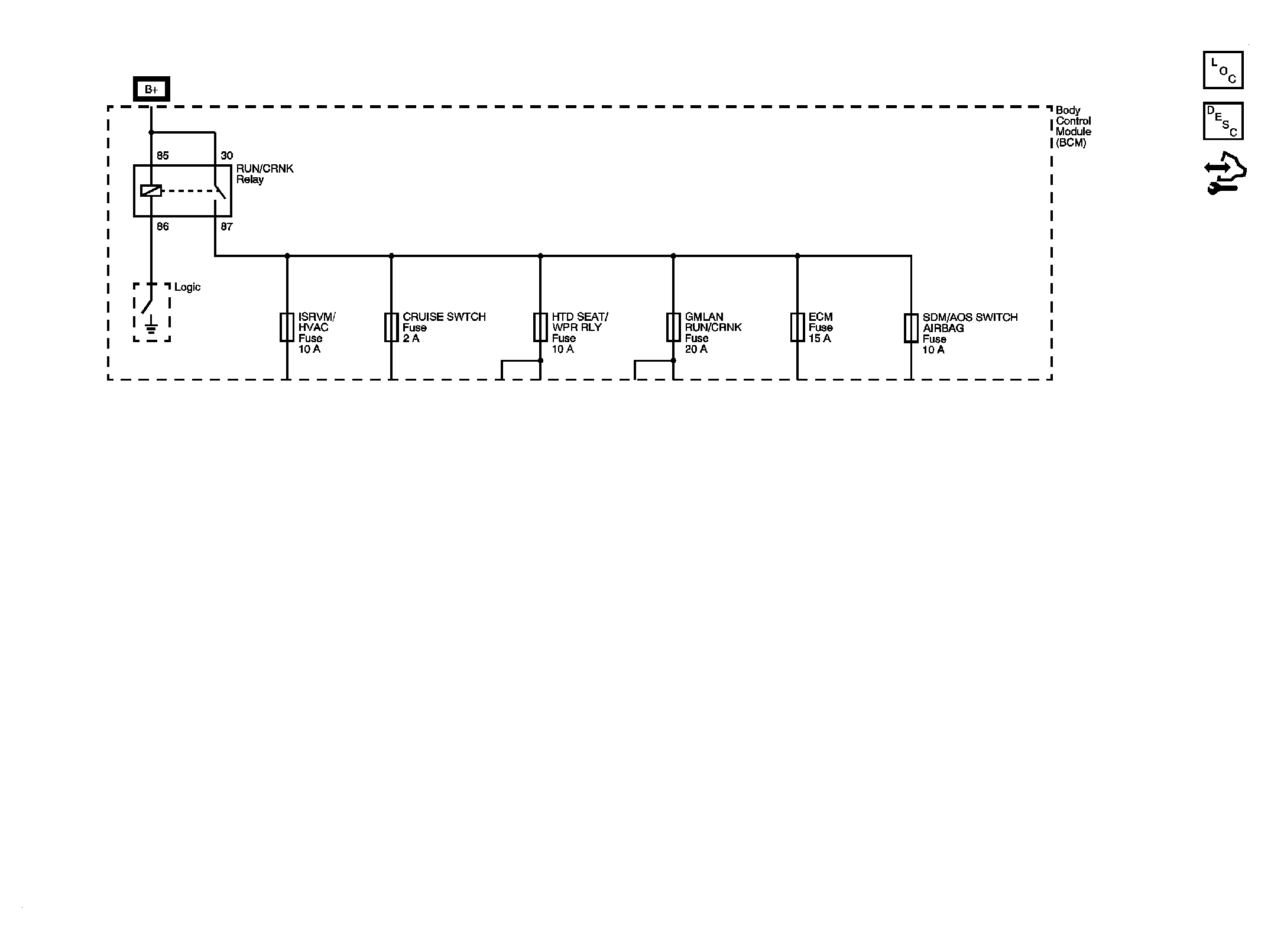

Home >> Chevrolet >> 2009 >> Corvette Base, 2D Convertible, Standard >> Repair and Diagnosis >> Electrical >> Body Electrical >> Wiring Systems And Power Management - Introduction >> Schematic and Routing Diagrams >> Power Moding Schematics
