Column Lock Schematics

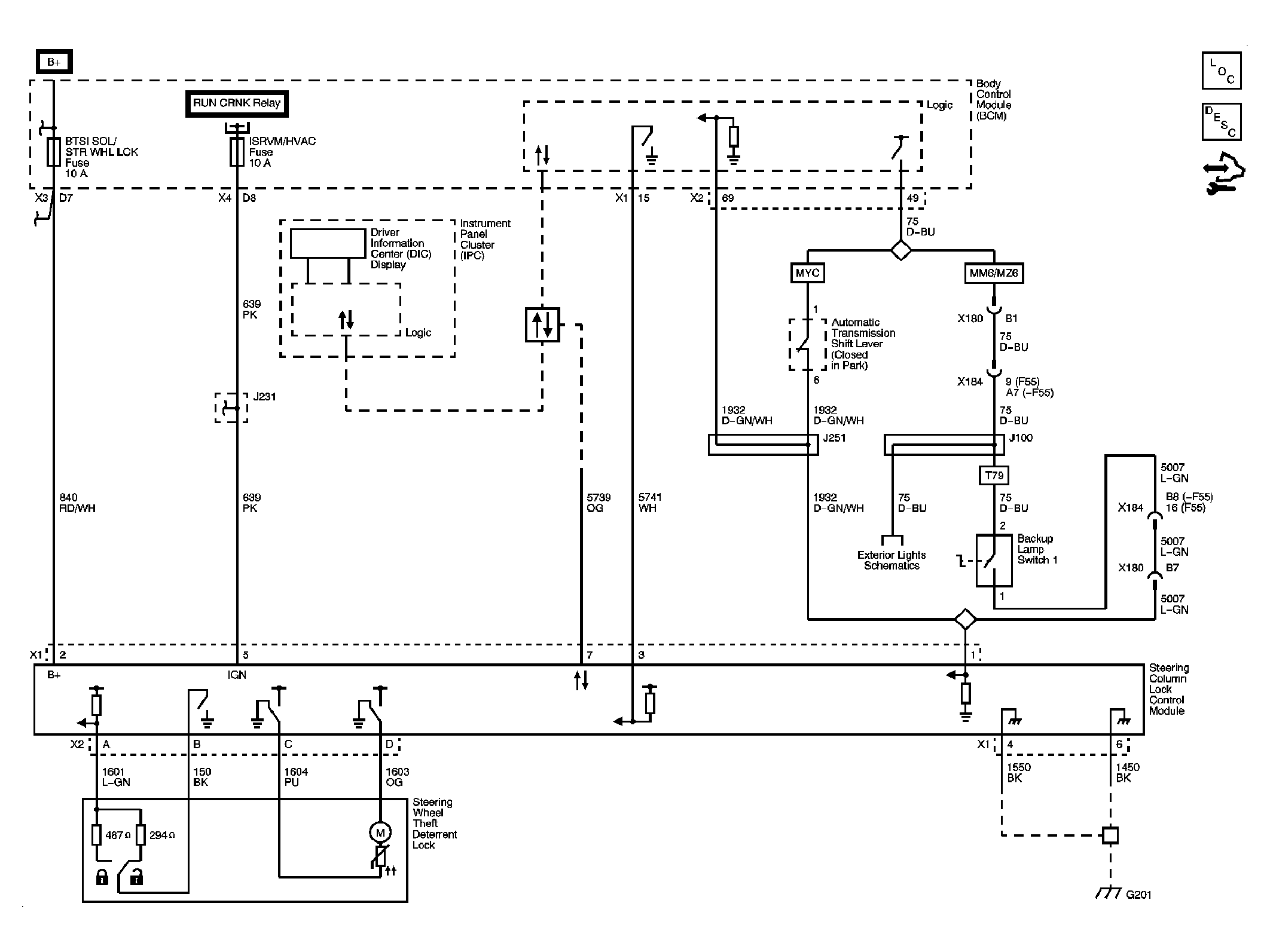

Fig 1: Column Lock Circuit Schematic

GM2054038

Courtesy of GENERAL MOTORS CORP.
