Engine Controls Schematics

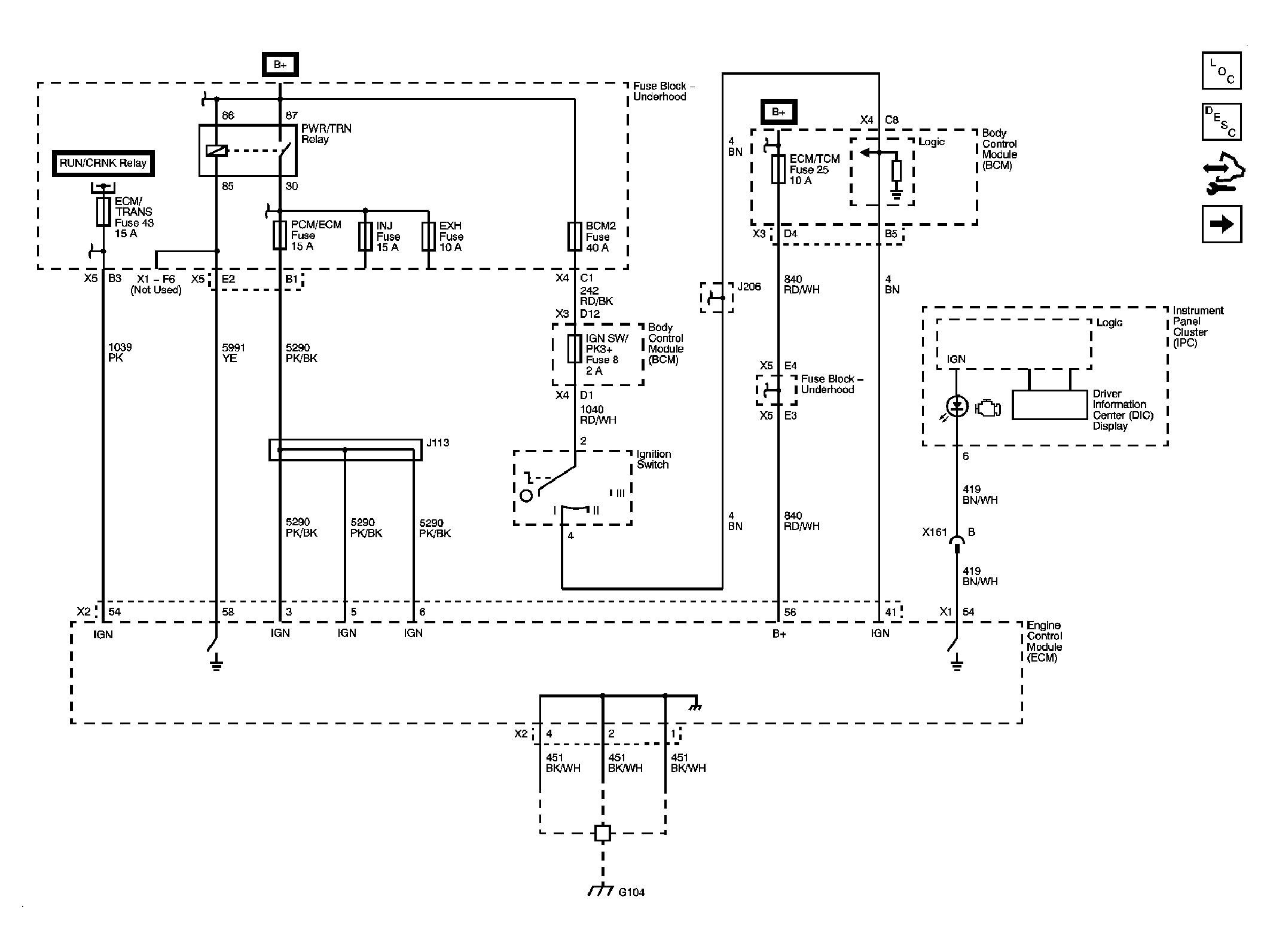

Fig 1: Power, Ground, MIL, Communication Schematic
GM2077390Courtesy of GENERAL MOTORS CORP.

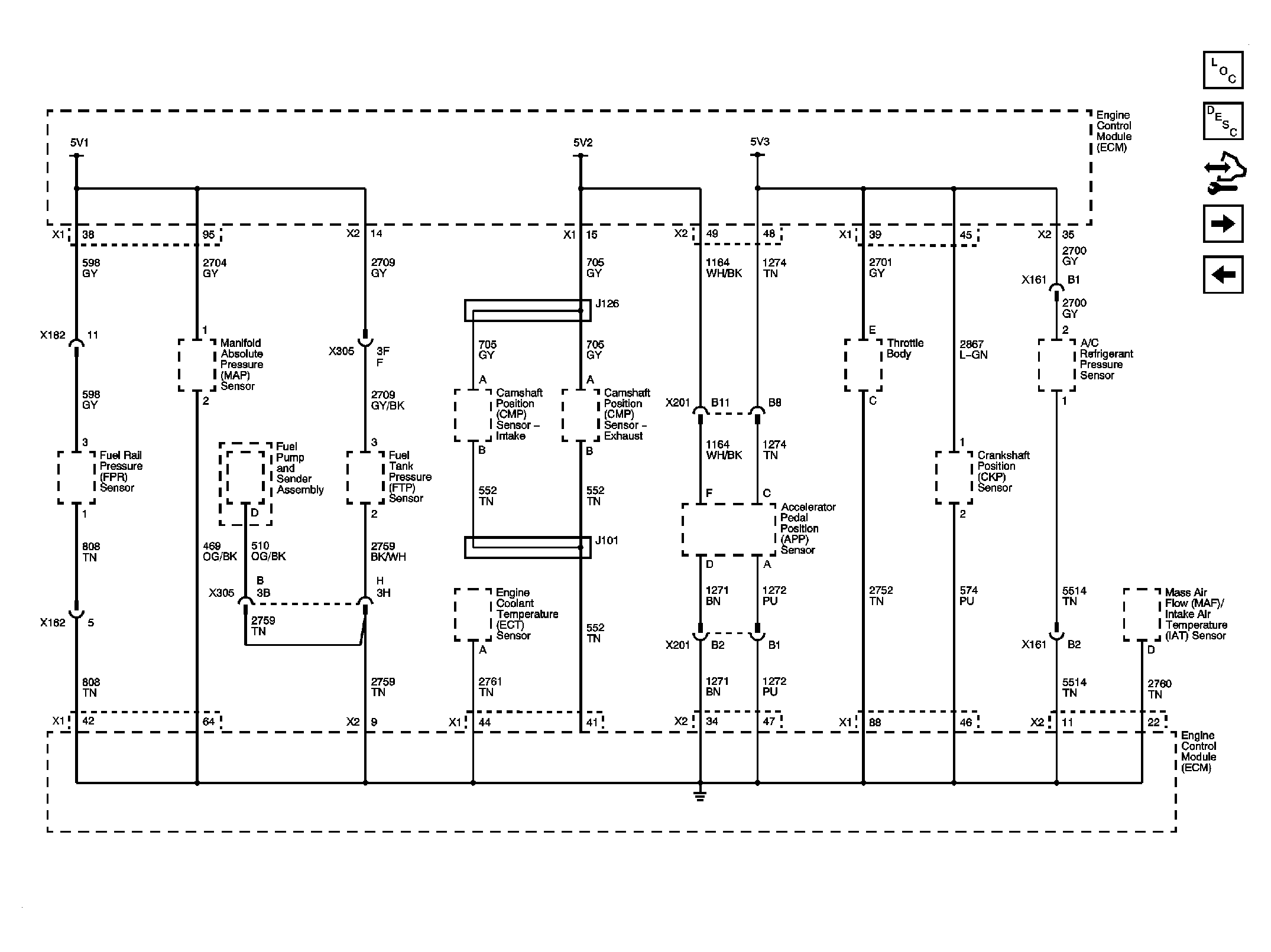

Fig 2: 5-Volt and Low Reference Bussing Schematic
GM2077391Courtesy of GENERAL MOTORS CORP.

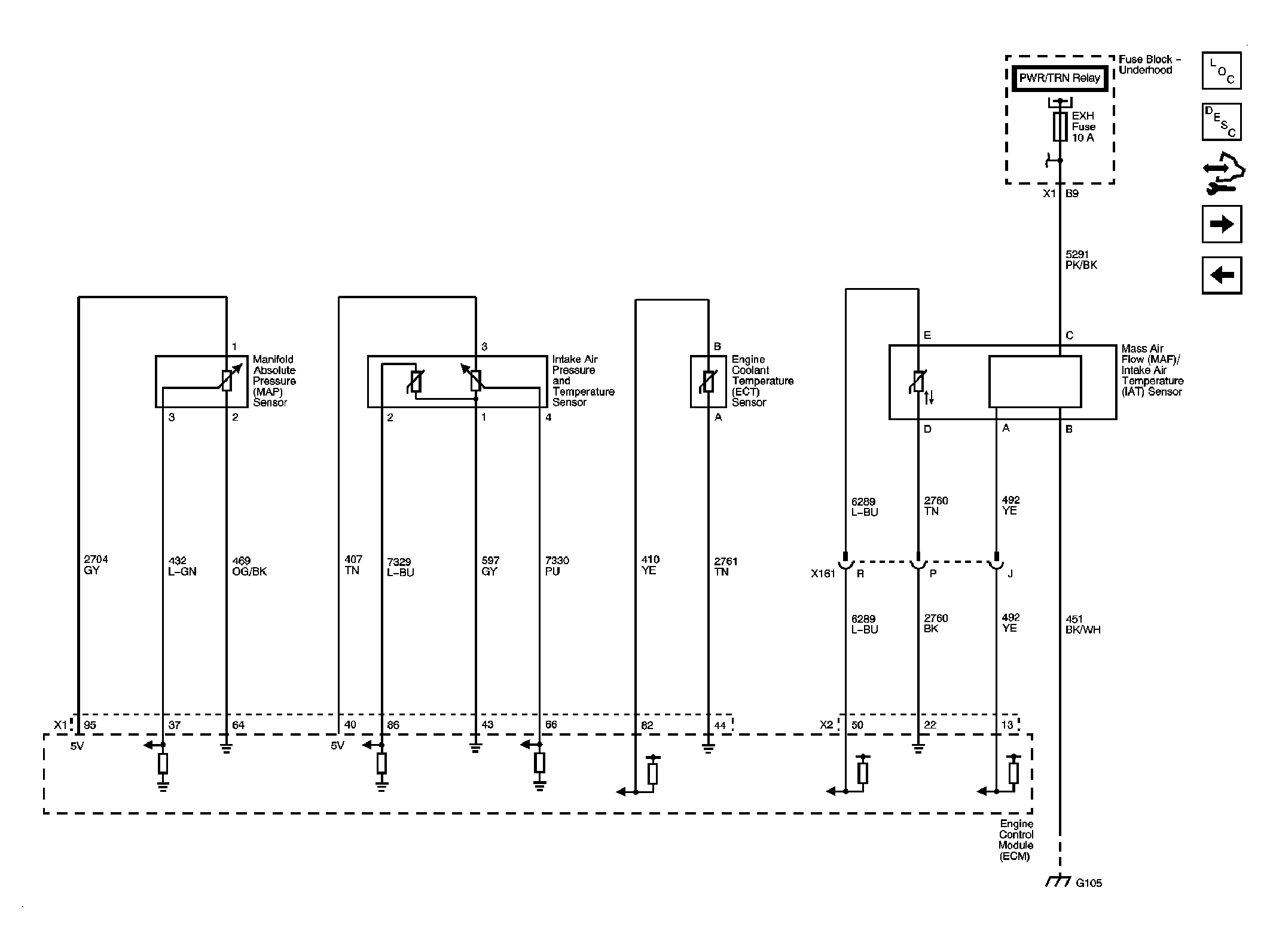

Fig 3: Engine Data Sensors - Pressure, Temperature Schematic
GM2077392Courtesy of GENERAL MOTORS CORP.
Fig 4: Engine Data Sensors - MAF/IAT, CKP, KS, CMP, VSS Schematic
GM2077393Courtesy of GENERAL MOTORS CORP.
Fig 5: Engine Data Sensors - Heated Oxygen Sensors (HO2S) Schematic
GM2077394Courtesy of GENERAL MOTORS CORP.
Fig 6: Engine Data Sensors - APP, TAC Schematic
GM2077396Courtesy of GENERAL MOTORS CORP.

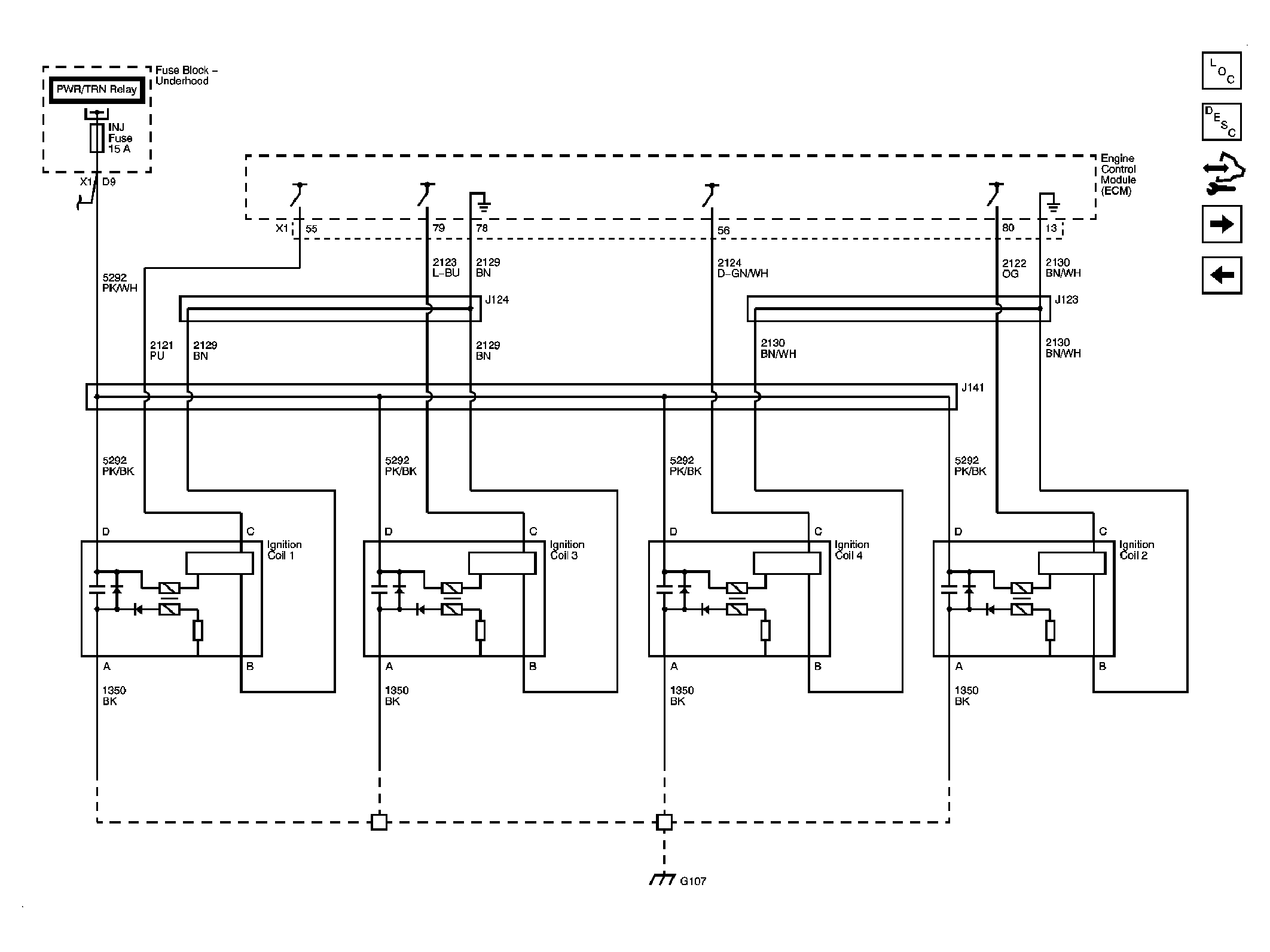

Fig 7: Ignition Controls - Ignition System Schematic
GM2077397Courtesy of GENERAL MOTORS CORP.

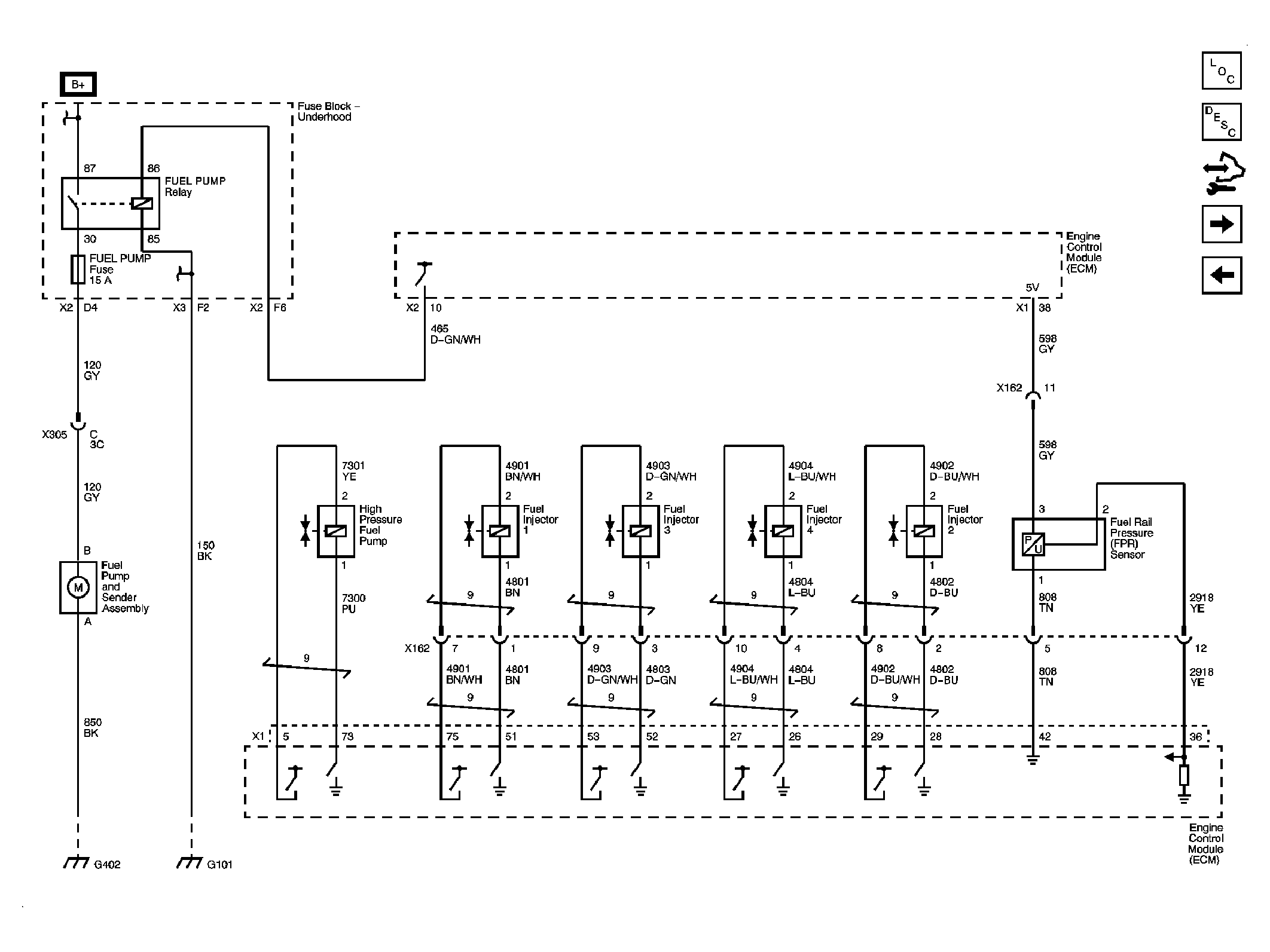

Fig 8: Fuel Delivery Schematic
GM2077398Courtesy of GENERAL MOTORS CORP.
Fig 9: Engine Data Sensors - EVAP, Aftercooler Pump, Supercharger Control Schematic
GM2077399Courtesy of GENERAL MOTORS CORP.

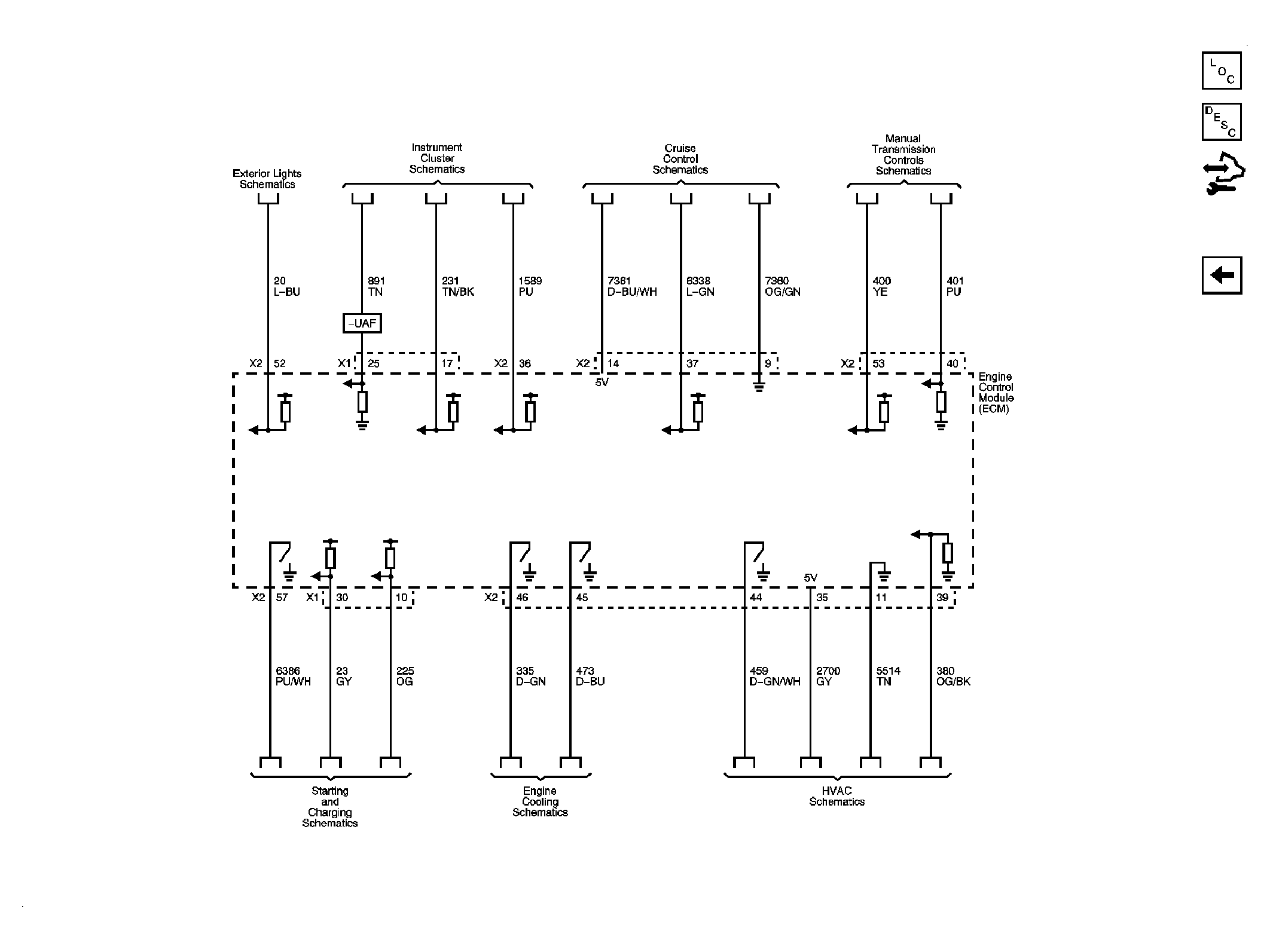

Fig 10: Controlled/Monitored Subsystem References Schematic
GM2077400Courtesy of GENERAL MOTORS CORP.
