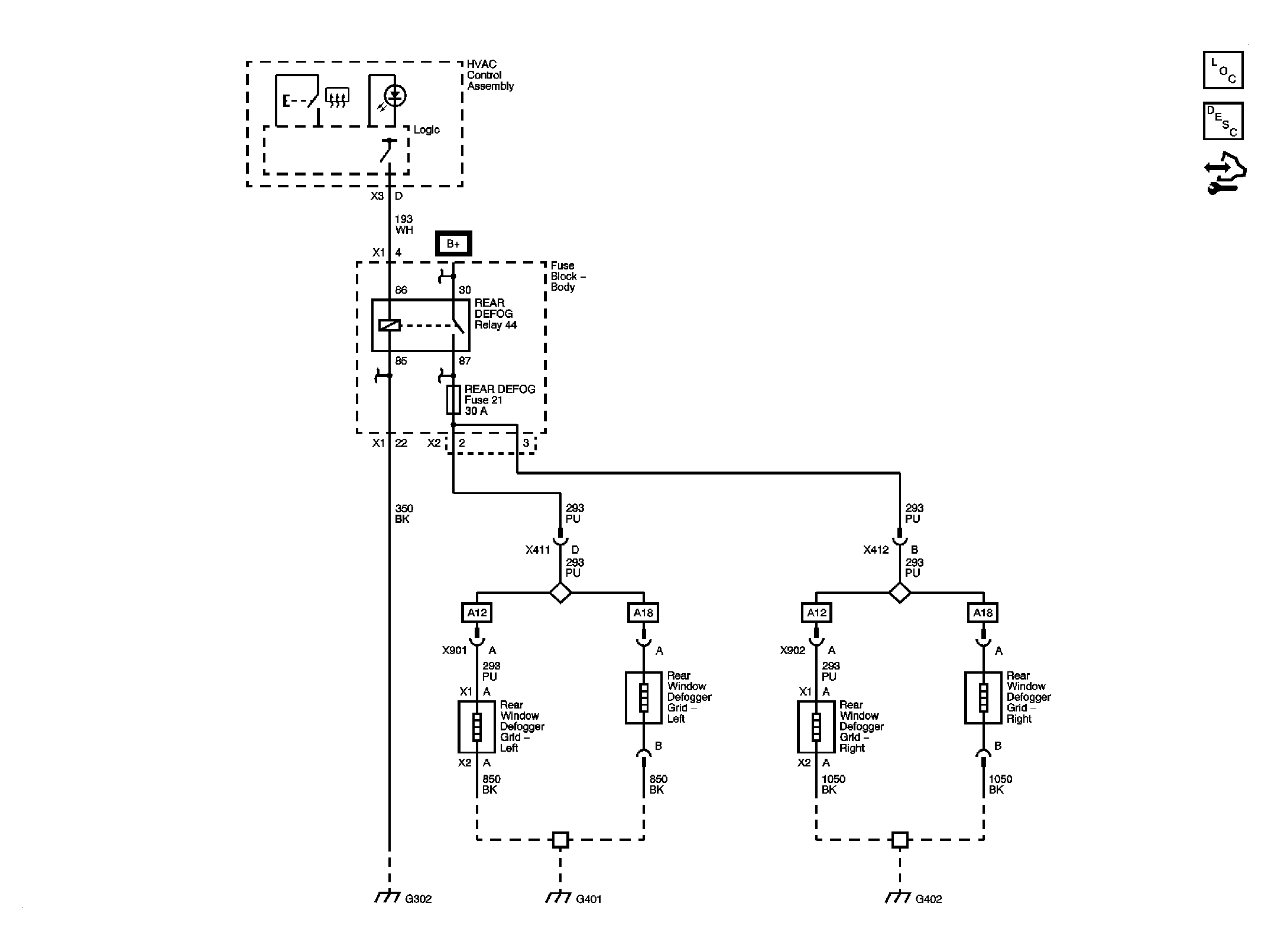

Home >> Chevrolet >> 2009 >> Chevy Express G2500, Van Cargo Extended, 6.0 K >> Repair and Diagnosis >> Body & Frame >> Windows >> Fixed & MOVEABLE Window System >> Schematic and Routing Diagrams >> Defogger Schematics
