Installation Procedure

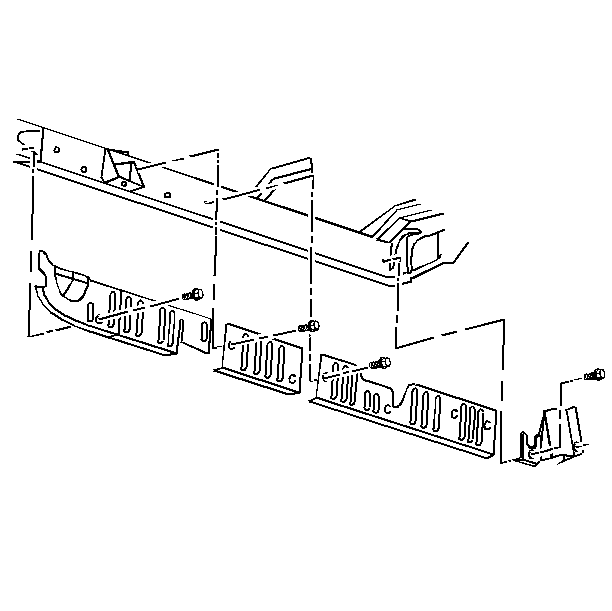

    Fig 1: View Of Bolts Retaining Heat Shield
    GM72787Courtesy of GENERAL MOTORS CORP.
  1. Install the heat shield to the frame rail.
    2. CAUTION: Refer to Fastener Caution .
  2. Install the heat shield bolts and tighten to 12 N.m (106 lb in).
  3. Install the exhaust system, if necessary.
  4. Lower the vehicle.
