Electrical Component Locator: Miscellaneous
MISCELLANEOUS LOCATION
| Component | Location |
|---|---|
| Battery | Left side of engine compartment. See Figure. |

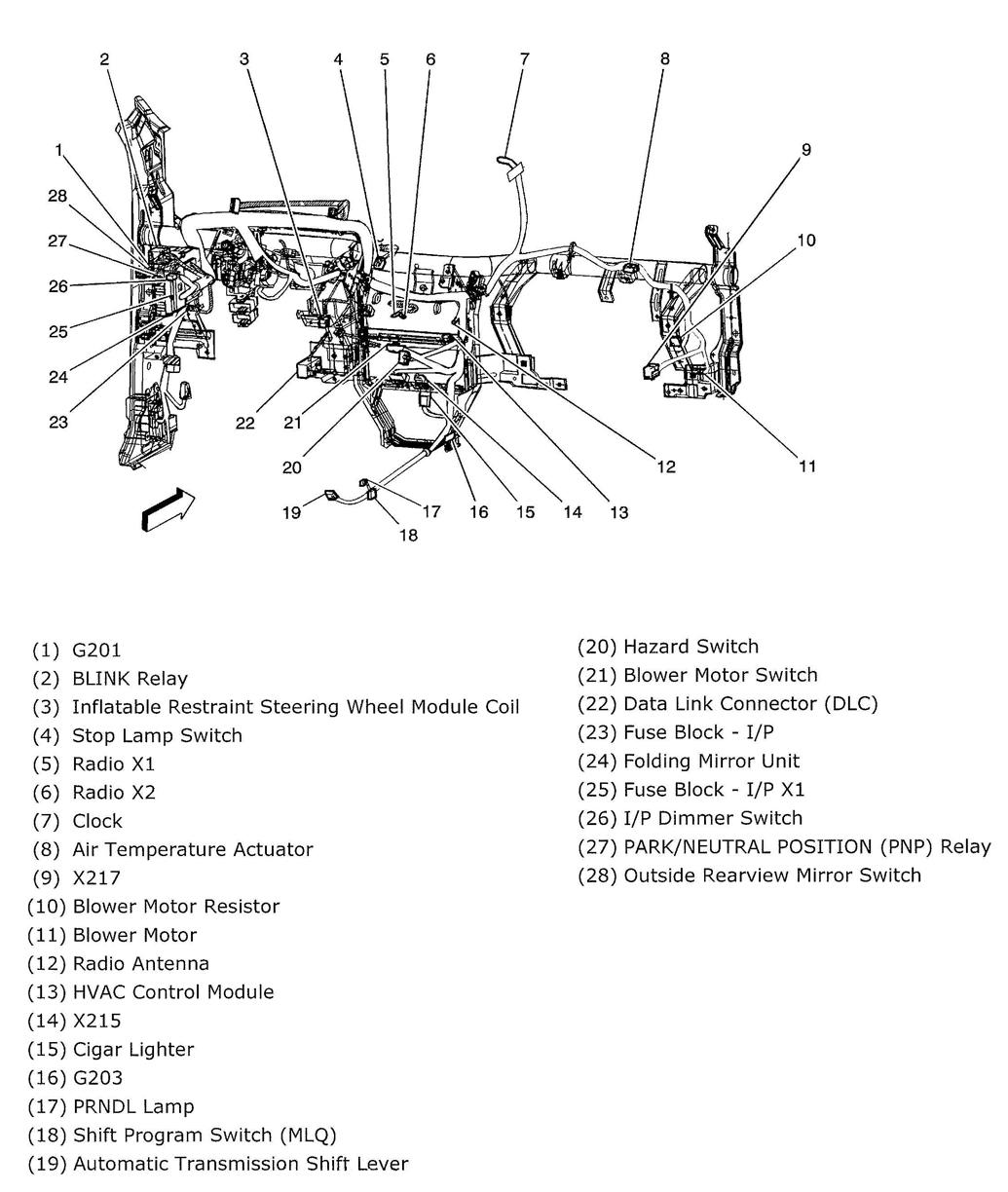

| Blower Motor Resistor | Behind right side of dash. See Figure. |
| Contact Coil | Under left side of dash. See Figure. |
| Data Link Connector (DLC) | Below left side of dash, right of steering column. See Figure. |
| Diode (Fog) | Underhood fuse block. See Figure. |

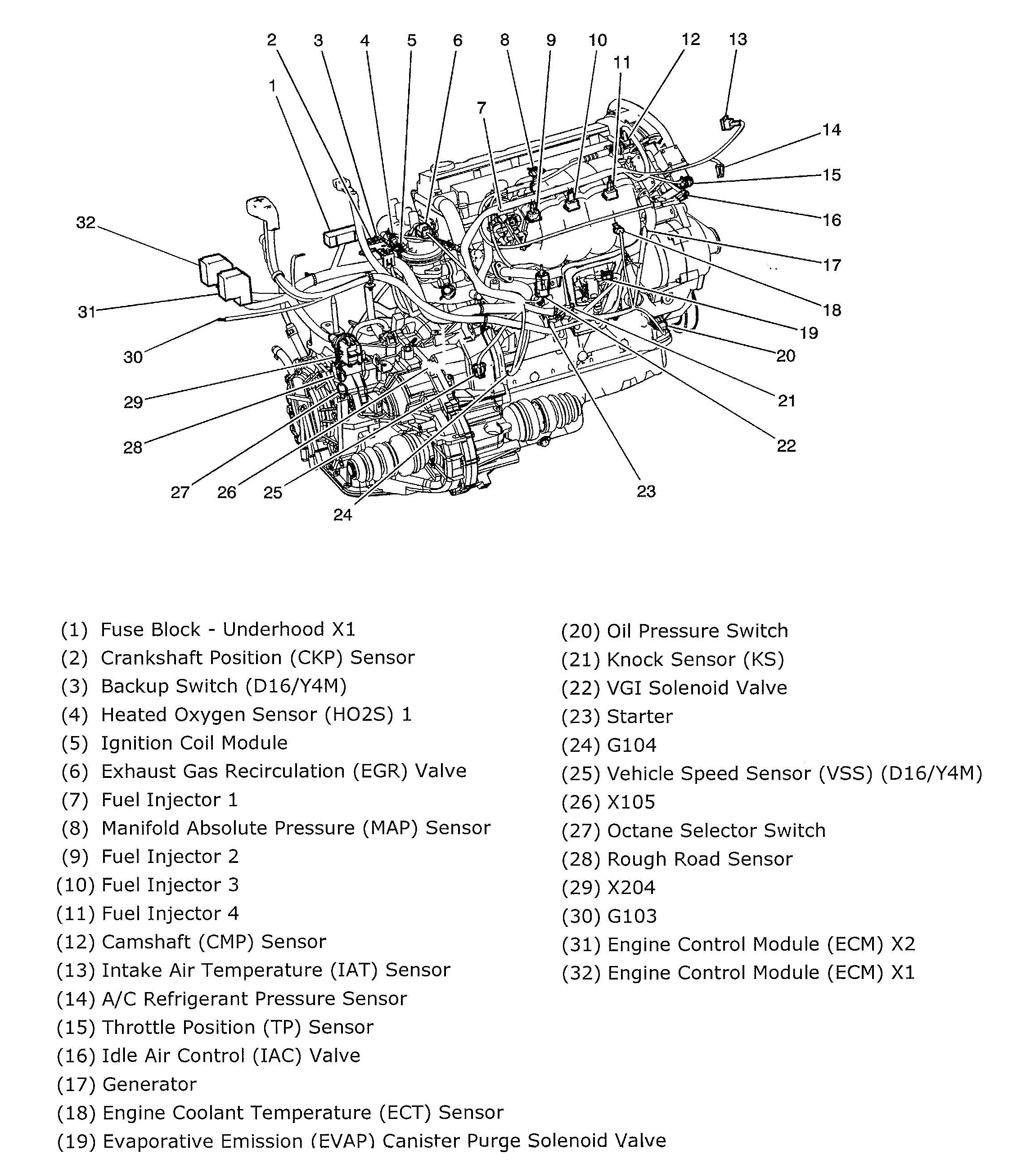

| Generator | Lower right front of engine. See Figure. |

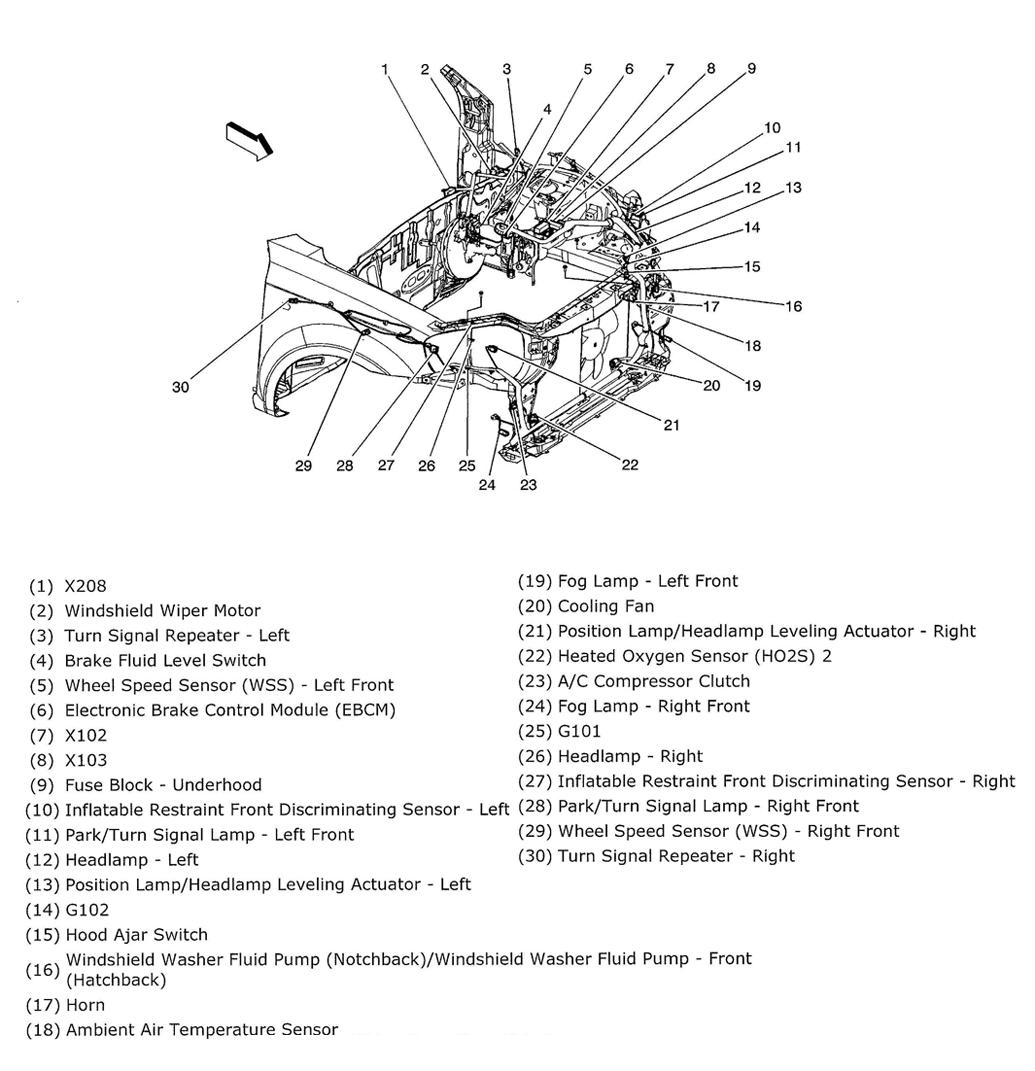

| Horn | Right side, behind grill. See Figure. |

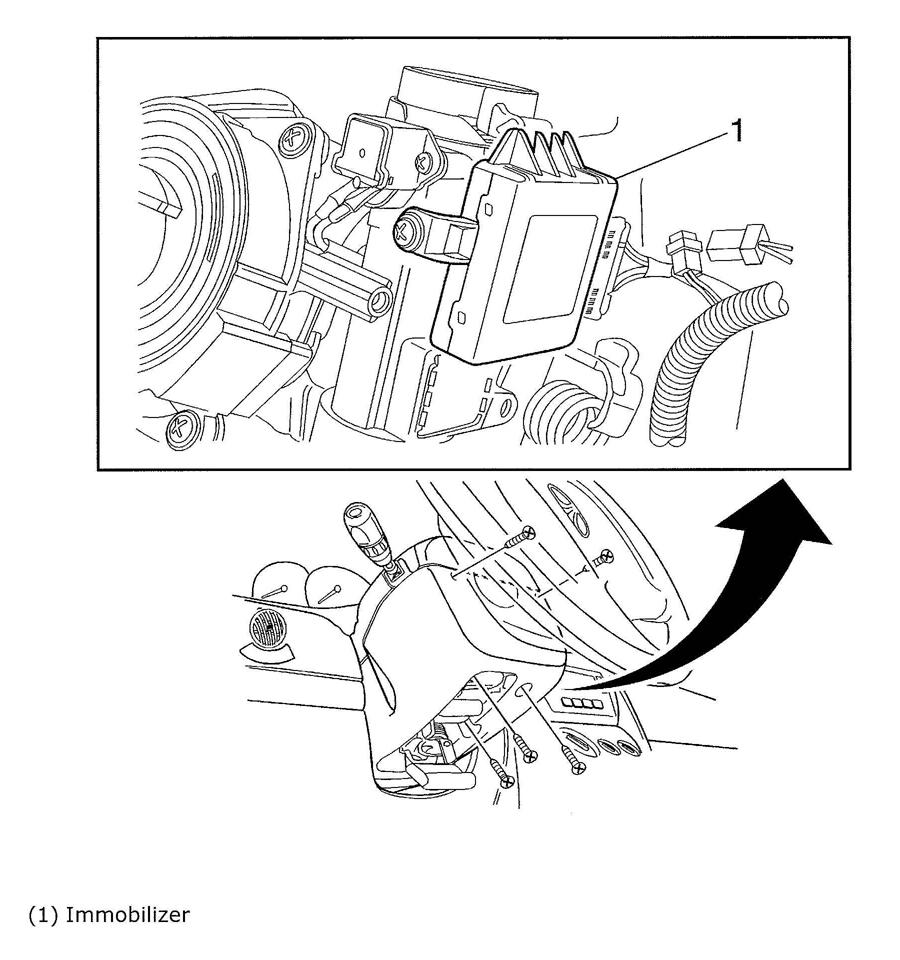

| Immobilizer | Base of steering column. See Figure. |
| Inflatable Restraint I/P Module | Right side of dash. See Figure. |

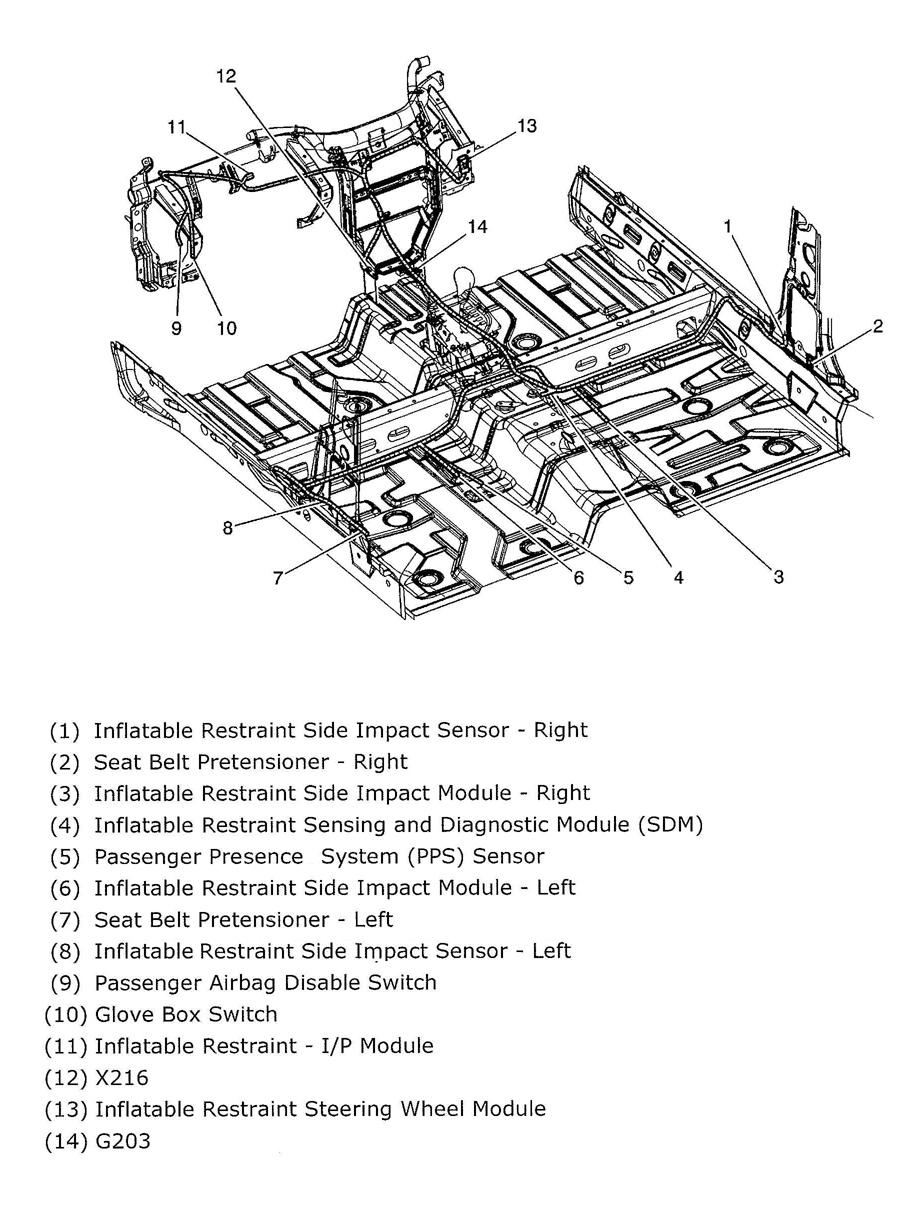

| Inflatable Restraint Side Impact Module (Left/Right) | The outer side of each front seat back. See Figure. |
| Inflatable Restraint Steering Wheel Module | Center of steering wheel. See Figure. |
| Inflatable Restraint Steering Wheel Module Coil | Under driver air bag module. See Figure. |
| Radio Antenna | Center of dash. See Figure. |
| Roof Antenna Cable | Left kick panel. See Figure. |
| Seat Belt Pretensioner - Left | Left "B" pillar. See Figure. |
| Seat Belt Pretensioner - Right | Right "B" pillar. See Figure. |
| Theft Deterrent Alarm | Left side of engine compartment. See Figure. |
