Control Units
CONTROL UNITS LOCATION
| Component | Location |
|---|---|
| DRL | Behind dash, right of center console. See Figure. |
| Electronic Brake Control Module (EBCM) | Left side of engine compartment. See Figure. |
| Engine Control Module (ECM) | Left front fender, near the battery. See Figure. |
| HVAC Control Module | Center of dash. See Figure. |
| Ignition Coil (IC) Module | Rear of engine. See Figure. |
| Ignition Lock Module | I/P fuse block. See Figure. |
| Inflatable Restraint Sensing & Diagnostic Module (SDM) | Below center console. See Figure. |
| Lamp Driver Module | Lower left rear of engine compartment. See Figure. |
| Multifunction Alarm Module | Under dash, right of steering column. See Figure. |
| Remote Control Door Lock Receiver (RCDLR) | Under left side of dash. See Figure. |

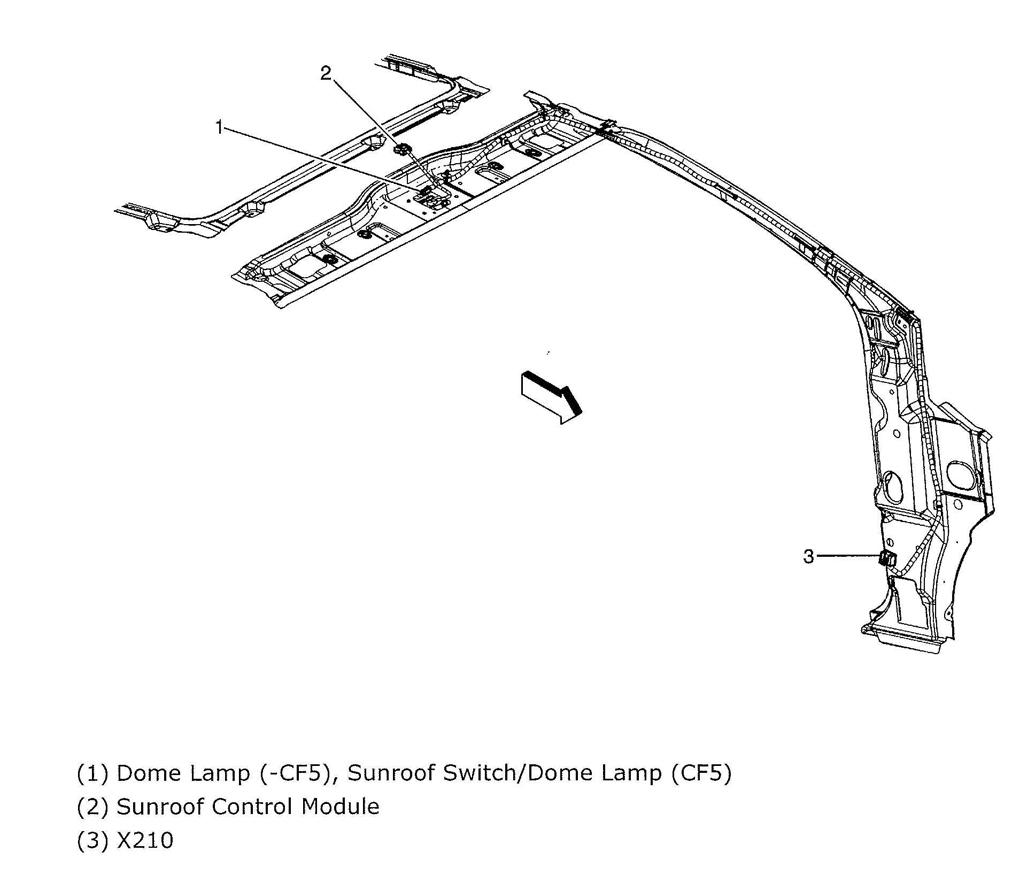

| Sunroof Control Module | Roof panel. See Figure. |
| TCM | On driver's side of vehicle, above brake pedal assembly. See Figure. |
| Theft Deterrent Control Module | Near the ignition switch. See Figure. |
| Tire Pressure Monitor System (TPMS) Receiver Module (4) | Behind left side of dash. See Figure. |
| Transmission Control Module (TCM) Harness Connector | Transmission control module. See Figure. |
| Wiper Motor (Rear) | Tailgate assembly. |
