Electrical Component Locator
>>
Component Location Graphics
Component Location Graphics
NOTE:
Figures may show multiple component locations. Refer to appropriate table for proper figure references.
Fig 1: Left Kick Panel
Courtesy of GENERAL MOTORS CORP.

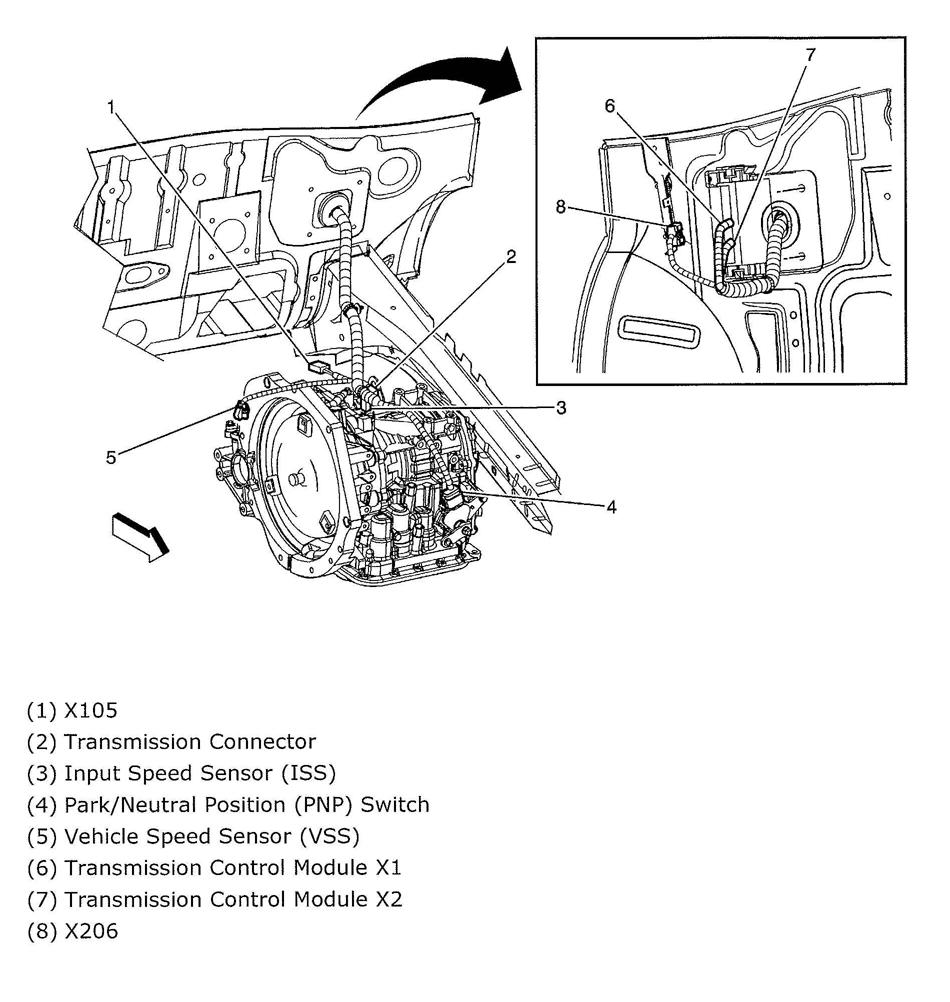

Fig 2: Automatic Transmission Components
Courtesy of GENERAL MOTORS CORP.
Fig 3: Engine Compartment
Courtesy of GENERAL MOTORS CORP.
Fig 4: Floor View
Courtesy of GENERAL MOTORS CORP.
Fig 5: Center Of Dash
Courtesy of GENERAL MOTORS CORP.
Fig 6: Doors
Courtesy of GENERAL MOTORS CORP.
Fig 7: Transmission Valve Body
Courtesy of GENERAL MOTORS CORP.
Fig 8: Dash
Courtesy of GENERAL MOTORS CORP.
Fig 9: Engine Compartment
Courtesy of GENERAL MOTORS CORP.
Fig 10: Engine Controls
Courtesy of GENERAL MOTORS CORP.
Fig 11: Fuel Vapor Recovery System
Courtesy of GENERAL MOTORS CORP.
Fig 12: Behind Radiator (Dual)
Courtesy of GENERAL MOTORS CORP.
Fig 13: Engine Compartment
Courtesy of GENERAL MOTORS CORP.
Fig 14: Vehicle Theft Deterrent System
Courtesy of GENERAL MOTORS CORP.
Fig 15: Under Left Side Of Dash
Courtesy of GENERAL MOTORS CORP.
Fig 16: Dash Panel
Courtesy of GENERAL MOTORS CORP.
Fig 17: Vehicle Theft Deterrent System
Courtesy of GENERAL MOTORS CORP.
Fig 18: Doors
Courtesy of GENERAL MOTORS CORP.
Fig 19: Starter Motor
Courtesy of GENERAL MOTORS CORP.
Fig 20: Washers & Wipers
Courtesy of GENERAL MOTORS CORP.
Fig 21: ABS Components
Courtesy of GENERAL MOTORS CORP.
Fig 22: SIR Components
Courtesy of GENERAL MOTORS CORP.
Fig 23: Roof
Courtesy of GENERAL MOTORS CORP.
Fig 24: Underhood Fuse Block (Hatchback)
Courtesy of GENERAL MOTORS CORP.

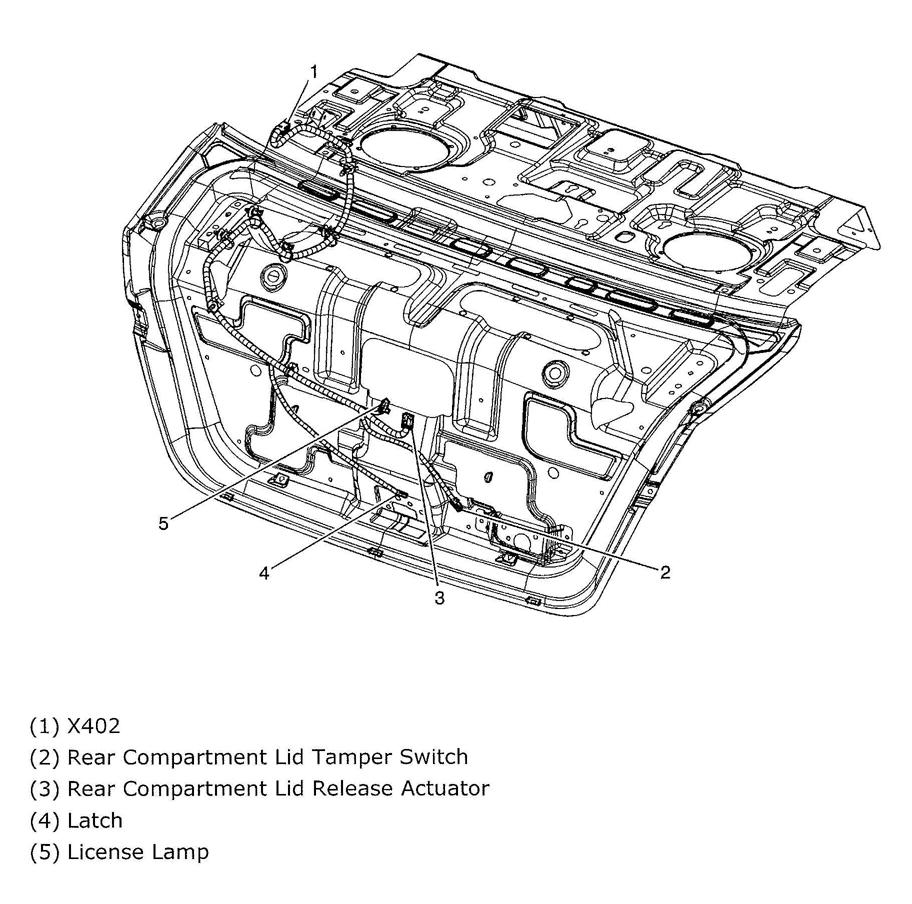

Fig 25: Trunk Lid
Courtesy of GENERAL MOTORS CORP.
Fig 26: Under Left Side Of Dash
Courtesy of GENERAL MOTORS CORP.
Fig 27: Engine Compartment
Courtesy of GENERAL MOTORS CORP.
Fig 28: Underhood Fuse Block (Notchback)
Courtesy of GENERAL MOTORS CORP.
Fig 29: Vehicle Overview Of Tire Monitoring System
Courtesy of GENERAL MOTORS CORP.
Fig 30: Behind Dash
Courtesy of GENERAL MOTORS CORP.

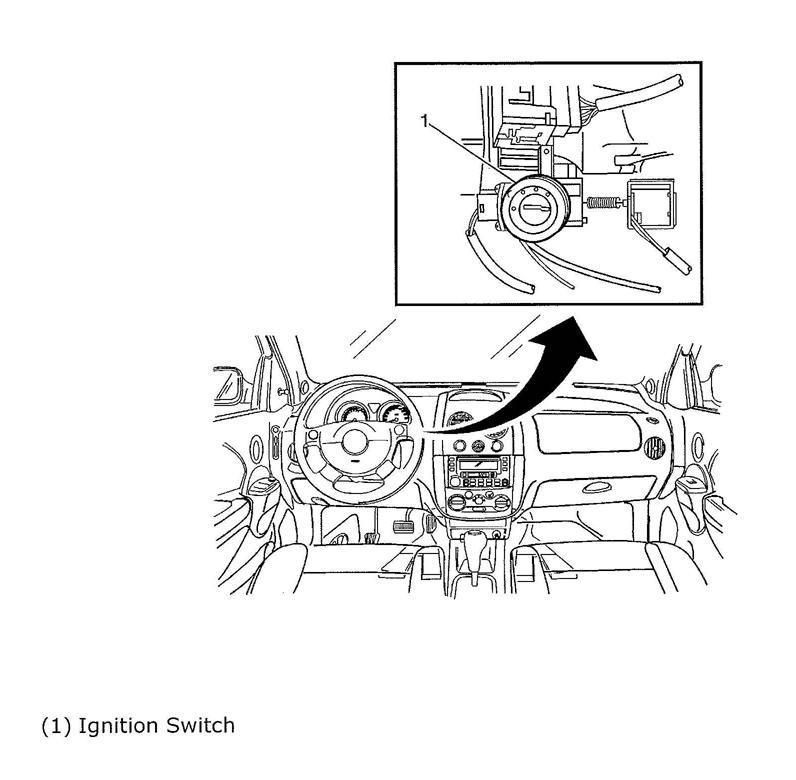

Fig 31: Steering Column
Courtesy of GENERAL MOTORS CORP.

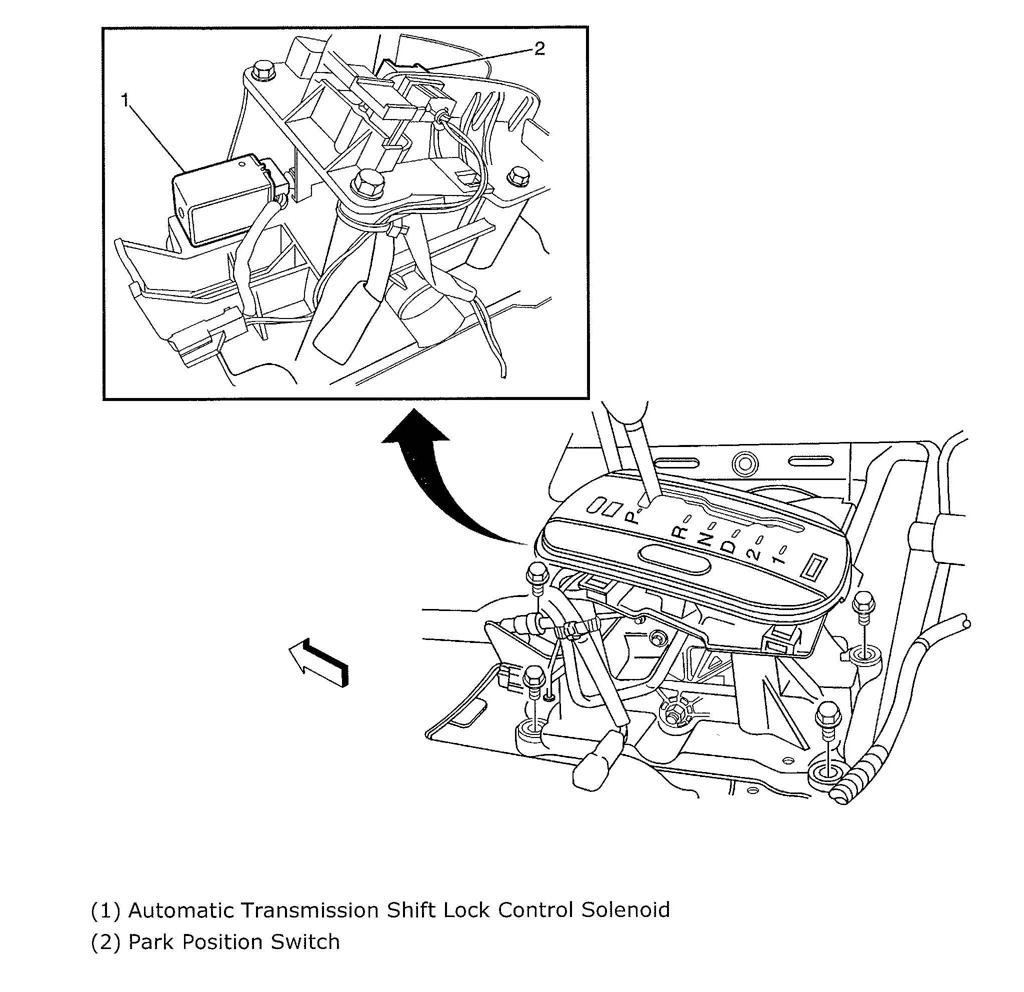

Fig 32: Shift Lever Assembly
Courtesy of GENERAL MOTORS CORP.
Fig 33: Dash
Courtesy of GENERAL MOTORS CORP.

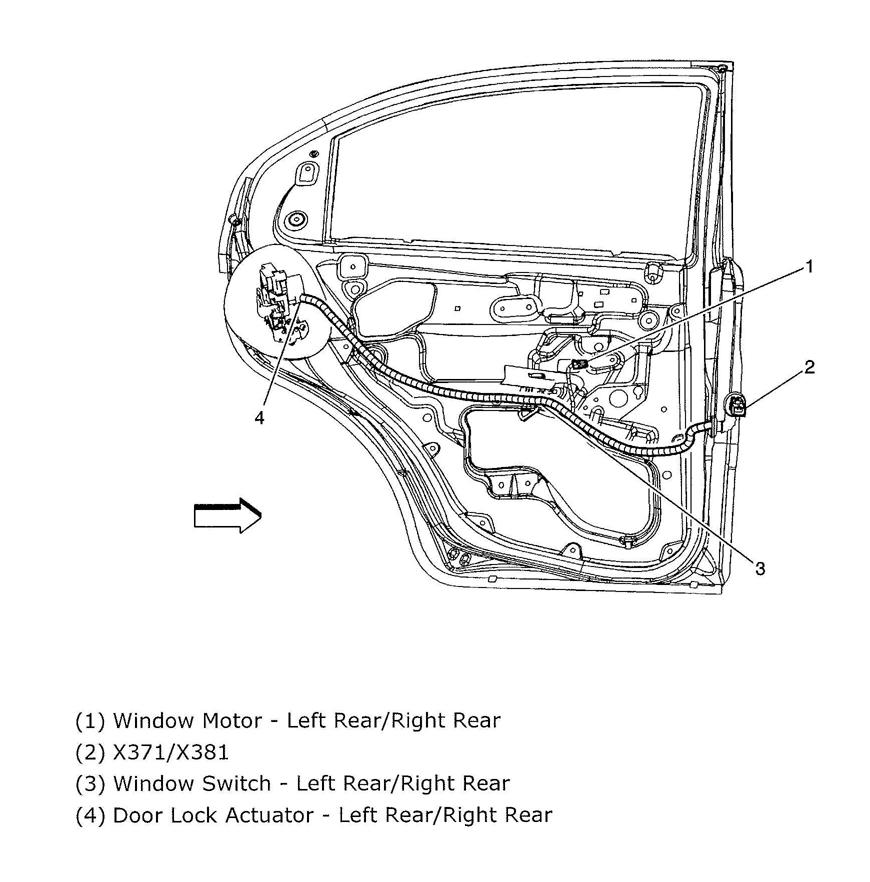

Fig 34: Left Rear Door Assembly
Courtesy of GENERAL MOTORS CORP.
Fig 35: Front Of Vehicle Chassis
Courtesy of GENERAL MOTORS CORP.
Fig 36: Engine Assembly
Courtesy of GENERAL MOTORS CORP.
Fig 37: Transmission Assembly
Courtesy of GENERAL MOTORS CORP.
Fig 38: Dash
Courtesy of GENERAL MOTORS CORP.
Fig 39: Floor Pan
Courtesy of GENERAL MOTORS CORP.
Fig 40: Floor Harness
Courtesy of GENERAL MOTORS CORP.
Fig 41: Roof Harness
Courtesy of GENERAL MOTORS CORP.

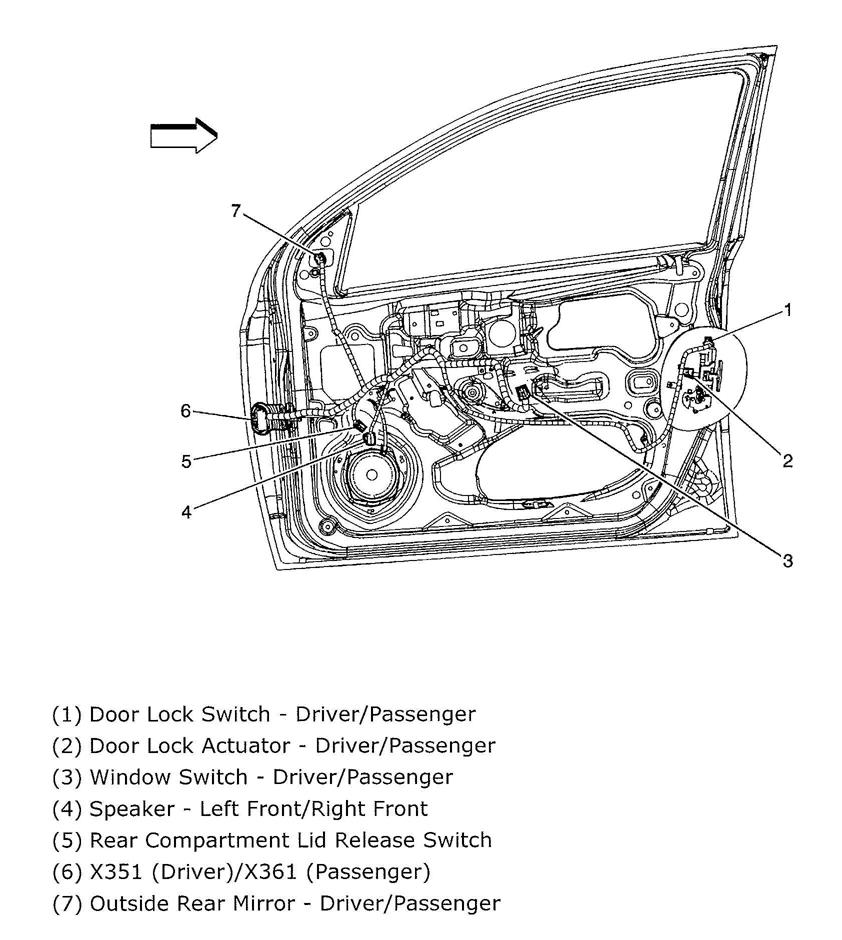

Fig 42: Door Assembly (Passenger's Similar)
Courtesy of GENERAL MOTORS CORP.
Fig 43: Trunk Harness
Courtesy of GENERAL MOTORS CORP.
Fig 44: Rear Harness
Courtesy of GENERAL MOTORS CORP.

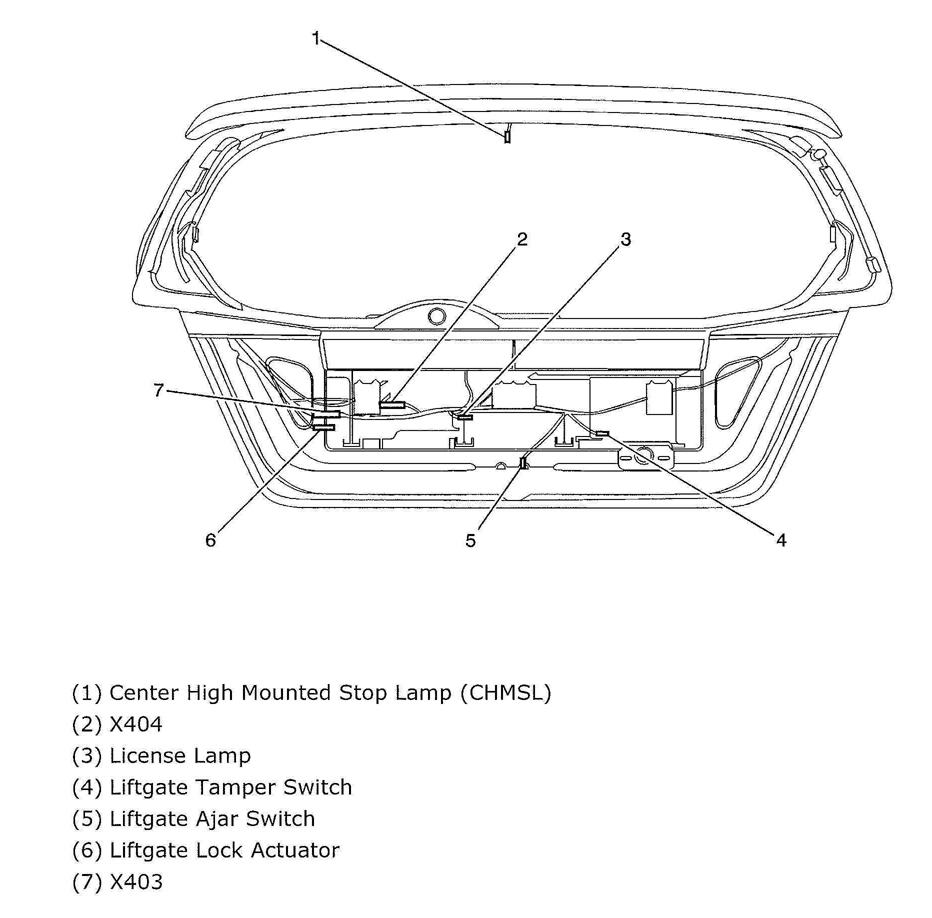

Fig 45: Tailgate
Courtesy of GENERAL MOTORS CORP.
