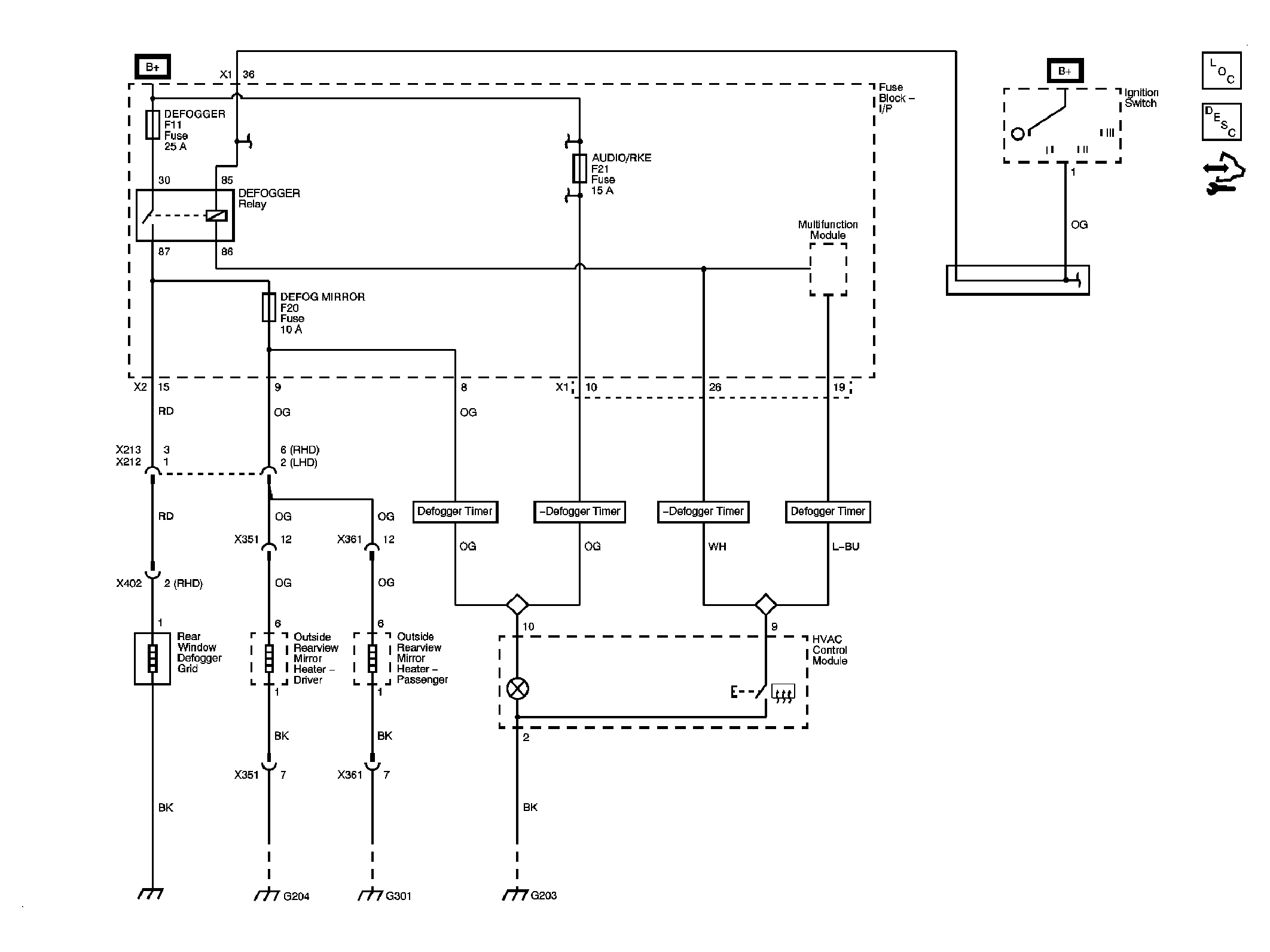

Home >> Chevrolet >> 2009 >> Aveo LS, 4D Hatchback, Standard >> Repair and Diagnosis >> Body & Frame >> Windows >> Fixed & MOVEABLE Window System >> Schematic and Routing Diagrams >> Defogger Schematics
