Moveable Window Schematics

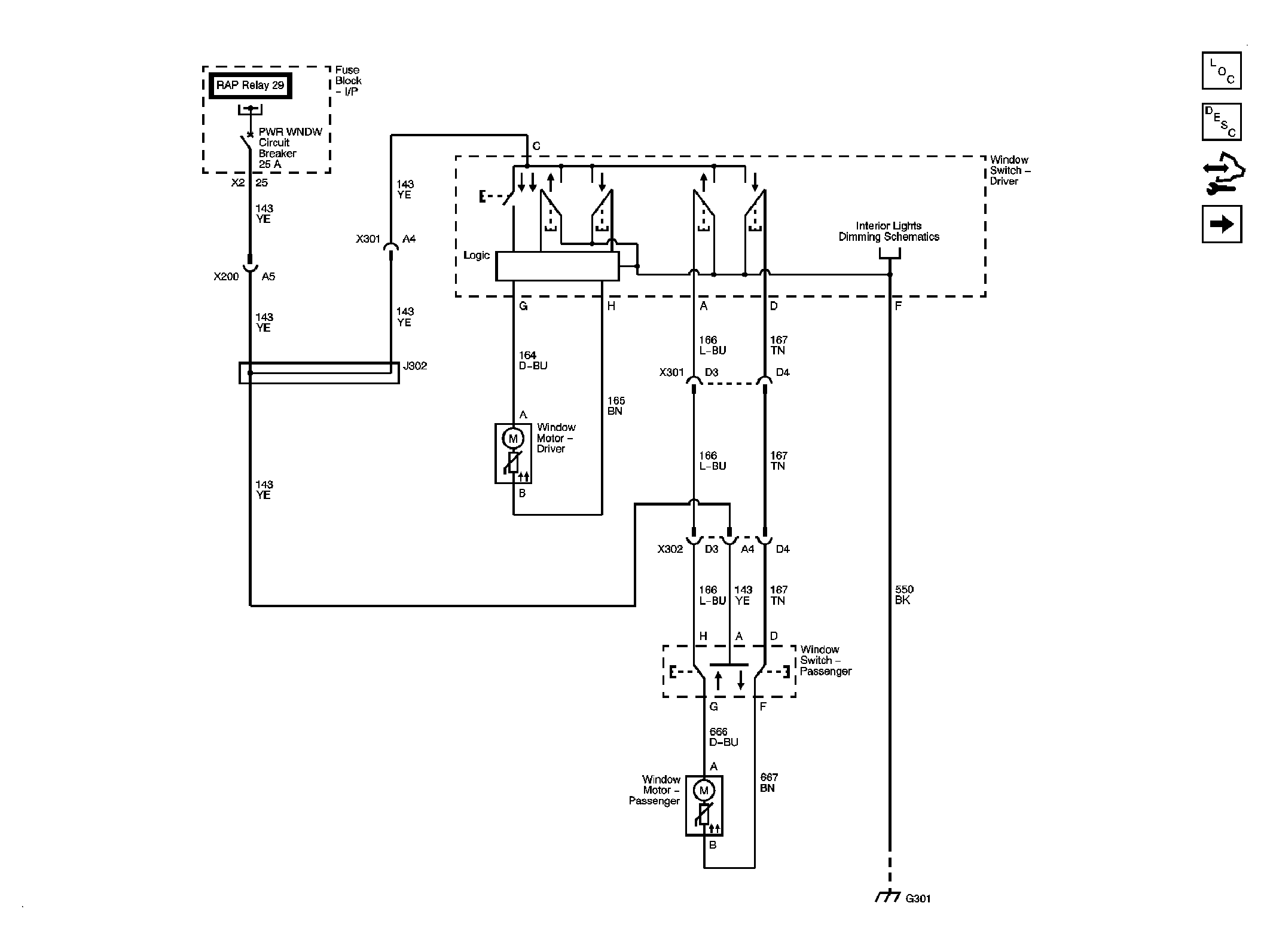

Fig 1: Front Door Windows

GM1921674

Courtesy of GENERAL MOTORS CORP.

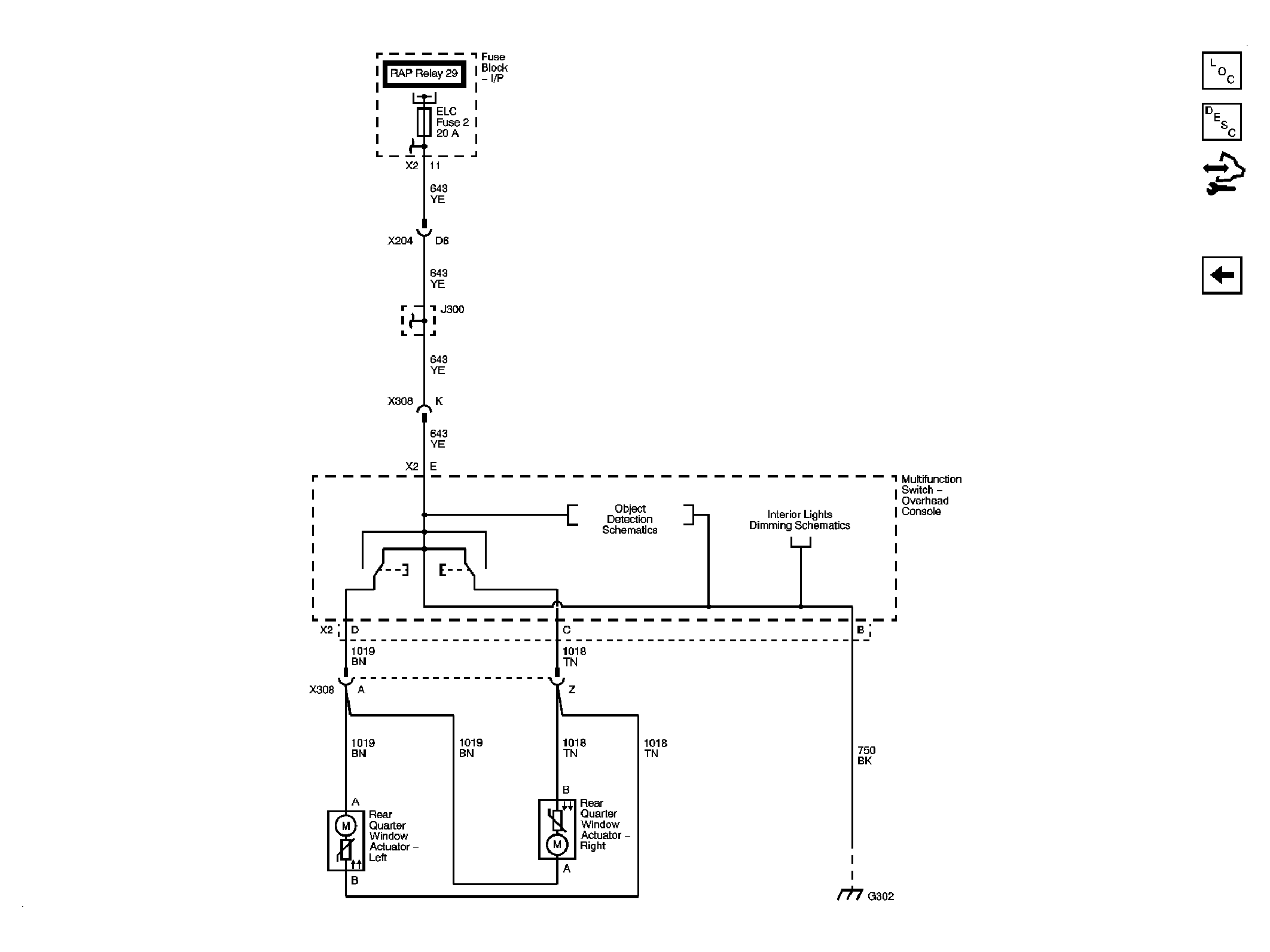

Fig 2: Rear Quarter Windows

GM1921676

Courtesy of GENERAL MOTORS CORP.
