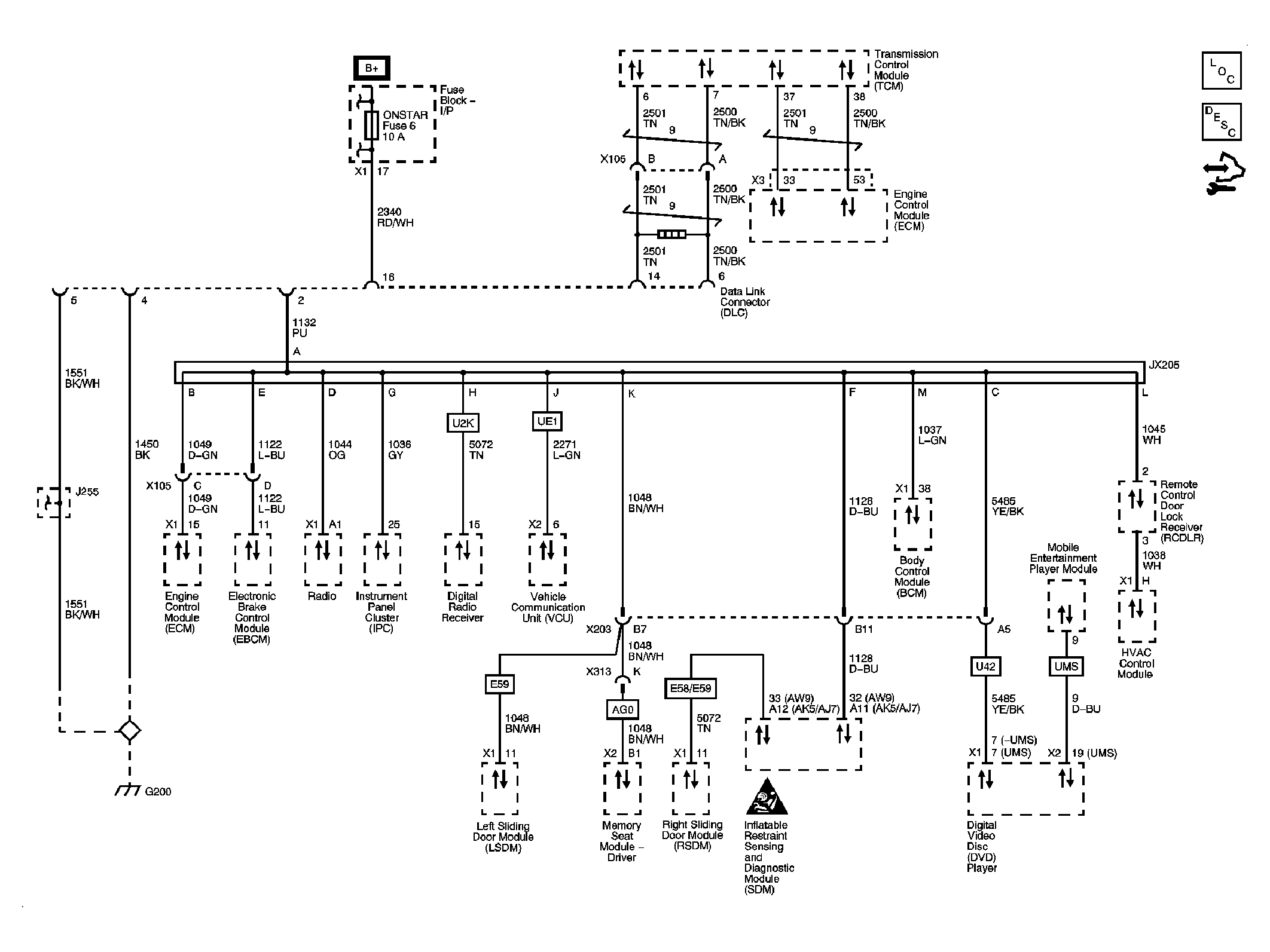

Home >> Chevrolet >> 2008 >> Uplander LT, 3.9 1 >> Repair and Diagnosis >> Accessories & Equipment >> Communication Devices >> Data Communication System >> Schematic and Routing Diagrams >> Data Communication Schematics
