Swivel Motor (AQW)

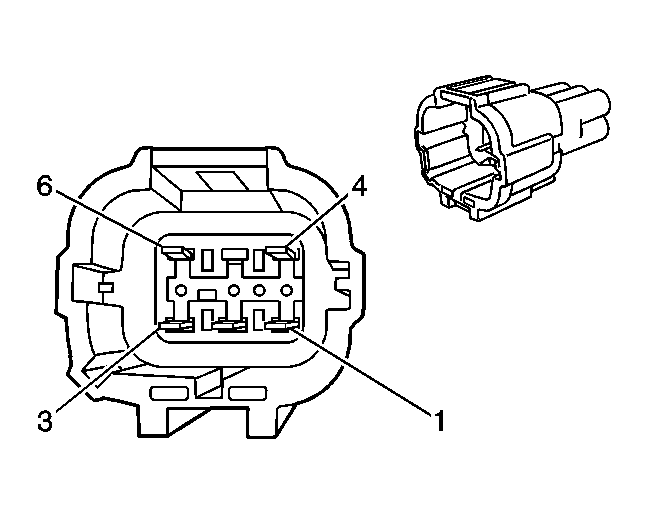

Fig 1: Swivel Motor (AQW) Connector End View
GM1387922Courtesy of GENERAL MOTORS CORP.
Swivel Motor (AQW)

Pin Wire Circuit Function
1 1.25 BU/RD AS16 Swivel Motor Control
2 - - Not Used
3 1.25 BU/BK AS17 Swivel Motor Control
4 0.5 BK AE10 Ground
5 0.5 GN AS19 Swivel Motor Hall Sensor Signal
6 0.5 RD/WH AS14 Swivel Motor Hall Sensor Supply Voltage
Connector Part Information
  • OEM: RS06MGY
  • Service: Not Serviced
  • Description: 6-Way M (GY)
Terminal Part Information
  • Terminal: Not Serviced in Kit
  • Core/Insulation Crimp: N/A
  • Release Tool/Test Probe: N/A
