Swivel Inside Limit Switch (AQW)

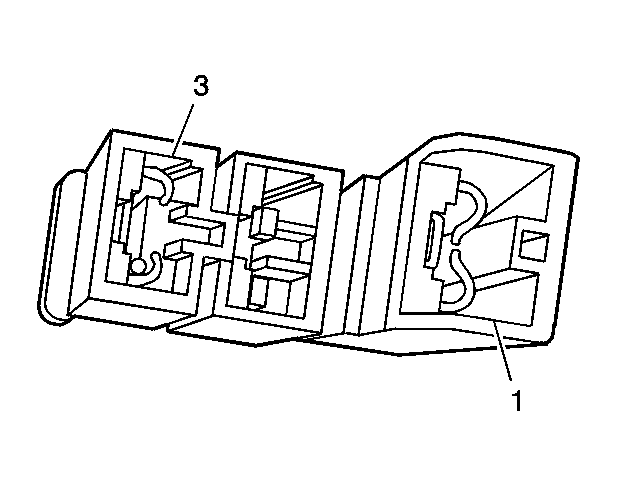

Fig 1: Swivel Inside Limit Switch (AQW) Connector End View
GM1387910Courtesy of GENERAL MOTORS CORP.
Swivel Inside Limit Switch (AQW)

Pin Wire Circuit Function
1 0.5 BK ASE2 Ground
2 - - Not Used
3 0.5 PU AS04 Swivel In Limit Switch Signal
Connector Part Information
  • OEM: 172075-1
  • Service: Not Serviced
  • Description: 3-Way F Receptacle Housing (NA)
Terminal Part Information
  • Terminal: Not Serviced in Kit
  • Core/Insulation Crimp: N/A
  • Release Tool/Test Probe: N/A
