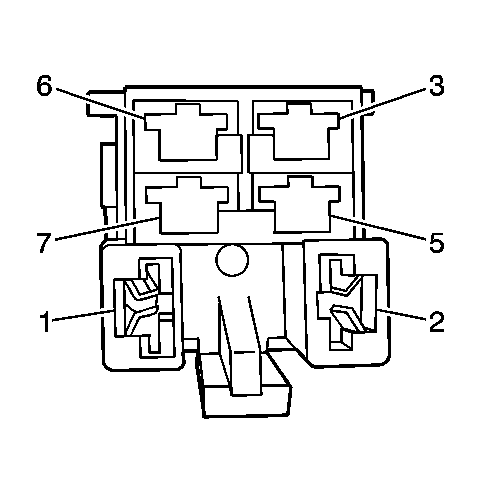

Sit-N-Lift Seat/Door Jamb Switch Relay (AQW)
Courtesy of GENERAL MOTORS CORP. Sit-N-Lift Seat/Door Jamb Switch Relay (AQW)
| Pin |
Wire |
Circuit |
Function |
| 1 |
0.5 BU/YE |
AS31 |
Right Rear Door Open Switch Signal |
| 2 |
0.5 RD/GN |
AS33 |
Battery Positive Voltage |
| 3 |
0.5 GN |
AR01 |
Hand Held Remote Supply Voltage |
| 5 |
0.5 RD/GN |
AS32 |
Battery Positive Voltage |
| 6 |
0.5 BU/GN |
AJ10 |
Park Switch Signal |
| 7 |
0.5 BU/BK |
M35 |
Park/Neutral Position Park Signal |
Connector Part Information
- OEM: M06BR-R
- Service: Not Serviced
- Description: 6-Way F (BN)
|
Terminal Part Information
- Terminal: Not Serviced in Kit
- Core/Insulation Crimp: N/A
- Release Tool/Test Probe: N/A
|
