Sit-N-Lift Seat/Brake Transmission Shift Interlock Relay (AQW)

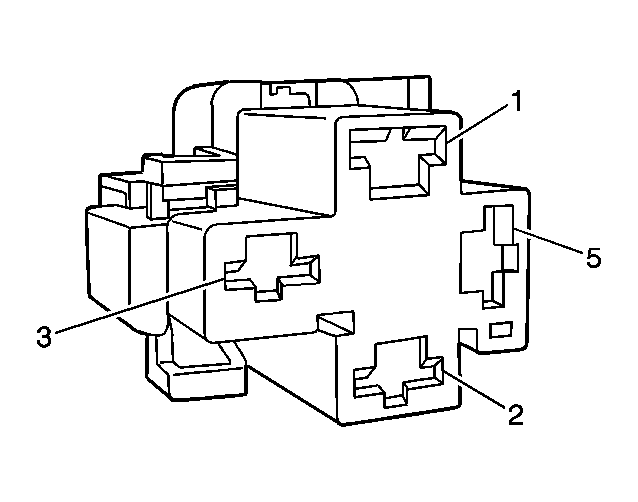

Courtesy of GENERAL MOTORS CORP. Sit-N-Lift Seat/Brake Transmission Shift Interlock Relay (AQW)
| Pin |
Wire |
Circuit |
Function |
| 1 |
0.5 YE/BK |
V02 |
Shift Interlock Relay Control |
| 2 |
0.5 YE/RD |
AR11 |
Ignition Voltage |
| 3 |
0.5 RD/BK |
V03 |
A/T Shift Lock Control Solenoid Control |
| 5 |
0.5 RD |
V01 |
Ignition Voltage |
Connector Part Information
- OEM: M04FL-IS
- Service: Not Serviced
- Description: 4-Way F (BU)
|
Terminal Part Information
- Terminal: Not Serviced in Kit
- Core/Insulation Crimp: N/A
- Release Tool/Test Probe: N/A
|
