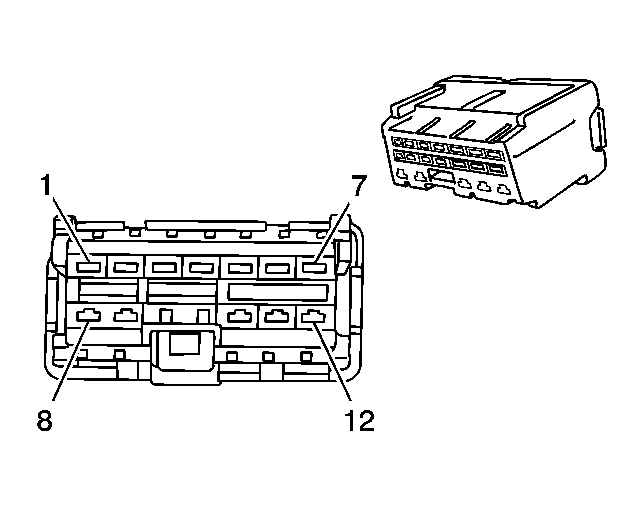

Sit-N-Lift Seat Module X1 (AQW)
Courtesy of GENERAL MOTORS CORP. Sit-N-Lift Seat Module X1 (AQW)
| Pin |
Wire |
Circuit |
Function |
| 1 |
1.25 BU/RD |
AS16 |
Swivel Motor Control |
| 2 |
1.25 BU/BK |
AS17 |
Swivel Motor Control |
| 3 |
1.25 BK |
AJE2 |
Ground |
| 4 |
1.25 BK |
AJE1 |
Ground |
| 5 |
- |
- |
Not Used |
| 6 |
1.25 RD/YE |
AS21 |
Lift Motor Up Control |
| 7 |
1.25 GN/YE |
AS20 |
Lift Motor Down Control |
| 8 |
1.25 RD |
AS01 |
Battery Positive Voltage |
| 9-11 |
- |
- |
Not Used |
| 12 |
1.25 YE |
AJ08 |
Battery Positive Voltage |
Connector Part Information
- OEM: NS12FW
- Service: Not Serviced
- Description: 12-Way F (WH)
|
Terminal Part Information
- Terminal: Not Serviced in Kit
- Core/Insulation Crimp: N/A
- Release Tool/Test Probe: N/A
|
