Sit-N-Lift Seat Diode 3 (AQW)

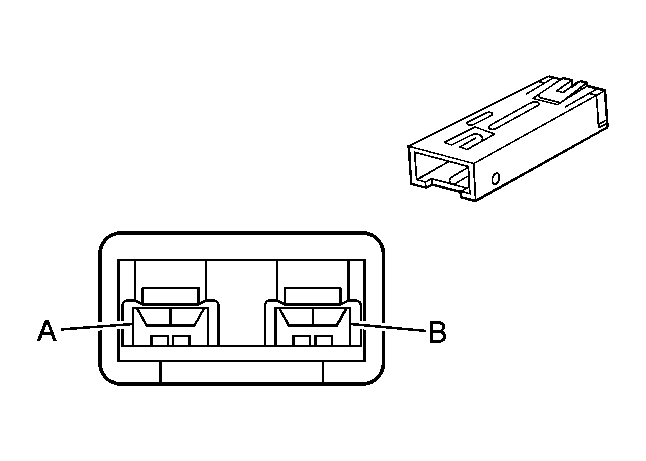

Fig 1: Sit-N-Lift Seat Diode 3 (AQW) Connector End View
GM1548102Courtesy of GENERAL MOTORS CORP.
Sit-N-Lift Seat Diode 3 (AQW)

Pin Wire Circuit Function
A 0.5 YE/BK 1181 Right Rear Door Open Switch Signal
B 0.5 YE 1181 Right Rear Door Open Switch Signal
0.5 YE 1181 Right Rear Door Open Switch Signal
Connector Part Information
  • OEM: 6098-0082
  • Service: Not Serviced
  • Description: 2-Way F (WH)
Terminal Part Information
  • Terminal: Not Serviced in Kit
  • Core/Insulation Crimp: N/A
  • Release Tool/Test Probe: N/A
