Sit-N-Lift Seat Diode 2 (AQW)

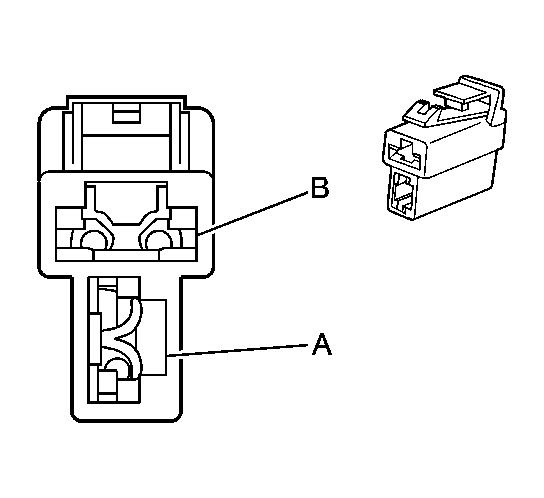

Fig 1: Sit-N-Lift Seat Diode 2 (AQW) Connector End View
GM1548096Courtesy of GENERAL MOTORS CORP.
Sit-N-Lift Seat Diode 2 (AQW)

Pin Wire Circuit Function
A 0.5 GN/RD 1135 A/T Shift Lock Control Solenoid Control
B 0.5 GN 1135 A/T Shift Lock Control Solenoid Control
Connector Part Information
  • OEM: 7123-2825
  • Service: Not Serviced
  • Description: 2-Way F (WH)
Terminal Part Information
  • Terminal: Not Serviced in Kit
  • Core/Insulation Crimp: N/A
  • Release Tool/Test Probe: N/A
