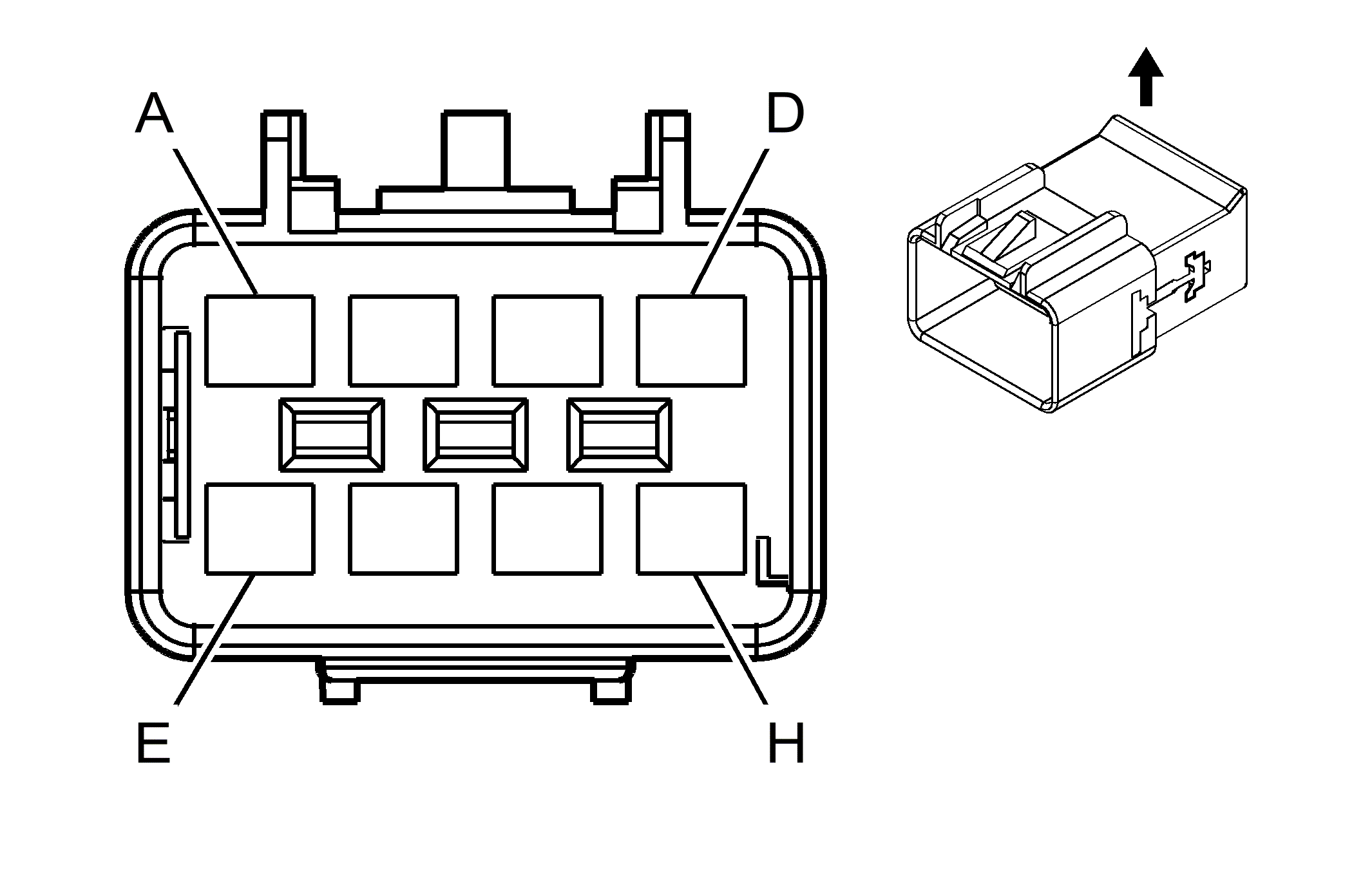

Seat Adjuster Switch - Driver (AG1)
Courtesy of GENERAL MOTORS CORP. Seat Adjuster Switch - Driver (AG1)
| Pin |
Wire |
Circuit |
Function |
| A |
2.0 RD/WH |
1140 |
Battery Positive Voltage |
| B |
2.0 YE |
282 |
Driver Power Seat Rear Vertical Motor Up Control |
| C |
2.0 L-BU |
283 |
Driver Power Seat Rear Vertical Motor Down Control |
| D |
2.0 L-GN |
284 |
Driver Power Seat Horizontal Motor Rearward Control |
| E |
2.0 TN |
285 |
Driver Power Seat Horizontal Motor Forward Control |
| F |
2.0 D-GN |
286 |
Driver Power Seat Front Vertical Motor Up Control |
| G |
2.0 D-BU |
287 |
Driver Power Seat Front Vertical Motor Down Control |
| H |
2.0 BK |
650 |
Ground |
Connector Part Information
- OEM: 15326928
- Service: 15306176
- Description: 8-Way M GT 280 Series (BK)
|
Terminal Part Information
- Terminal: 15304724/Tray 8
- Core/Insulation Crimp: C/D
- Release Tool/Test Probe: 15315247/J-35616-5
|
