Recirculation Actuator

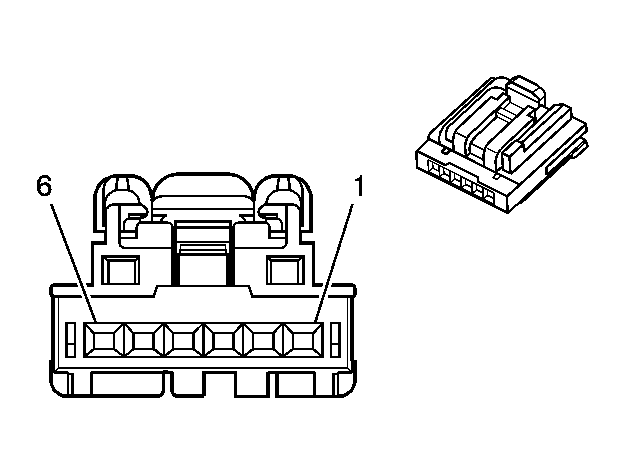

Fig 1: Recirculation Actuator Connector End View
GM1538773Courtesy of GENERAL MOTORS CORP.
Recirculation Actuator

Pin Wire Circuit Function
1 0.35 TN/BK 2274 Recirculation Door Control
2-5 - - Not Used
6 0.35 YE 1791 Common Door Control
Connector Part Information
  • OEM: 1419158-1
  • Service: 88987985
  • Description: 6-Way F Receptacle 0.64 (BK)
Terminal Part Information
  • Terminal: Not Serviced in Kit
  • Core/Insulation Crimp: N/A
  • Release Tool/Test Probe: N/A
