Rear Window Wiper Motor

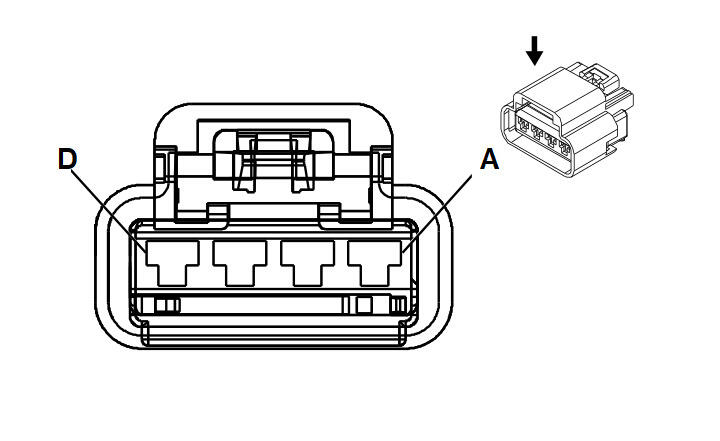

Fig 1: Rear Window Wiper Motor Connector End View
GM698669Courtesy of GENERAL MOTORS CORP.
Rear Window Wiper Motor

Pin Wire Circuit Function
A 1.0 YE 843 Accessory Voltage
B 0.8 D-GN 392 Rear Window Washer Pump Control
C 0.5 GY 391 Rear Window Wiper Switch Signal
D 1.0 BK 450 Ground
Connector Part Information
  • OEM: 15326886
  • Service: 88988300
  • Description: 4-Way F GT 280 Series (BK)
Terminal Part Information
  • Terminal: 15304711/Tray 8
  • Core/Insulation Crimp: Pins: A, B, D: 2/A
  • Core/Insulation Crimp: Pin: C: E/A
  • Release Tool/Test Probe: 15315247/J-35616-4A
