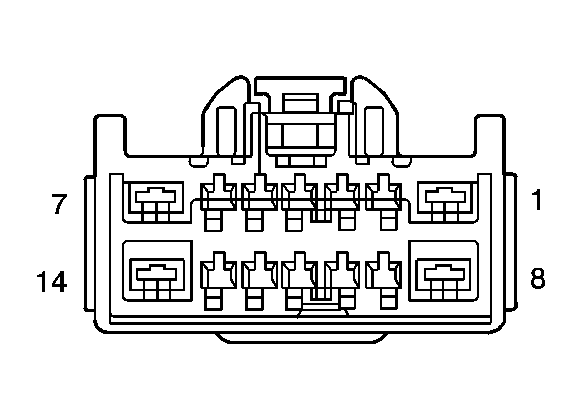

Left Sliding Door Module (LSDM) X1 (E59)
Courtesy of GENERAL MOTORS CORP. Left Sliding Door Module (LSDM) X1 (E59)
| Pin |
Wire |
Circuit |
Function |
| 1 |
5.0 BK |
350 |
Ground |
| 2 |
0.35 BK/WH |
2619 |
Left Sliding Door Enable Switch Signal |
| 3 |
0.5 L-GN |
275 |
Park/Neutral Position Park Signal |
| 4 |
0.35 L-BU/BK |
2618 |
Left Sliding Door Open/Close Switch Signal |
| 5 |
0.5 RD/WH |
1840 |
Battery Positive Voltage |
| 6 |
- |
- |
Not Used |
| 7 |
2.0 D-GN |
1898 |
Left Sliding Door Latch Motor Control |
| 8 |
0.5 YE |
2617 |
Left Sliding Door Detent Switch Signal |
| 9-10 |
- |
- |
Not Used |
| 11 |
0.35 BN/WH |
1048 |
Class 2 Serial Data |
| 12 |
- |
- |
Not Used |
| 13 |
0.35 L-BU/BK |
2618 |
Left Sliding Door Open/Close Switch Signal |
| 14 |
5.0 RD/WH |
1940 |
Battery Positive Voltage |
Connector Part Information
- OEM: 7283-5622-40
- Service: 88956524
- Description: 14-Way F Receptacle 1.5 2.8 (GY)
|
Terminal Part Information
- Pins: 1, 7, 14
- Terminal: 7116-4112-02/Tray 9
- Core/Insulation Crimp: C/D
- Release Tool/Test Probe: 12094430/J-35616-4A
- Pins: 2-5, 8, 11-13
- Terminal: 7116-4100-08/Tray 9
- Core/Insulation Crimp: E/C
- Release Tool/Test Probe: 12094430/J-35616-4A
|
