Inflatable Restraint Front Passenger Presence System (PPS) Sensor

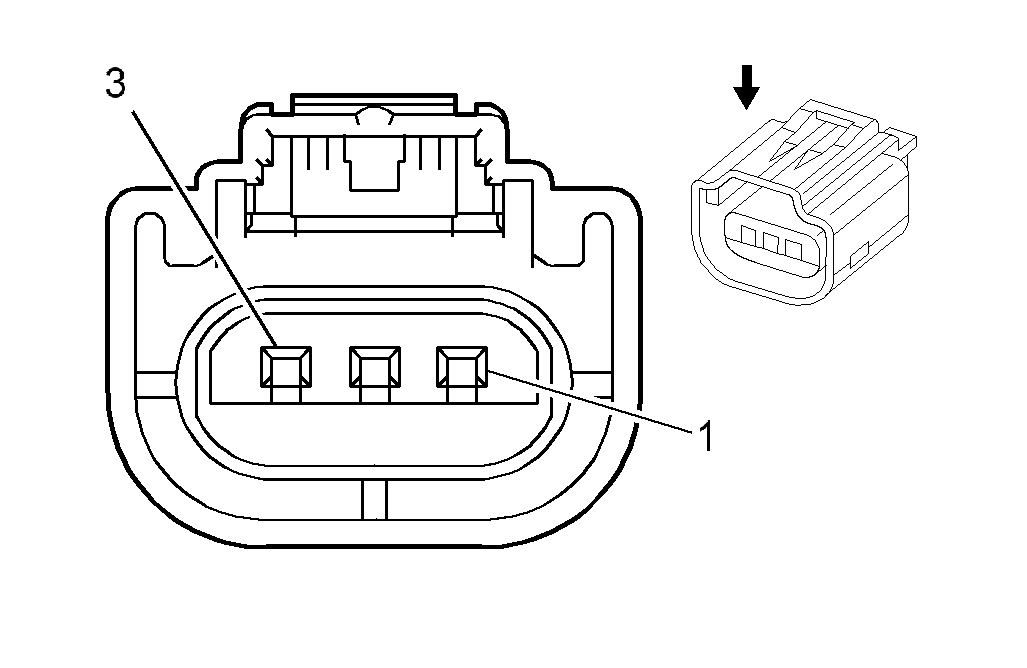

Courtesy of GENERAL MOTORS CORP. Inflatable Restraint Front Passenger Presence System (PPS) Sensor
| Pin |
Wire |
Circuit |
Function |
| 1 |
0.35 D-GN |
608 |
5-Volt Reference |
| 2 |
0.35 YE |
1362 |
Passenger Presence Sensor Signal |
| 3 |
0.35 GY |
1361 |
Low Reference |
Connector Part Information
- OEM: 13511996
- Service: See Catalog
- Description: 3-Way F 1.5 Series Sealed (GY)
|
Terminal Part Information
- Terminal: Service with Pigtail
- Core/Insulation Crimp: N/A
- Release Tool/Test Probe: 12094430/J-35616-2A
|
