Driver Door Key Switch (UA6)

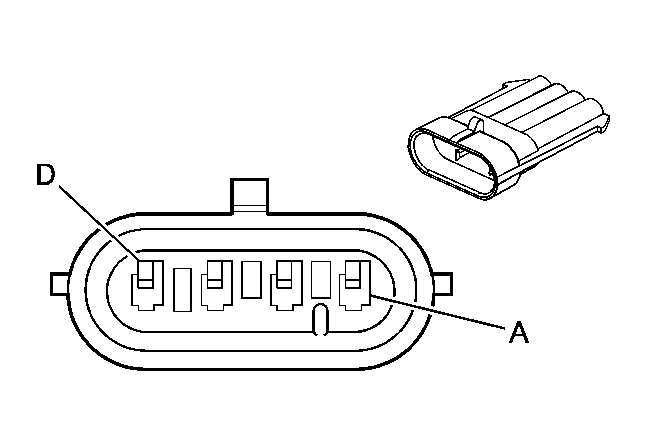

Fig 1: Driver Door Key Switch (UA6) Connector End View
GM73227Courtesy of GENERAL MOTORS CORP.
Driver Door Key Switch (UA6)

Pin Wire Circuit Function
A 0.5 L-GN 1123 Door Lock Key Switch Lock Signal
B - - Not Used
C 0.35 BK 550 Ground
D 0.5 PU 1124 Door Lock Key Switch Unlock Signal
Connector Part Information
  • OEM: 12124583
  • Service: 12126023
  • Description: 4-Way M Metri-Pack 150 Series (GY)
Terminal Part Information
  • Terminal: 12045773/Tray 2
  • Core/Insulation Crimp: E/1
  • Release Tool/Test Probe: 12094429/J-35616-3
