Cooling Fan - Right

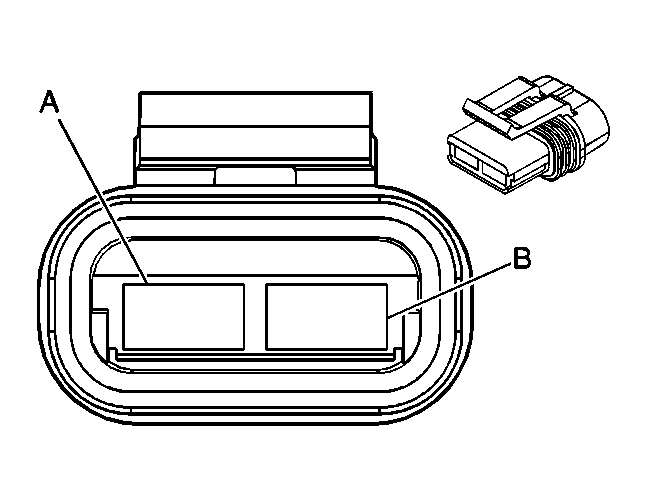

Fig 1: Cooling Fan - Right Connector End View
GM684800Courtesy of GENERAL MOTORS CORP.
Cooling Fan - Right

Pin Wire Circuit Function
A 5.0 BK - Ground
B 5.0 GN - Right Cooling Fan Motor Supply Voltage
Connector Part Information
  • OEM: 12085030
  • Service: 12167144
  • Description: 2-Way F Metri-Pack 630 Series Pull to Seat Sealed (BK)
Terminal Part Information
  • Terminal: 12129497/Tray 1
  • Core/Insulation Crimp: F/5
  • Release Tool/Test Probe: 12094430/J-35616-5
