Camshaft Position (CMP) Actuator Solenoid

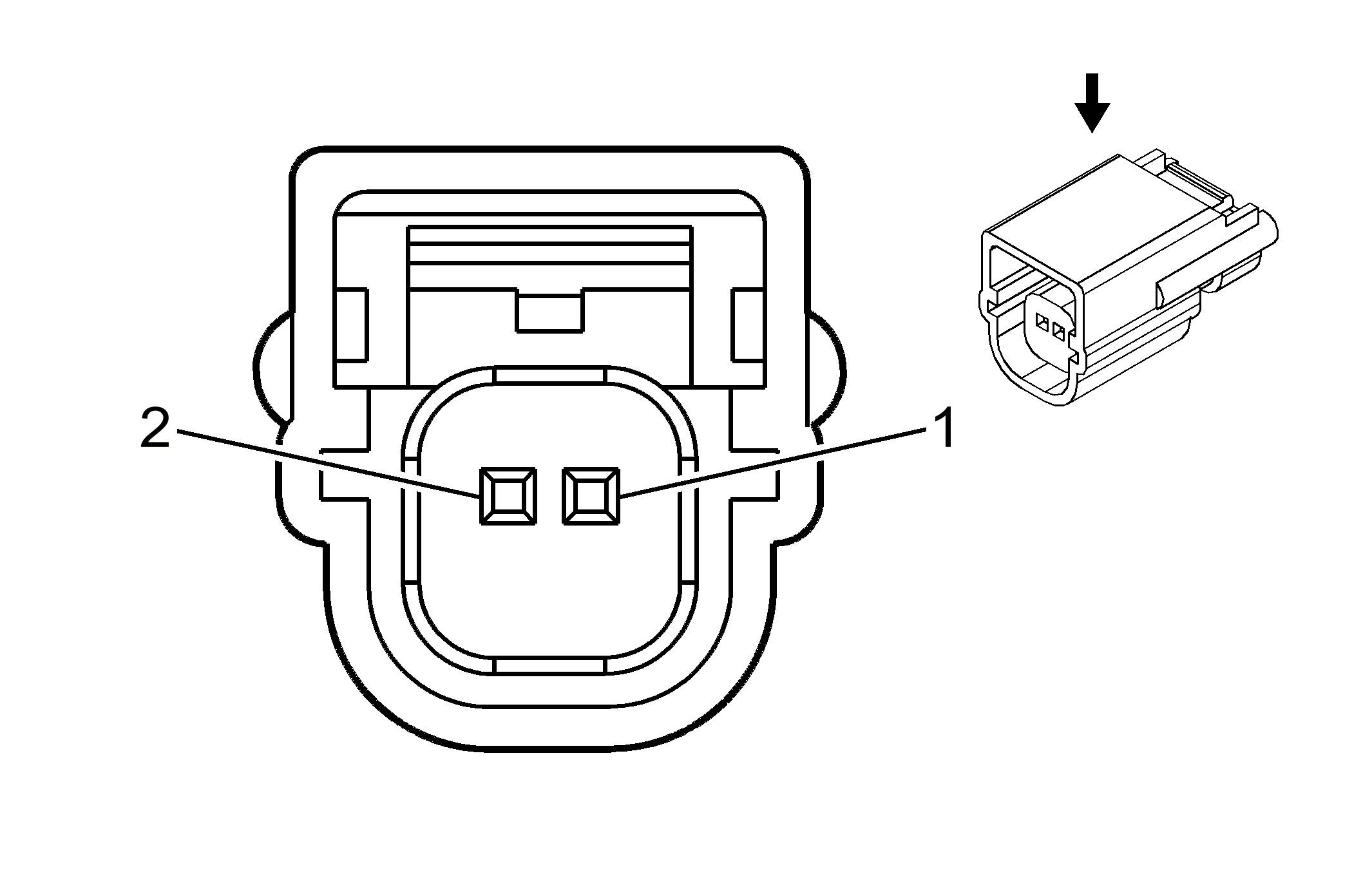

Fig 1: Camshaft Position (CMP) Actuator Solenoid Connector End View

Courtesy of GENERAL MOTORS CORP.

Camshaft Position (CMP) Actuator Solenoid

Pin	Wire	Circuit	Function
1	0.35 BN	2198	Camshaft Position Actuator Solenoid High Control
2	0.35 TN	2199	Low Reference

Connector Part Information  OEM: E-5931-001 Service: See Catalog Description: 2-Way F Receptacle 064 Series Sealed (BK)

Terminal Part Information  Terminal/Tray: 1393364-2/7 Core/Insulation Crimp: K/K Release Tool/Test Probe: 15315247/J-35616-64A (L-BU)
