Automatic Level Control (ALC) Solenoid Valve (G67 -Z10)

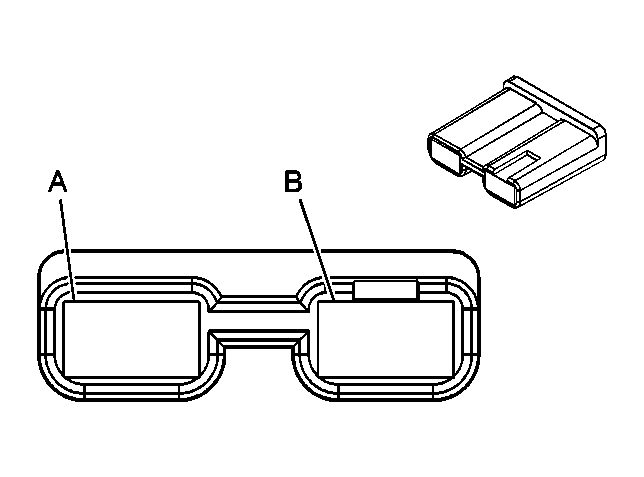

Fig 1: Automatic Level Control (ALC) Solenoid Valve (G67 -Z10) Connector End View
GM644900Courtesy of GENERAL MOTORS CORP.
Automatic Level Control (ALC) Solenoid Valve (G67 -Z10)

Pin Wire Circuit Function
A 0.5 WH 837 Automatic Level Control Inflator Solenoid Control
B 1.0 RD/WH 140 Battery Positive Voltage
Connector Part Information
  • OEM: 2984951
  • Service: 12102686
  • Description: 2-Way F 56 Series (BK)
Terminal Part Information
  • Terminal: 12124515/Tray 1
  • Core/Insulation Crimp: C/D
  • Release Tool/Test Probe: 12094430/J-35616-42 (RD)
