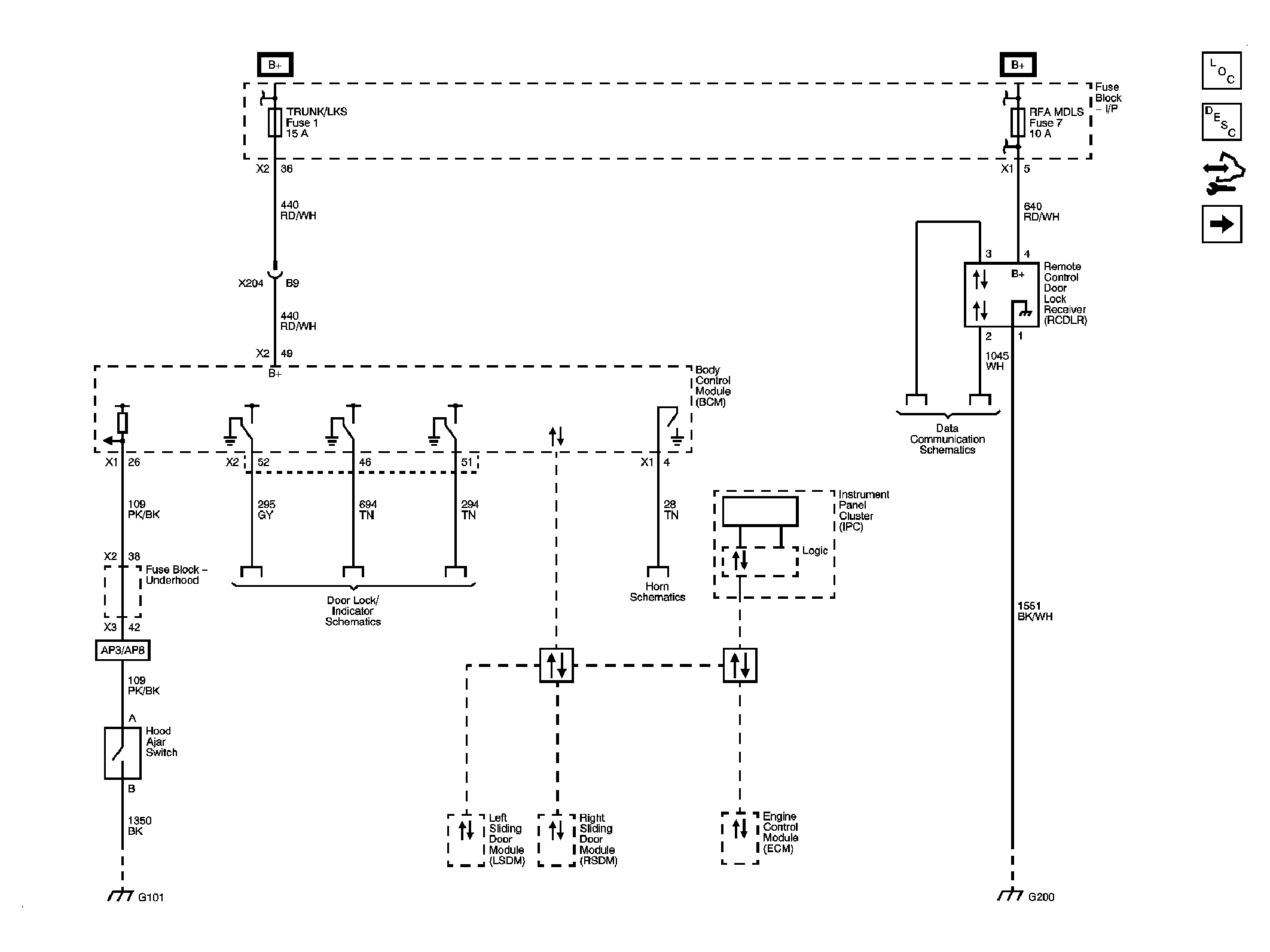

Home >> Chevrolet >> 2008 >> Uplander Base, 3.9 1 >> Repair and Diagnosis >> Body & Frame >> Door Locks >> Keyless Entry System & Remote Functions >> Schematic and Routing Diagrams >> Remote Function Schematics
