Component Locations
>>
Electrical Component Locator
>>
Component Location Graphics
Component Location Graphics
NOTE:
Figures may show multiple component locations. Refer to appropriate table for proper figure references.
Fig 1: Underhood Fuse Block
Courtesy of GENERAL MOTORS CORP.
Fig 2: Left & Right Instrument Panel Carrier
Courtesy of GENERAL MOTORS CORP.
Fig 3: Dash Panel Carrier
Courtesy of GENERAL MOTORS CORP.
Fig 4: Center Of Dash
Courtesy of GENERAL MOTORS CORP.
Fig 5: Right Front Of Vehicle
Courtesy of GENERAL MOTORS CORP.
Fig 6: Rear Frame & Underbody
Courtesy of GENERAL MOTORS CORP.
Fig 7: Right Front Of Engine (4.2L)
Courtesy of GENERAL MOTORS CORP.
Fig 8: Center Floor Pan
Courtesy of GENERAL MOTORS CORP.
Fig 9: Front Hubs & Rotors
Courtesy of GENERAL MOTORS CORP.
Fig 10: Center Of Floor Pan
Courtesy of GENERAL MOTORS CORP.
Fig 11: Dash Assembly
Courtesy of GENERAL MOTORS CORP.

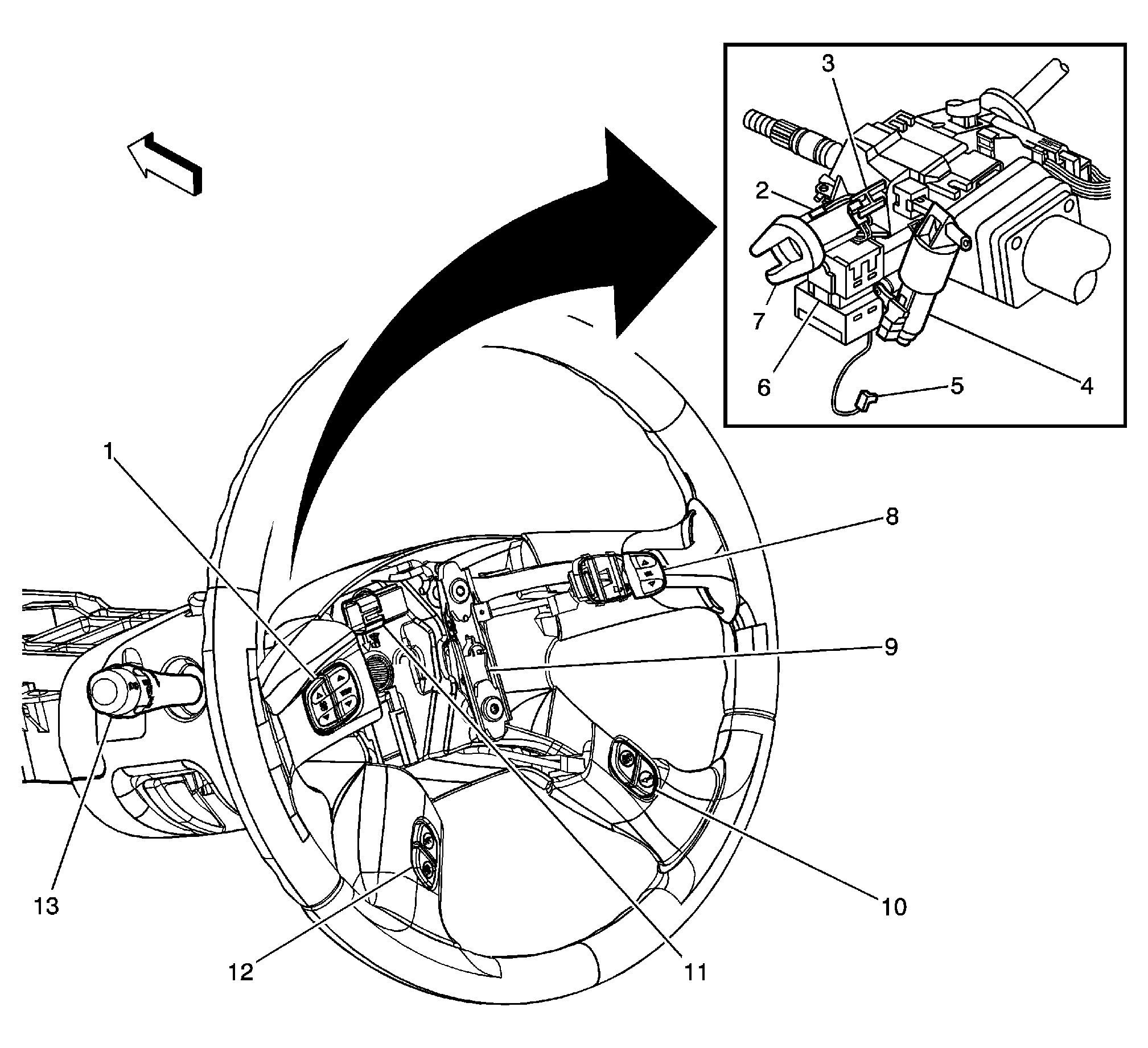

Fig 12: Steering Wheel Assembly
Courtesy of GENERAL MOTORS CORP.
Fig 13: Lower Console
Courtesy of GENERAL MOTORS CORP.
Fig 14: Lower Left Side Of Dash
Courtesy of GENERAL MOTORS CORP.
Fig 15: Rear Floor Panel
Courtesy of GENERAL MOTORS CORP.
Fig 16: Right Body Side Inner Lower Panel
Courtesy of GENERAL MOTORS CORP.
Fig 17: Liftgate
Courtesy of GENERAL MOTORS CORP.
Fig 18: Right Front Of Engine Compartment
Courtesy of GENERAL MOTORS CORP.
Fig 19: Center Rear Of Engine Compartment
Courtesy of GENERAL MOTORS CORP.

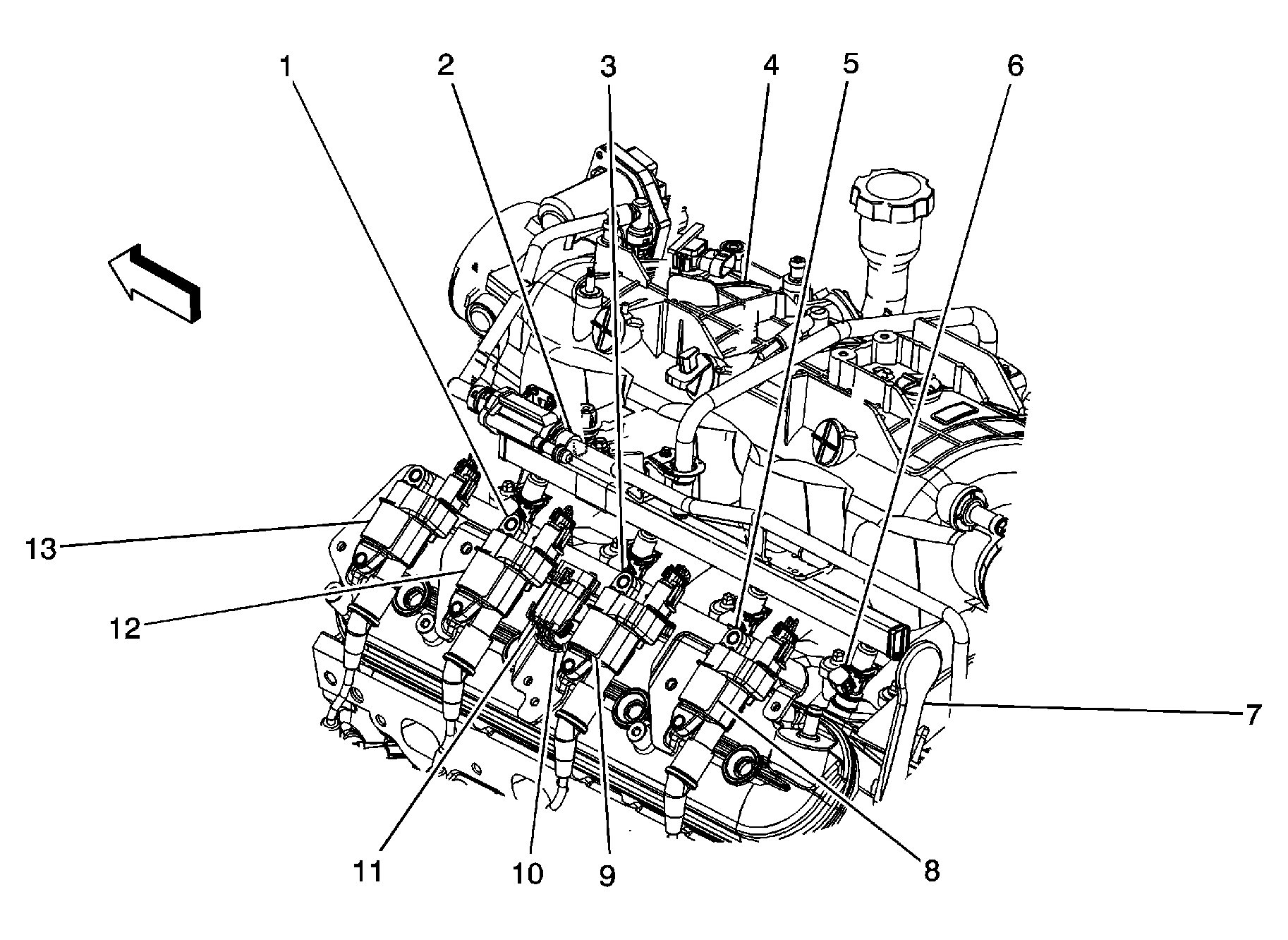

Fig 20: Upper Left Side Of Engine (5.3L/6.0L)
Courtesy of GENERAL MOTORS CORP.

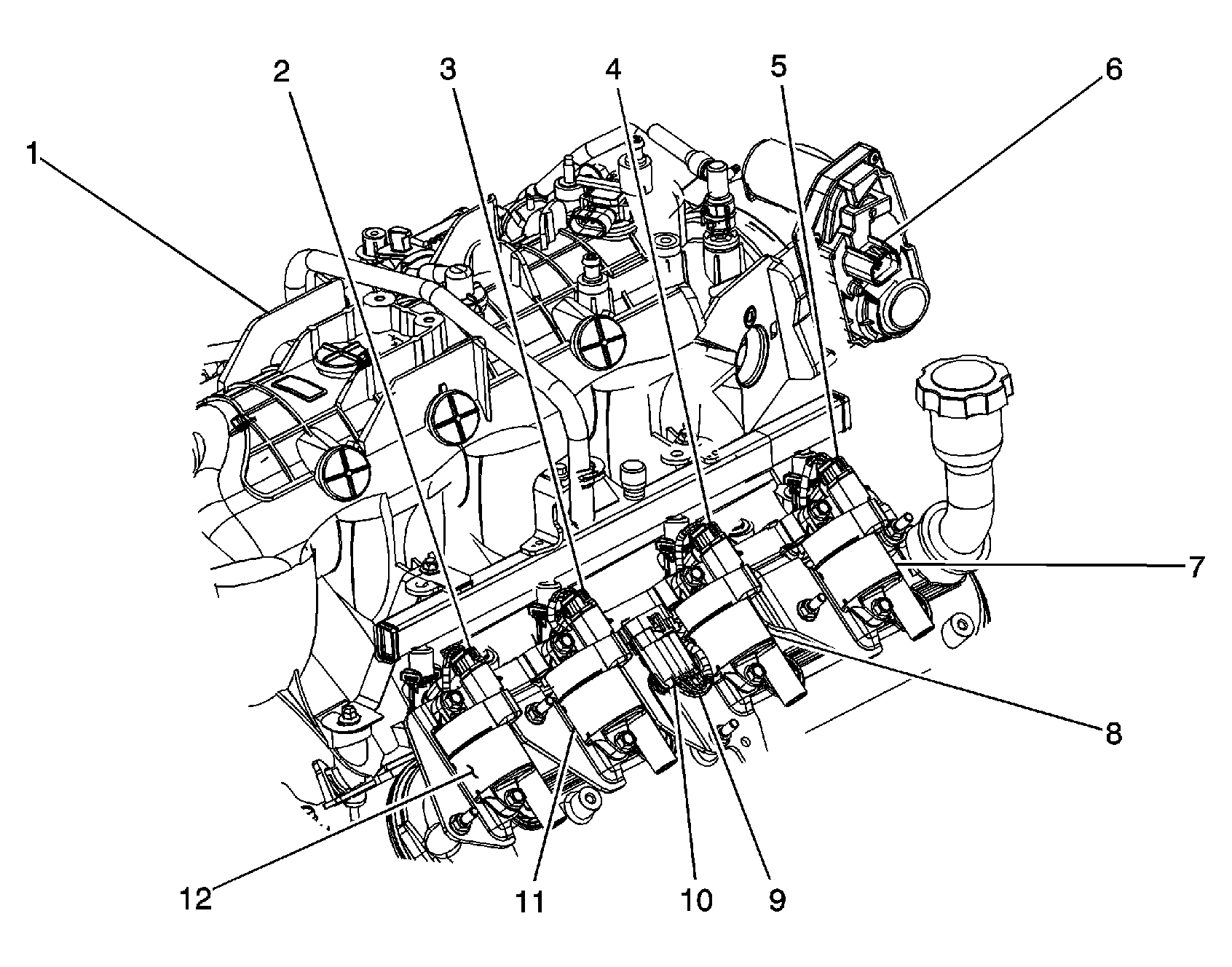

Fig 21: Upper Right Side Of Engine (5.3L/6.0L)
Courtesy of GENERAL MOTORS CORP.
Fig 22: Upper Right Side Of Engine (5.3L/6.0L)
Courtesy of GENERAL MOTORS CORP.
Fig 23: Lower Right Rear Of Engine (5.3L/6.0L)
Courtesy of GENERAL MOTORS CORP.
Fig 24: Power Brake Booster
Courtesy of GENERAL MOTORS CORP.

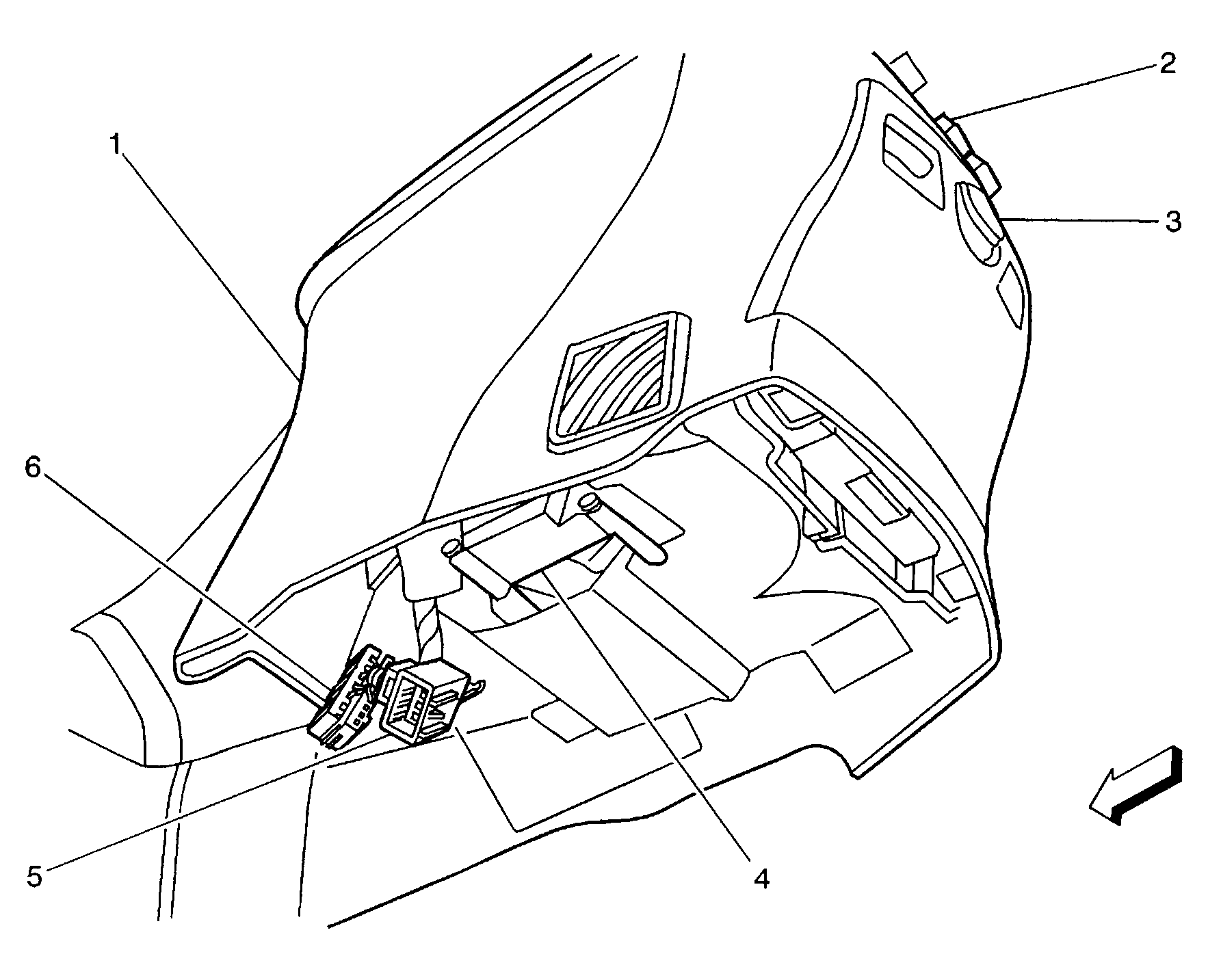

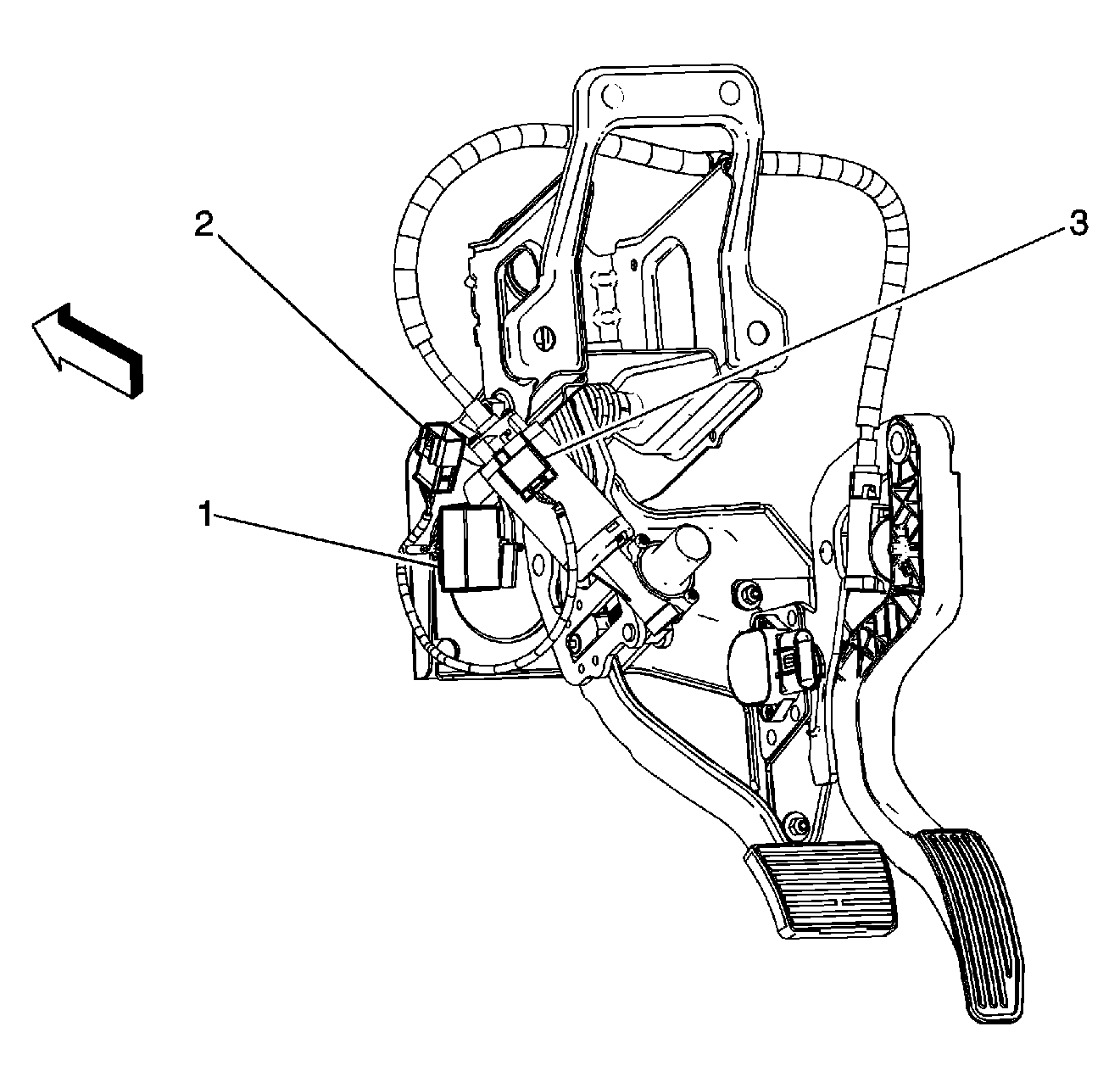

Fig 25: Under Left Side Of Dash
Courtesy of GENERAL MOTORS CORP.
Fig 26: Lower Left Side Of Engine (4.2L)
Courtesy of GENERAL MOTORS CORP.
Fig 27: Top Of Engine (4.2L)
Courtesy of GENERAL MOTORS CORP.
Fig 28: Right Side Of Transmission
Courtesy of GENERAL MOTORS CORP.
Fig 29: Center Of Dash
Courtesy of GENERAL MOTORS CORP.

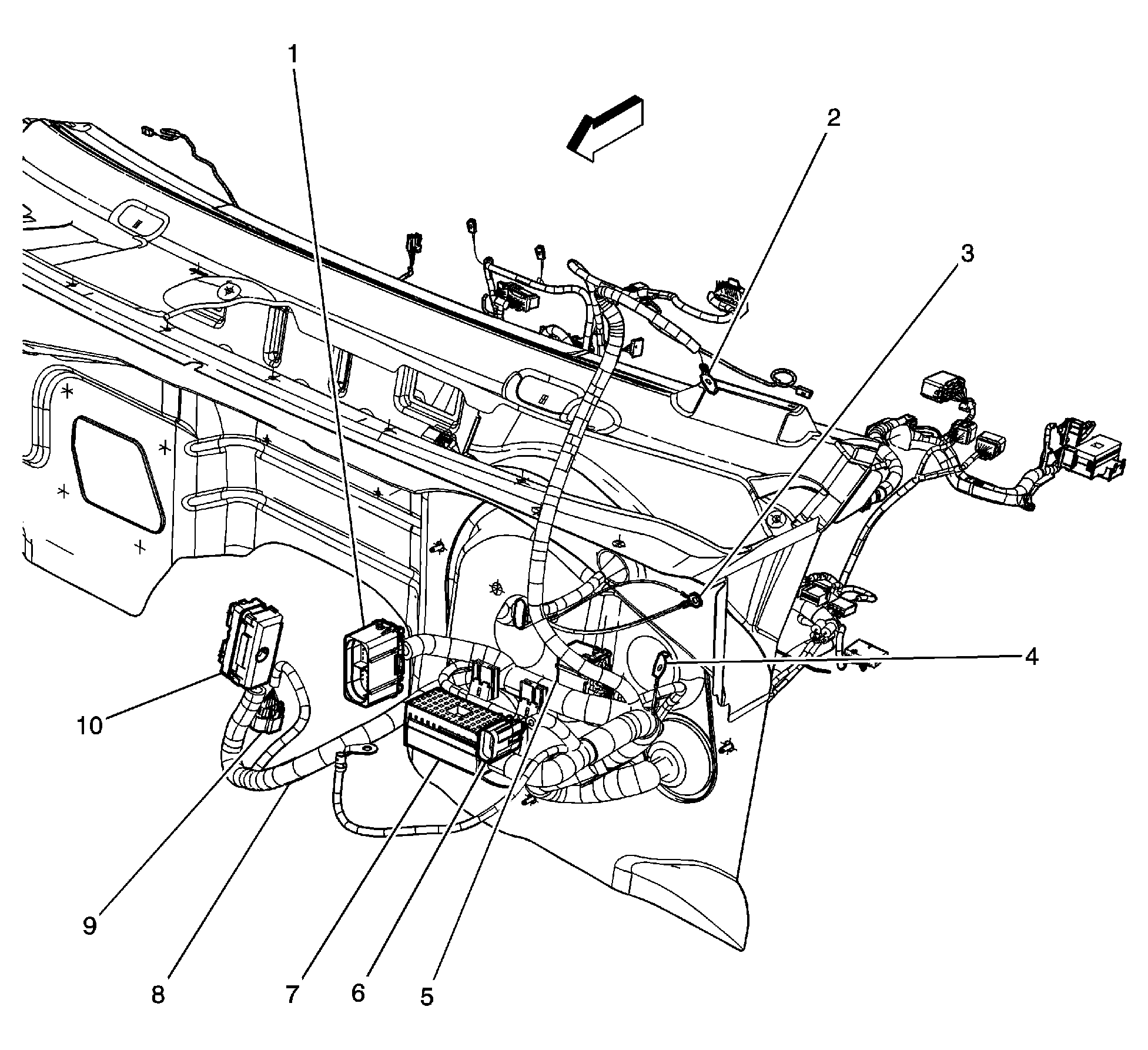

Fig 30: Rear Of Engine Compartment
Courtesy of GENERAL MOTORS CORP.

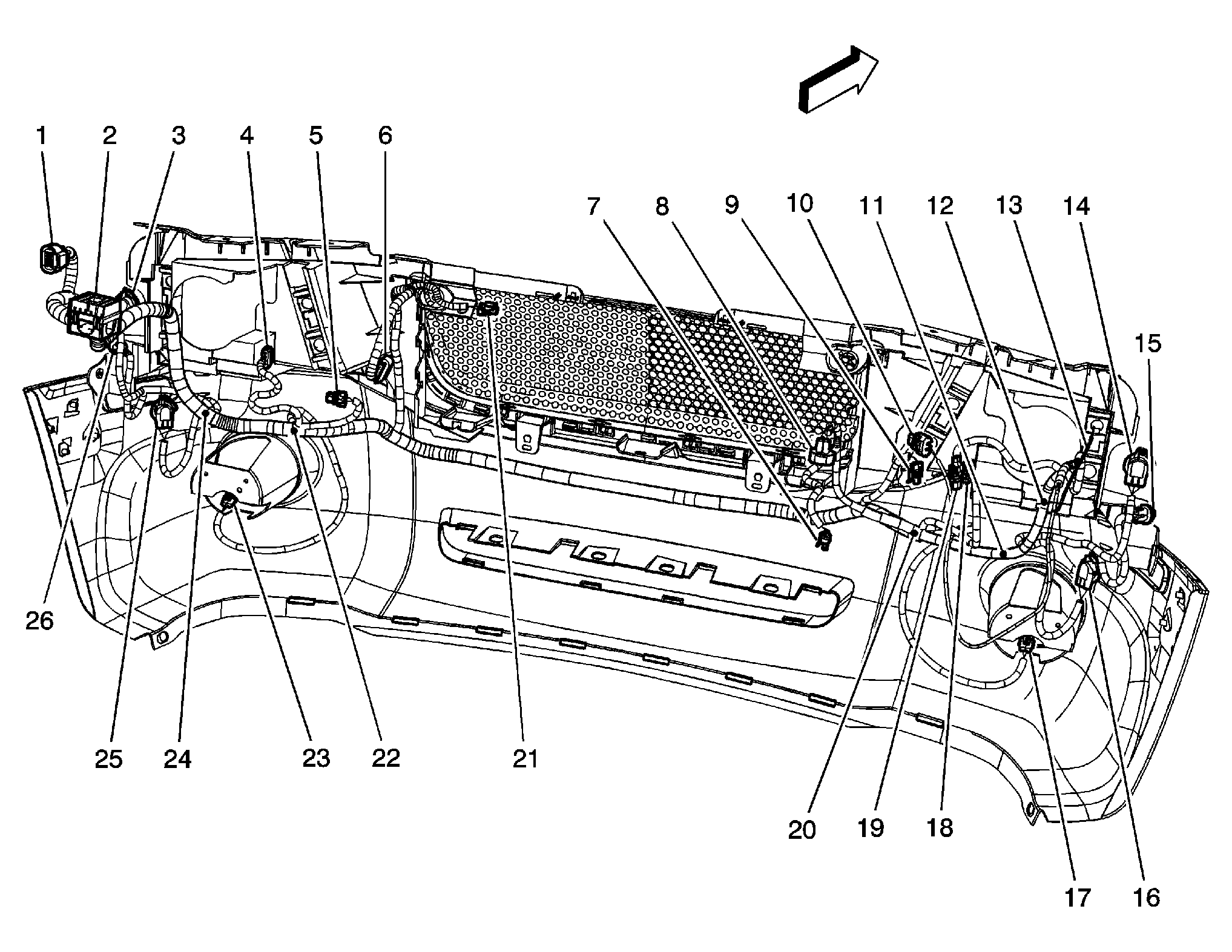

Fig 31: Rear Of Front Fascia
Courtesy of GENERAL MOTORS CORP.

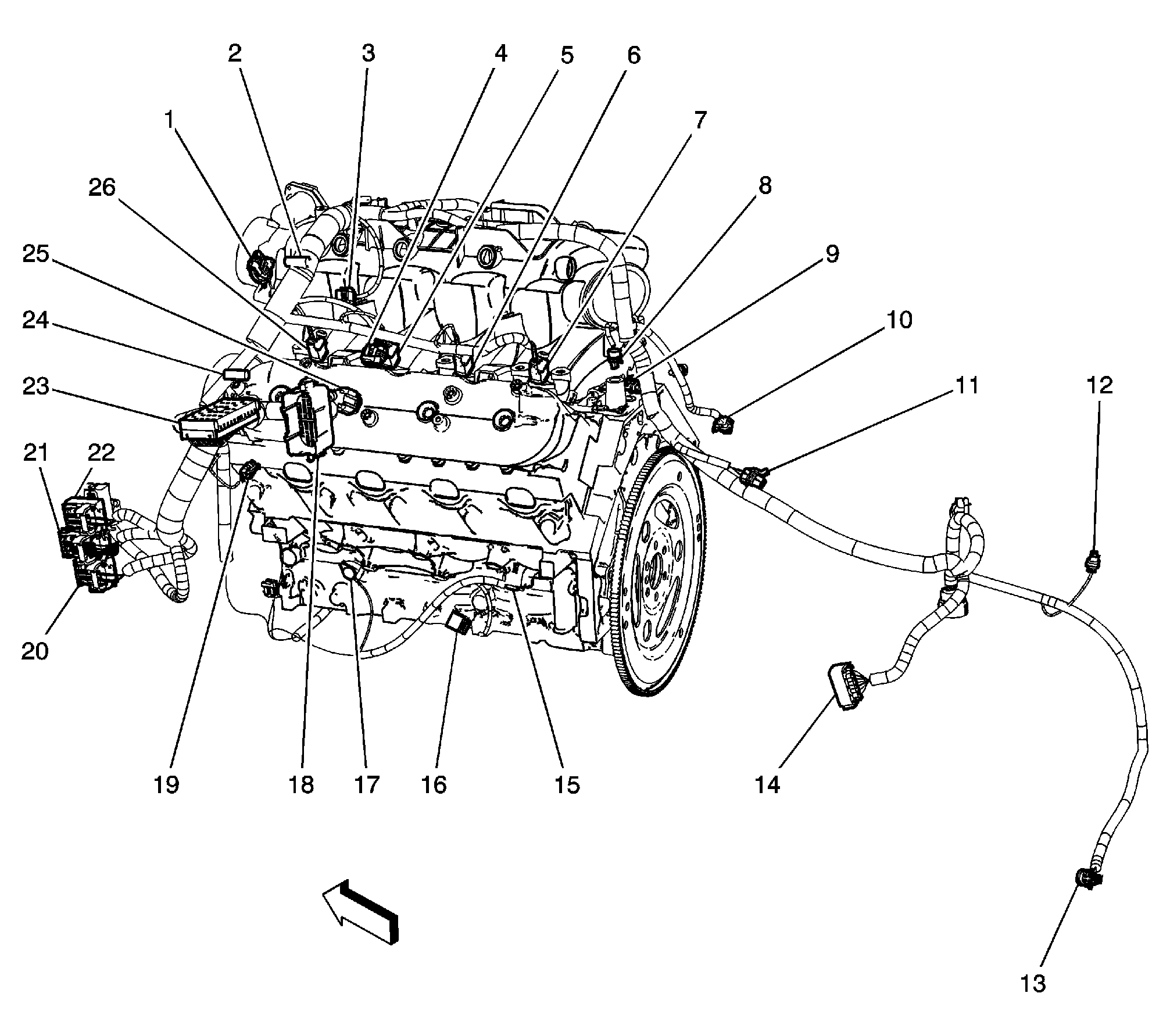

Fig 32: Left Side Of Engine (5.3L/6.0L)
Courtesy of GENERAL MOTORS CORP.

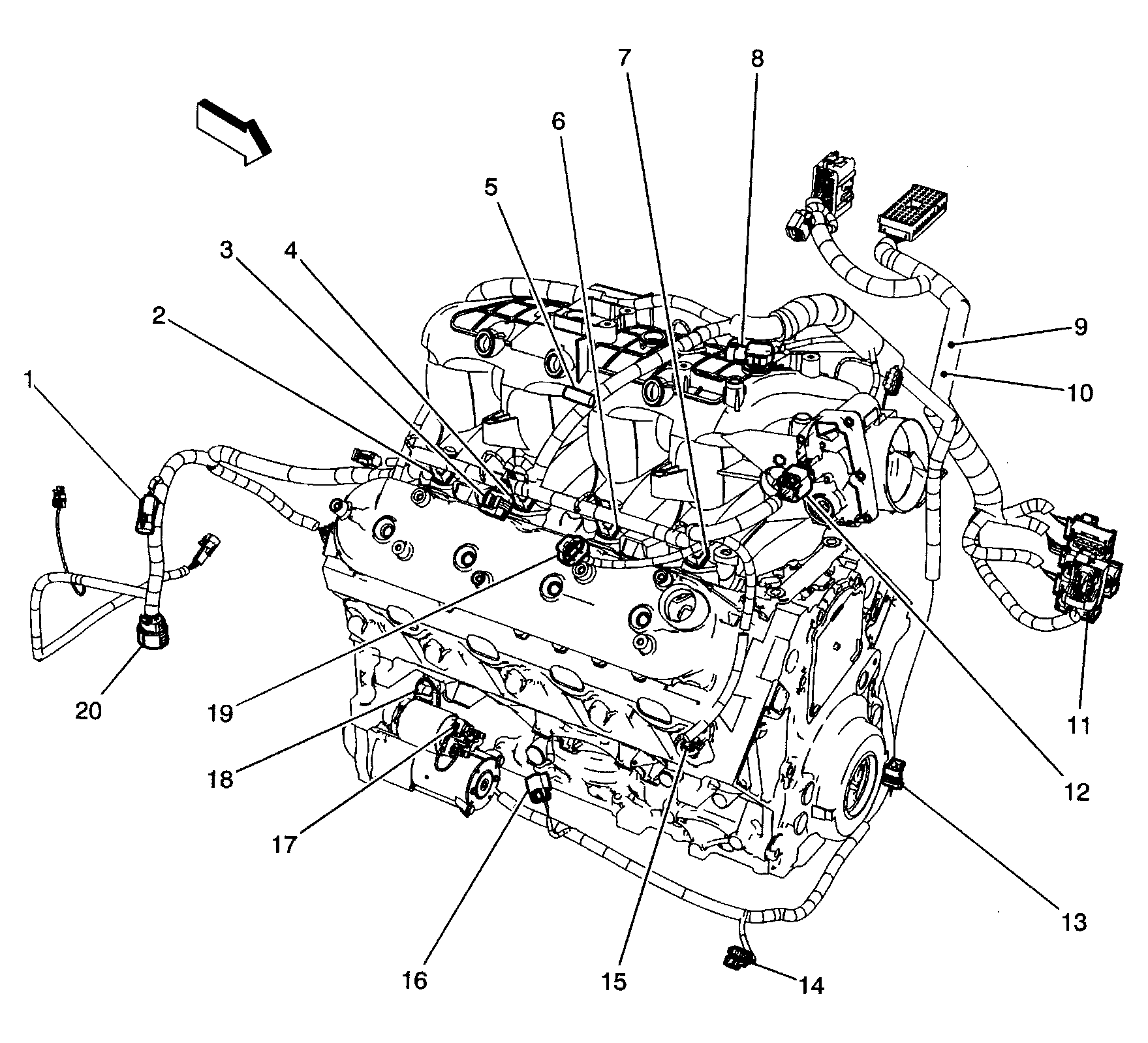

Fig 33: Right Side Of Engine (5.3L/6.0L)
Courtesy of GENERAL MOTORS CORP.

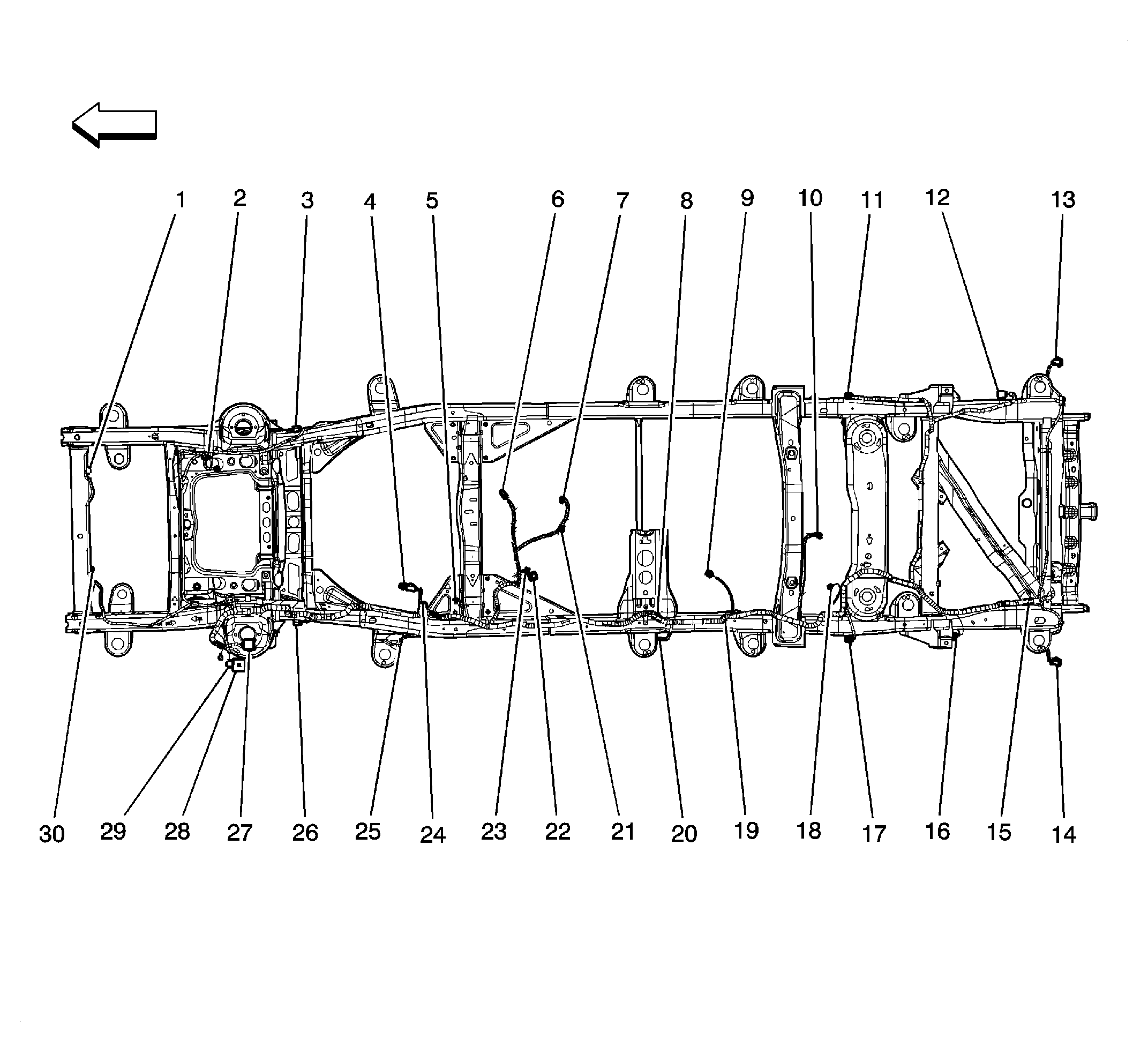

Fig 34: Chassis
Courtesy of GENERAL MOTORS CORP.
Fig 35: Rear Of Dash
Courtesy of GENERAL MOTORS CORP.

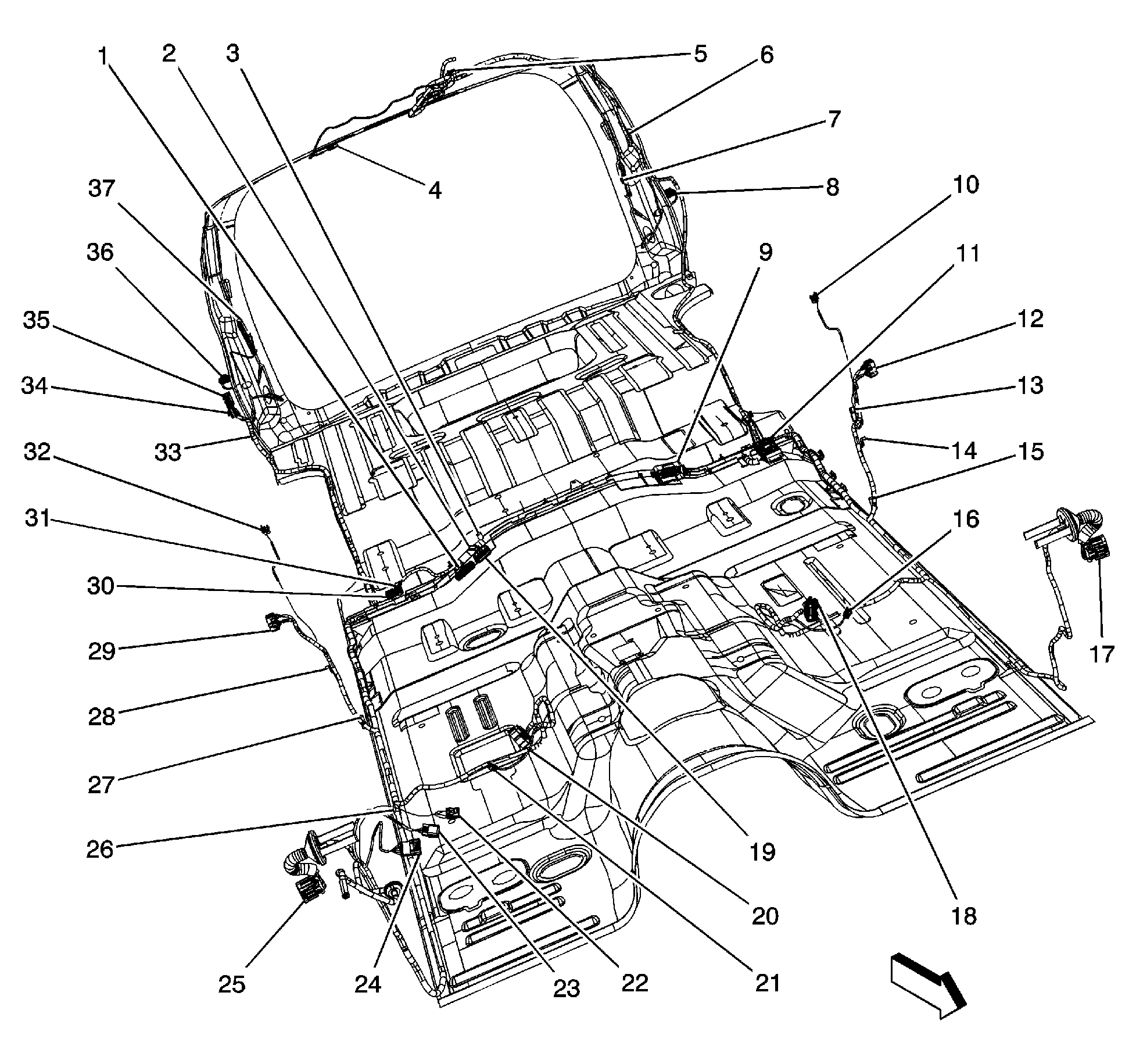

Fig 36: Passenger Compartment
Courtesy of GENERAL MOTORS CORP.
Fig 37: Under Floor Console
Courtesy of GENERAL MOTORS CORP.
Fig 38: Automatic Transmission Electronic Components
Courtesy of GENERAL MOTORS CORP.
Fig 39: Lower Left Side Of Engine (4.2L)
Courtesy of GENERAL MOTORS CORP.
Fig 40: Lower Right Side Of Engine (5.3L/6.0L)
Courtesy of GENERAL MOTORS CORP.
Fig 41: Right Rear Of Engine Compartment
Courtesy of GENERAL MOTORS CORP.

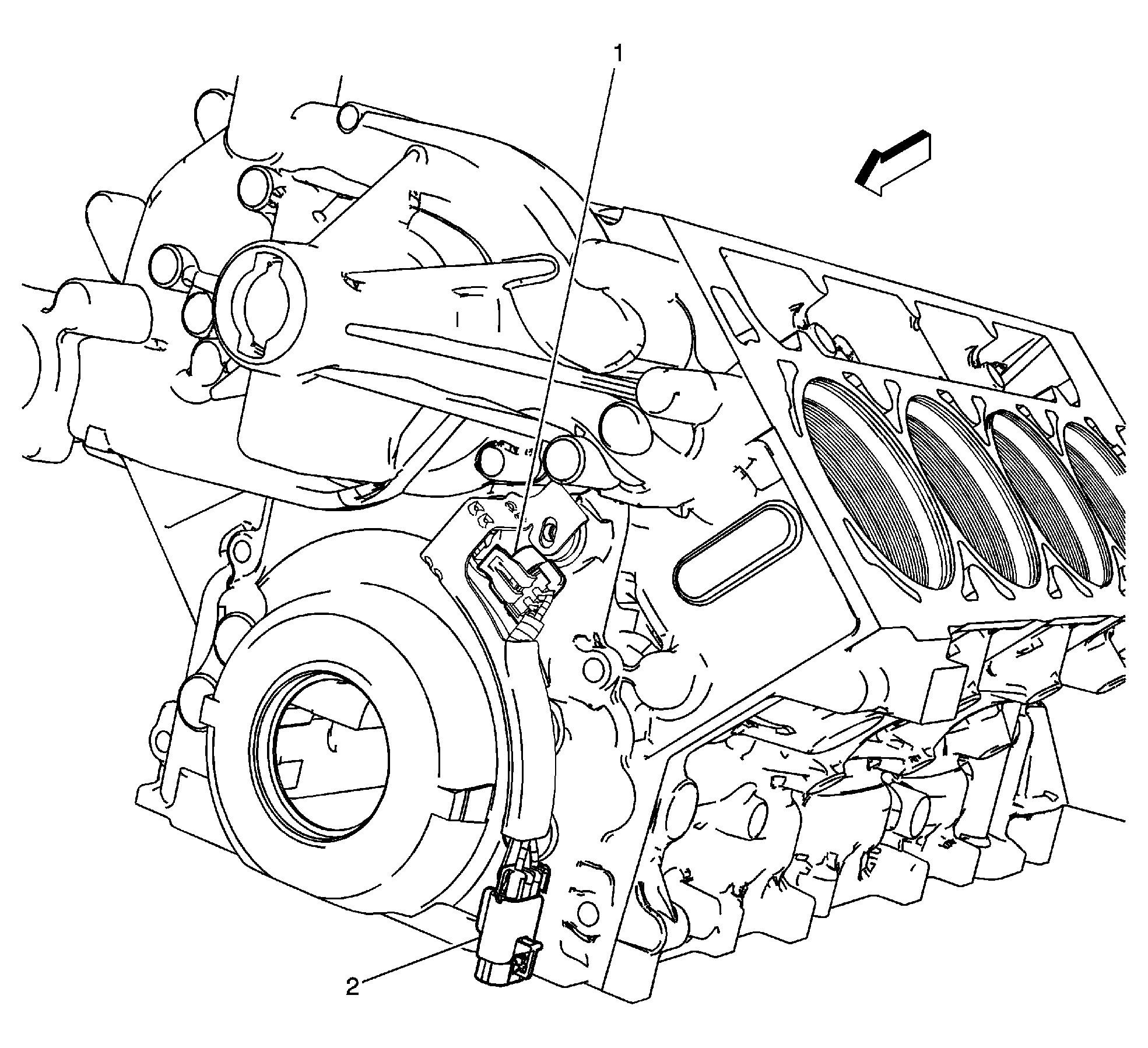

Fig 42: Left Front Of Engine (4.2L)
Courtesy of GENERAL MOTORS CORP.
Fig 43: Left "B" Pillar
Courtesy of GENERAL MOTORS CORP.
Fig 44: Right Side Of Instrument Panel Carrier
Courtesy of GENERAL MOTORS CORP.
Fig 45: Air Duct In Instrument Panel Carrier
Courtesy of GENERAL MOTORS CORP.
Fig 46: Center Section Of Instrument Panel Carrier
Courtesy of GENERAL MOTORS CORP.
Fig 47: Dash Panel
Courtesy of GENERAL MOTORS CORP.
Fig 48: Left Front Of Engine Compartment (4.2L)
Courtesy of GENERAL MOTORS CORP.

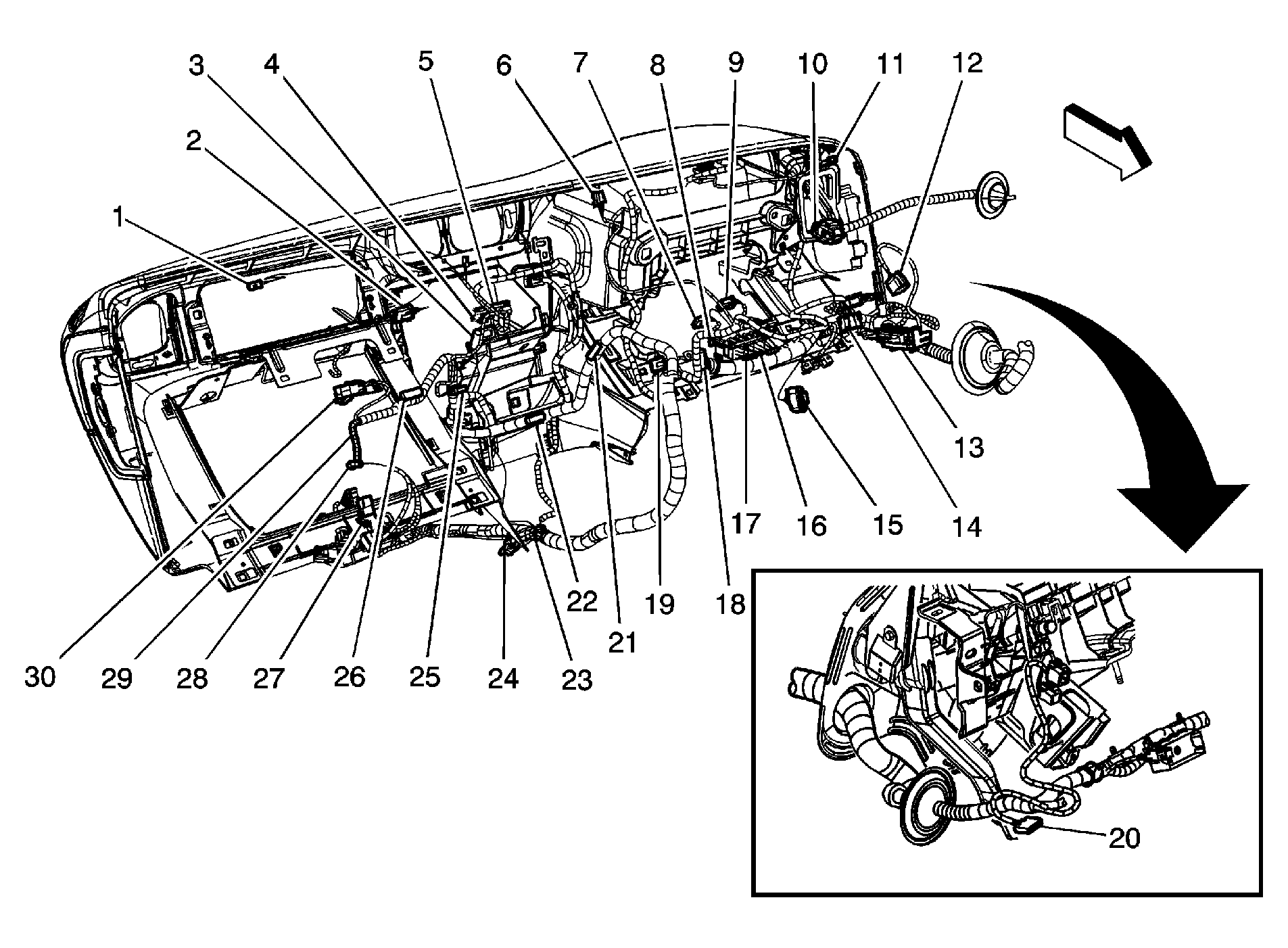

Fig 49: Instrument Panel Carrier
Courtesy of GENERAL MOTORS CORP.
Fig 50: Left Rear Of Engine Compartment
Courtesy of GENERAL MOTORS CORP.
Fig 51: Right Front Side Of Engine
Courtesy of GENERAL MOTORS CORP.

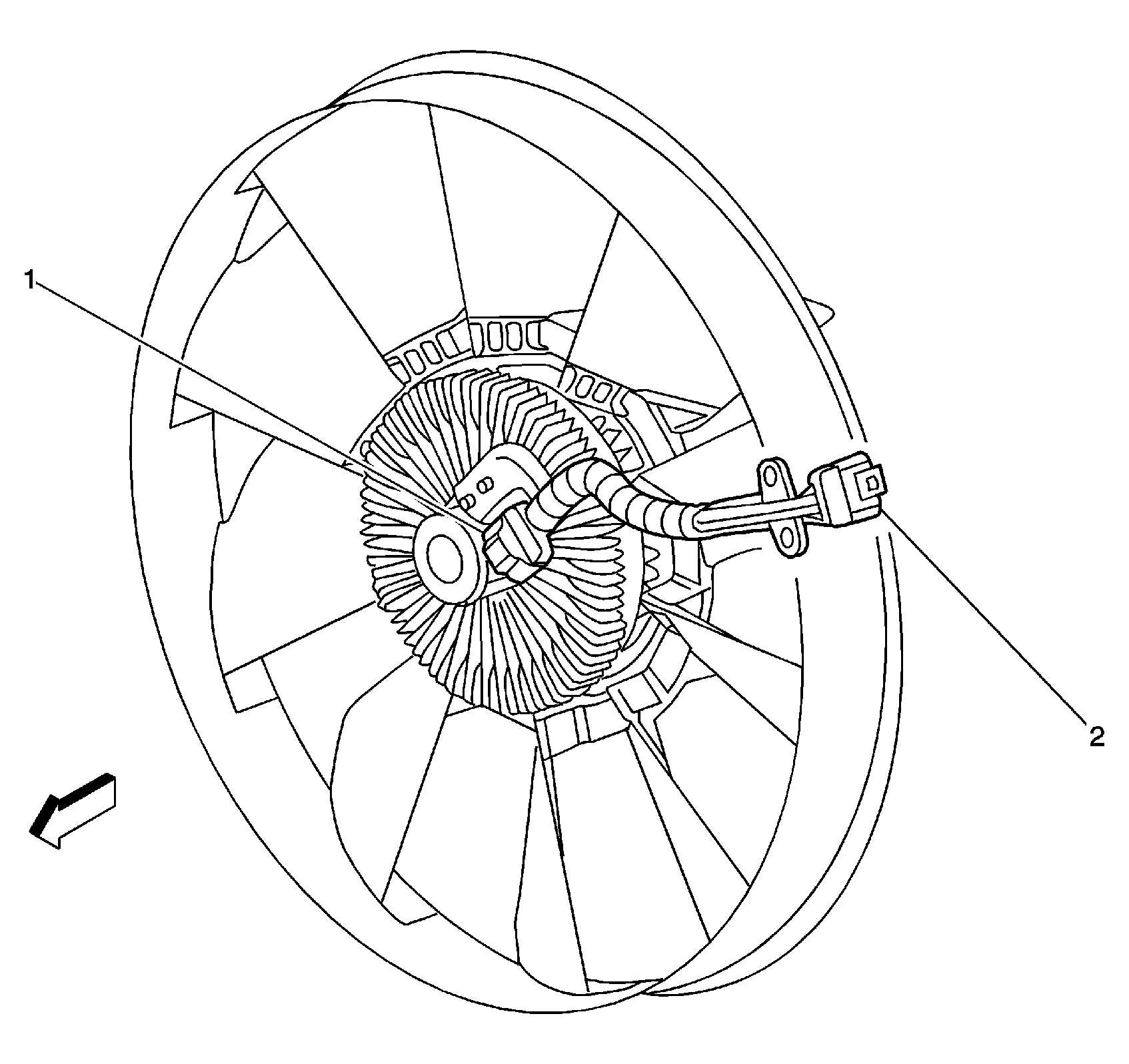

Fig 52: Front Of Engine (5.3L/6.0L)
Courtesy of GENERAL MOTORS CORP.
Fig 53: Overhead Console
Courtesy of GENERAL MOTORS CORP.
Fig 54: Lower Console
Courtesy of GENERAL MOTORS CORP.
Fig 55: Front Of Engine Compartment
Courtesy of GENERAL MOTORS CORP.
Fig 56: Lower Left Side Of Dash
Courtesy of GENERAL MOTORS CORP.

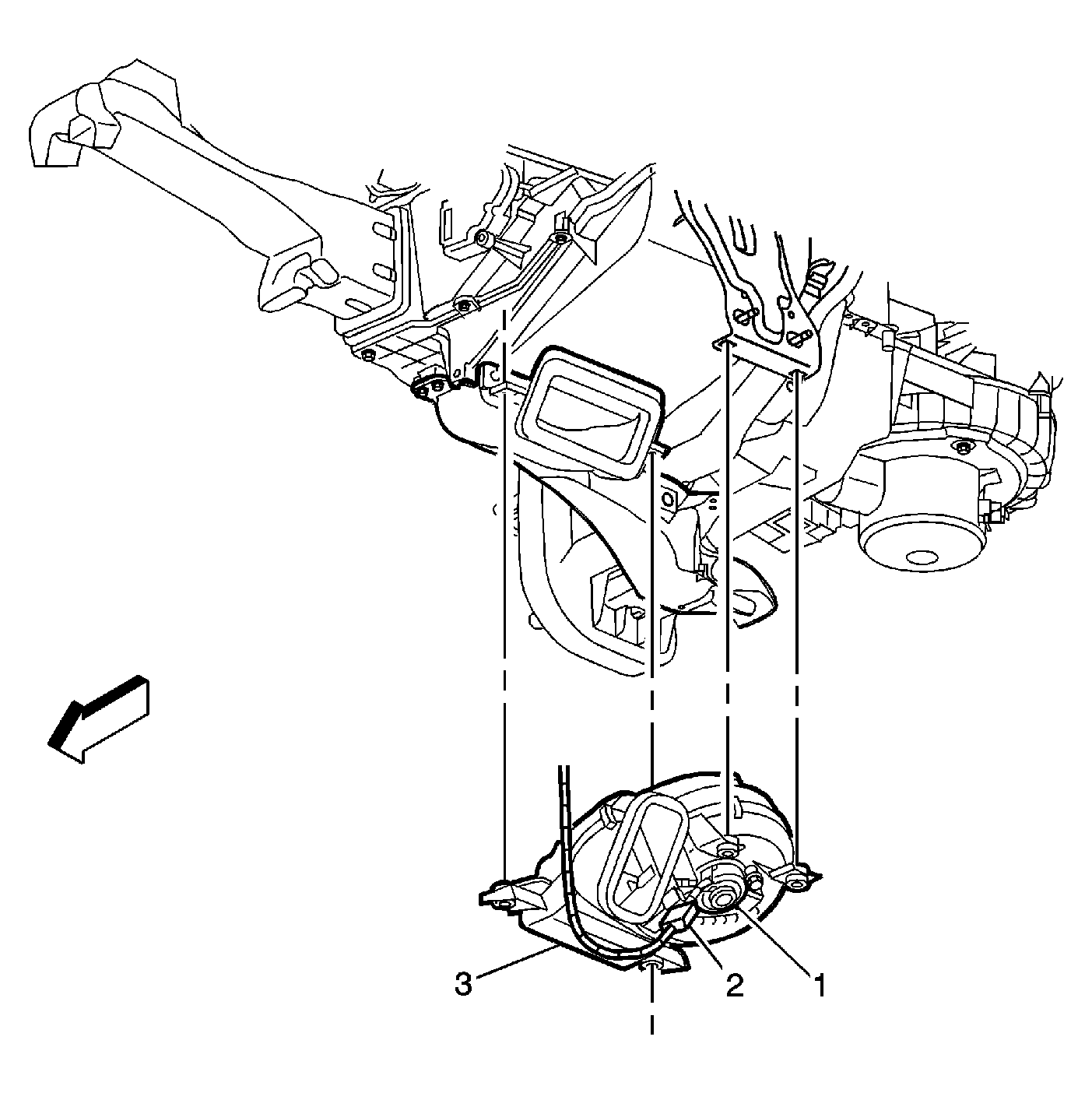

Fig 57: Behind Right Side Of Instrument Panel
Courtesy of GENERAL MOTORS CORP.

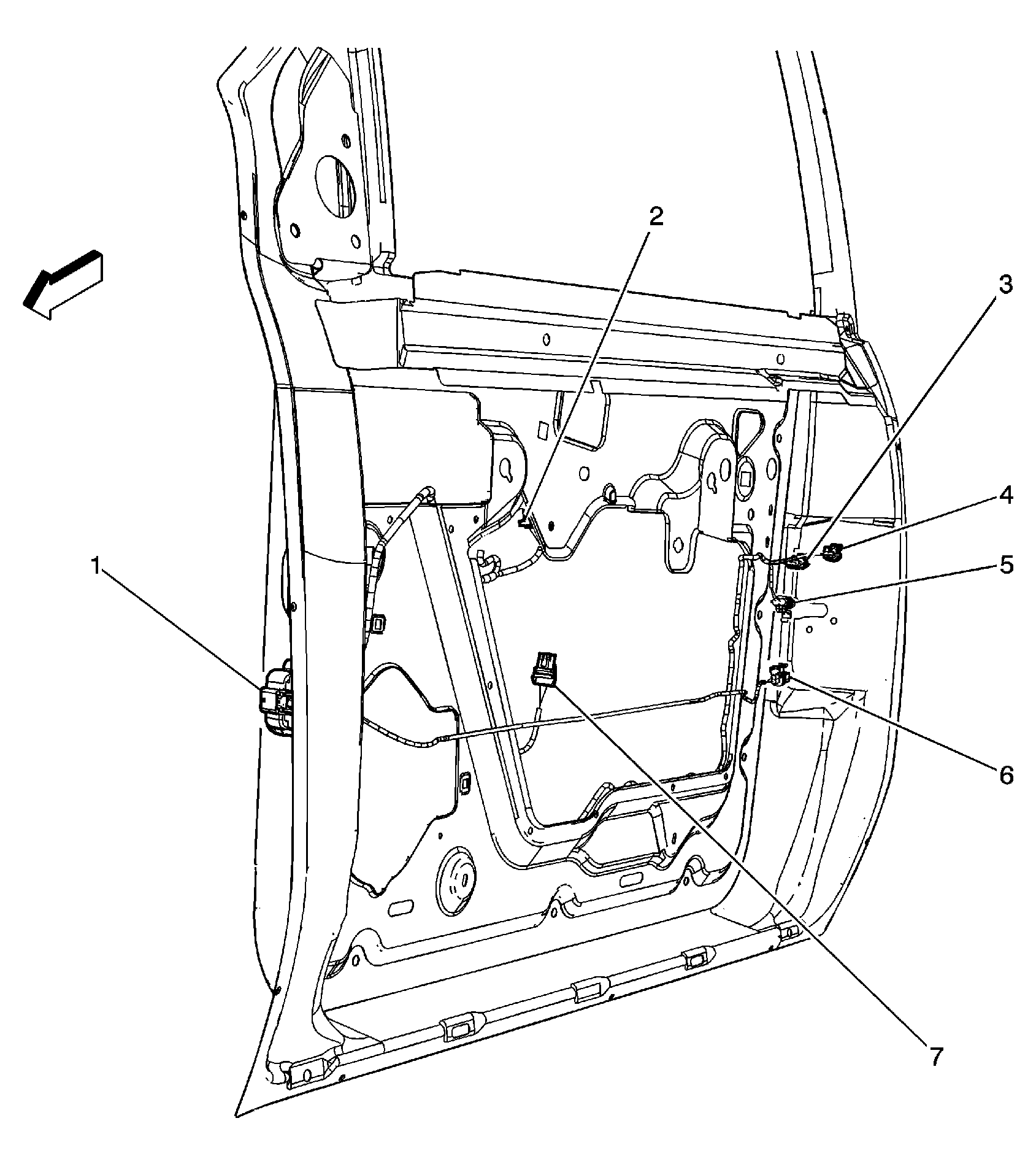

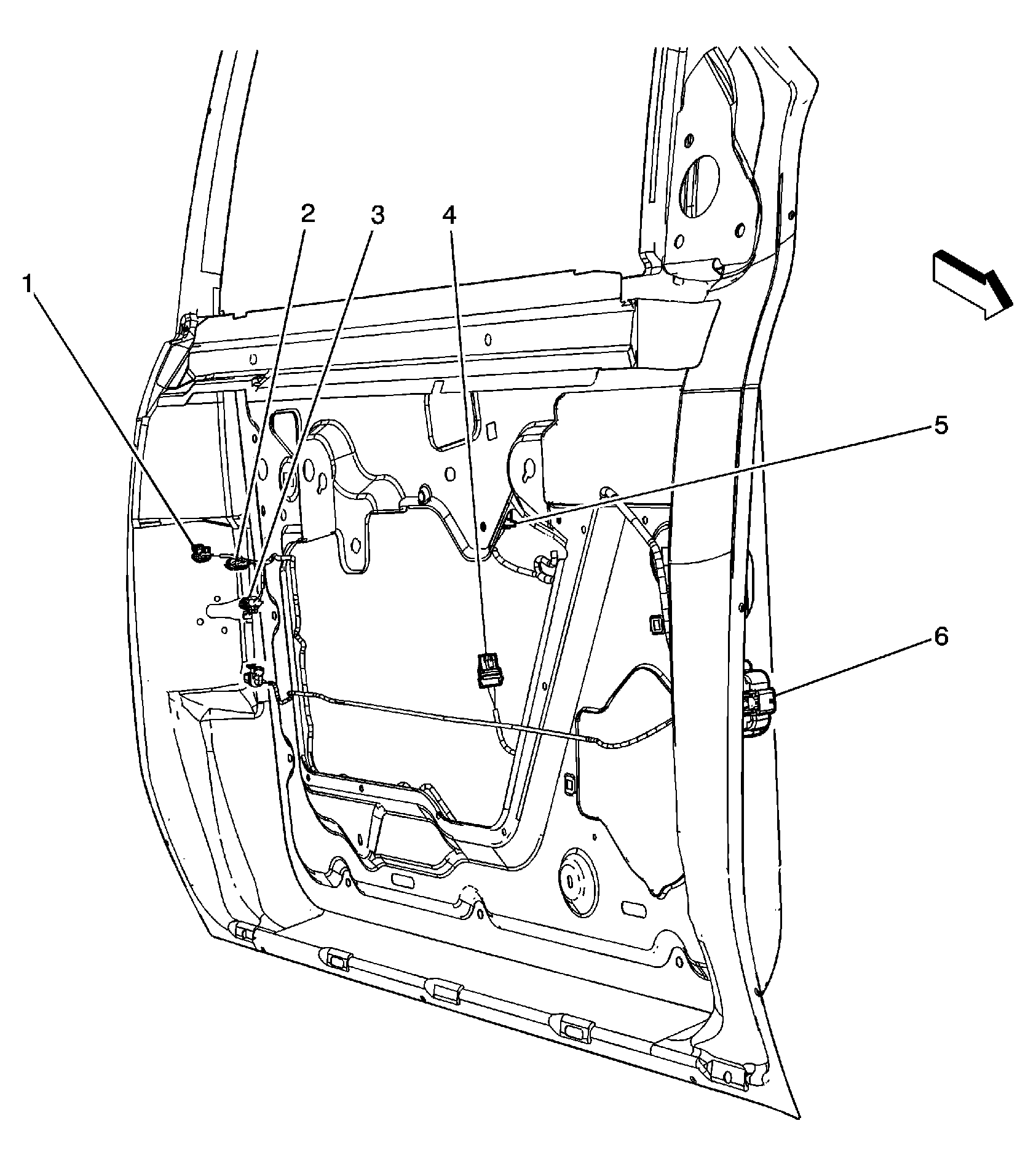

Fig 58: Driver Door
Courtesy of GENERAL MOTORS CORP.
Fig 59: Front Passenger Door
Courtesy of GENERAL MOTORS CORP.

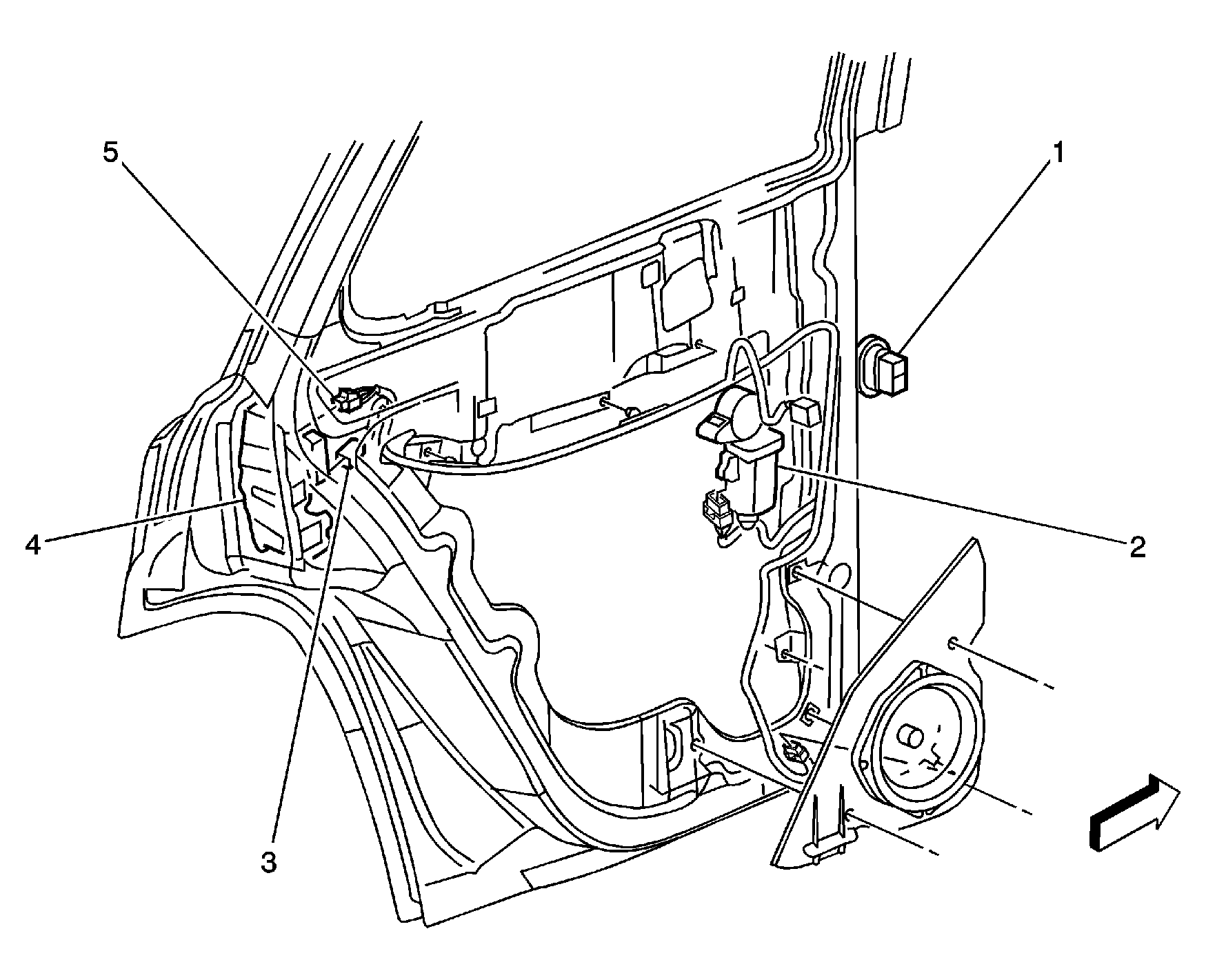

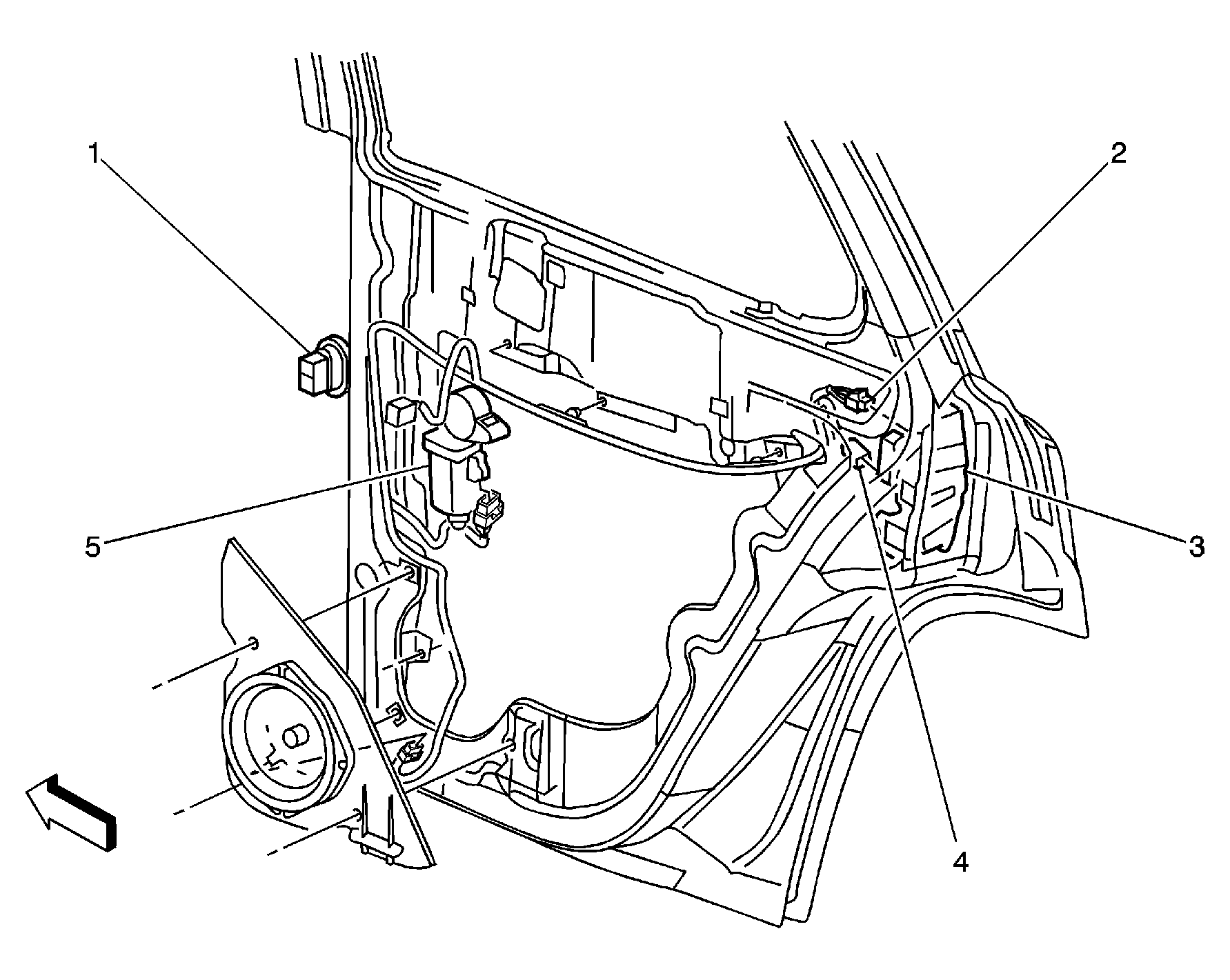

Fig 60: Left Rear Door
Courtesy of GENERAL MOTORS CORP.
Fig 61: Right Rear Door
Courtesy of GENERAL MOTORS CORP.
Fig 62: Front Of Chassis
Courtesy of GENERAL MOTORS CORP.
Fig 63: Left Side Of Engine Compartment
Courtesy of GENERAL MOTORS CORP.
Fig 64: Left Front Side Of Engine
Courtesy of GENERAL MOTORS CORP.
Fig 65: Upper Right Side Of Engine
Courtesy of GENERAL MOTORS CORP.
Fig 66: Upper Left Side Of Engine (4.2L)
Courtesy of GENERAL MOTORS CORP.
Fig 67: Left Front Of Engine (5.3L/6.0L)
Courtesy of GENERAL MOTORS CORP.
Fig 68: Behind Left Headlamp
Courtesy of GENERAL MOTORS CORP.
Fig 69: Behind Right Headlamp
Courtesy of GENERAL MOTORS CORP.
Fig 70: Below Rear Of Engine
Courtesy of GENERAL MOTORS CORP.
Fig 71: Lower Left Front Of Engine Compartment
Courtesy of GENERAL MOTORS CORP.

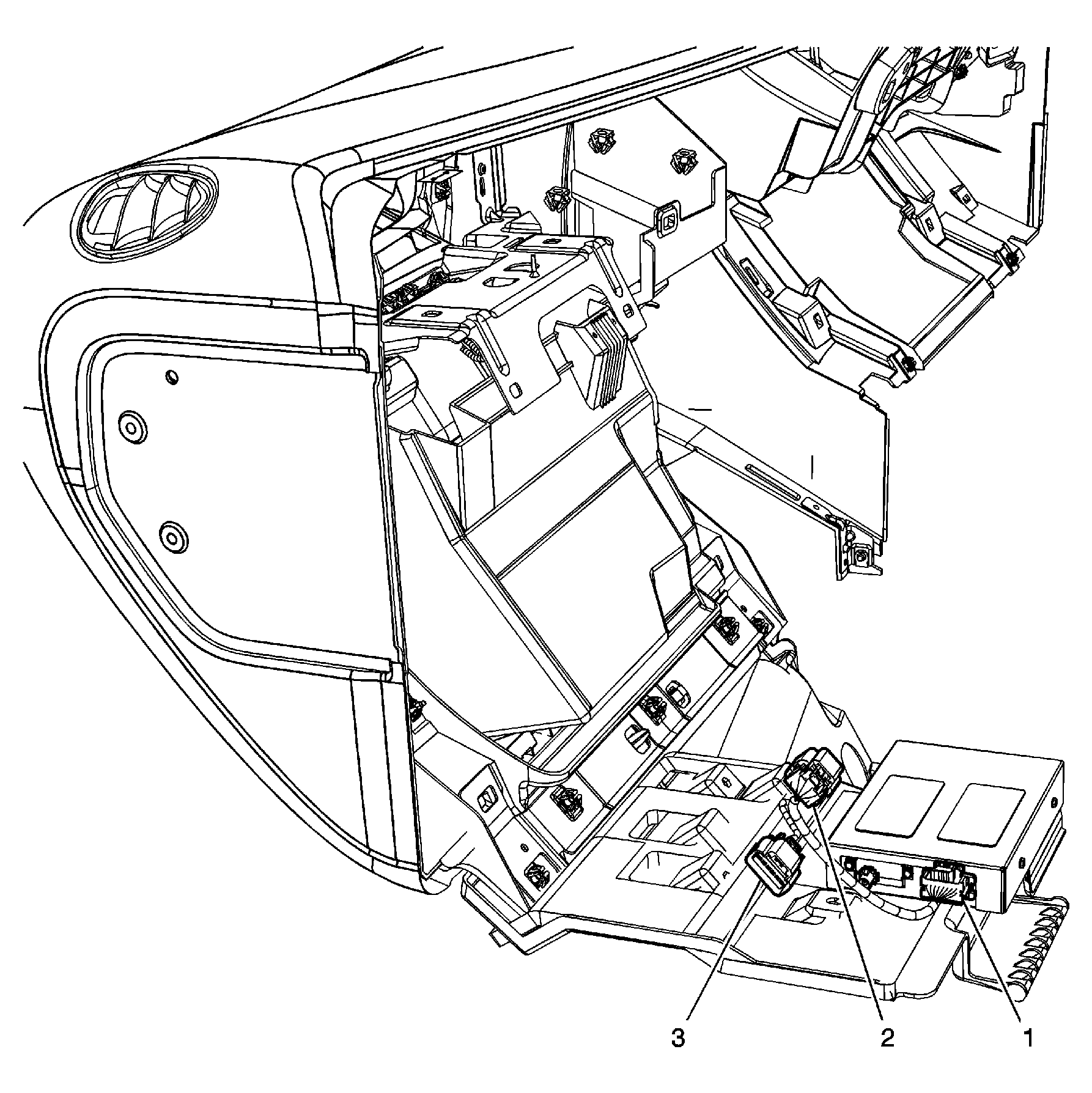

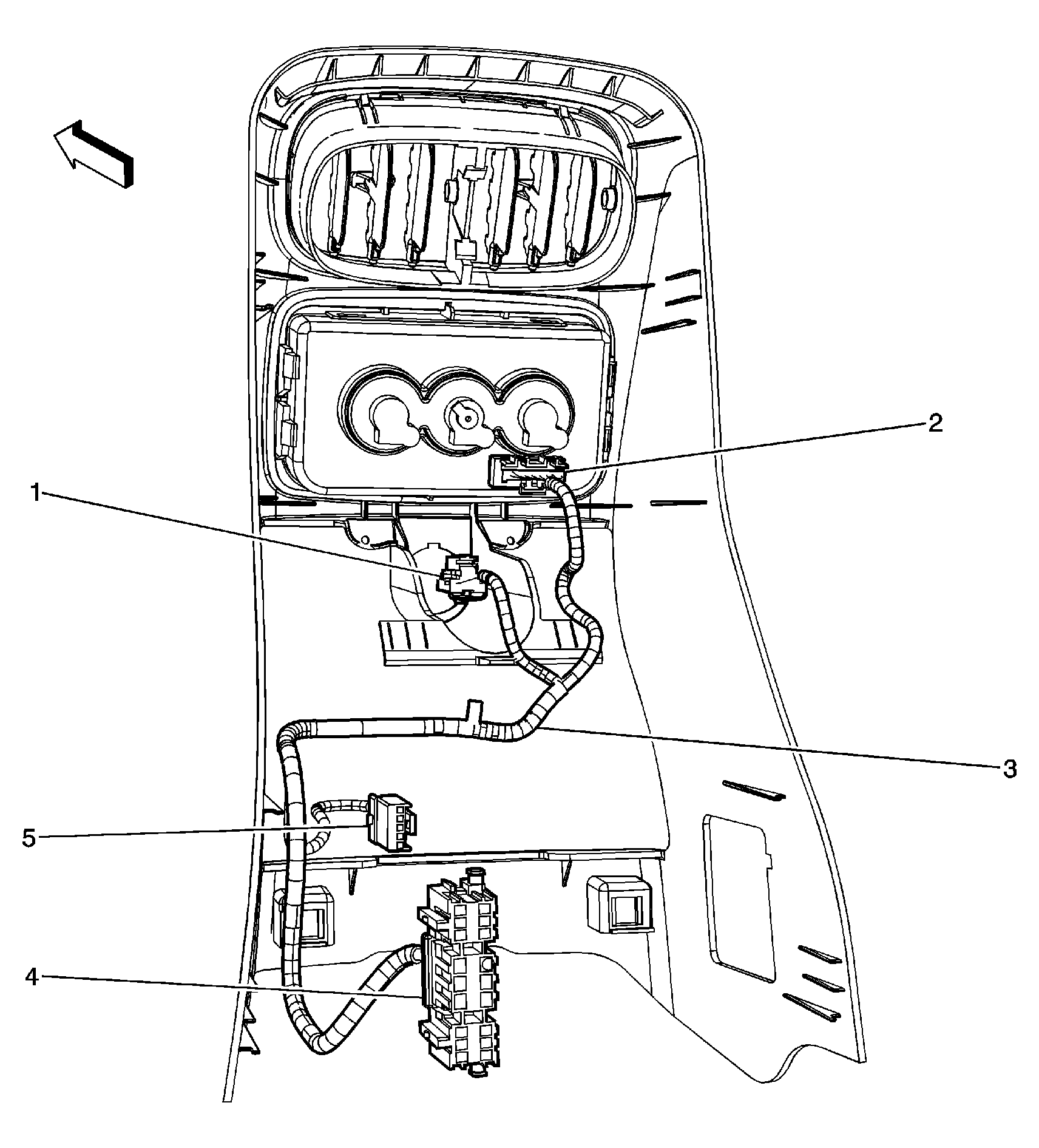

Fig 72: Center Of Instrument Panel
Courtesy of GENERAL MOTORS CORP.
Fig 73: Steering Wheel Column
Courtesy of GENERAL MOTORS CORP.
Fig 74: Rear Floor
Courtesy of GENERAL MOTORS CORP.

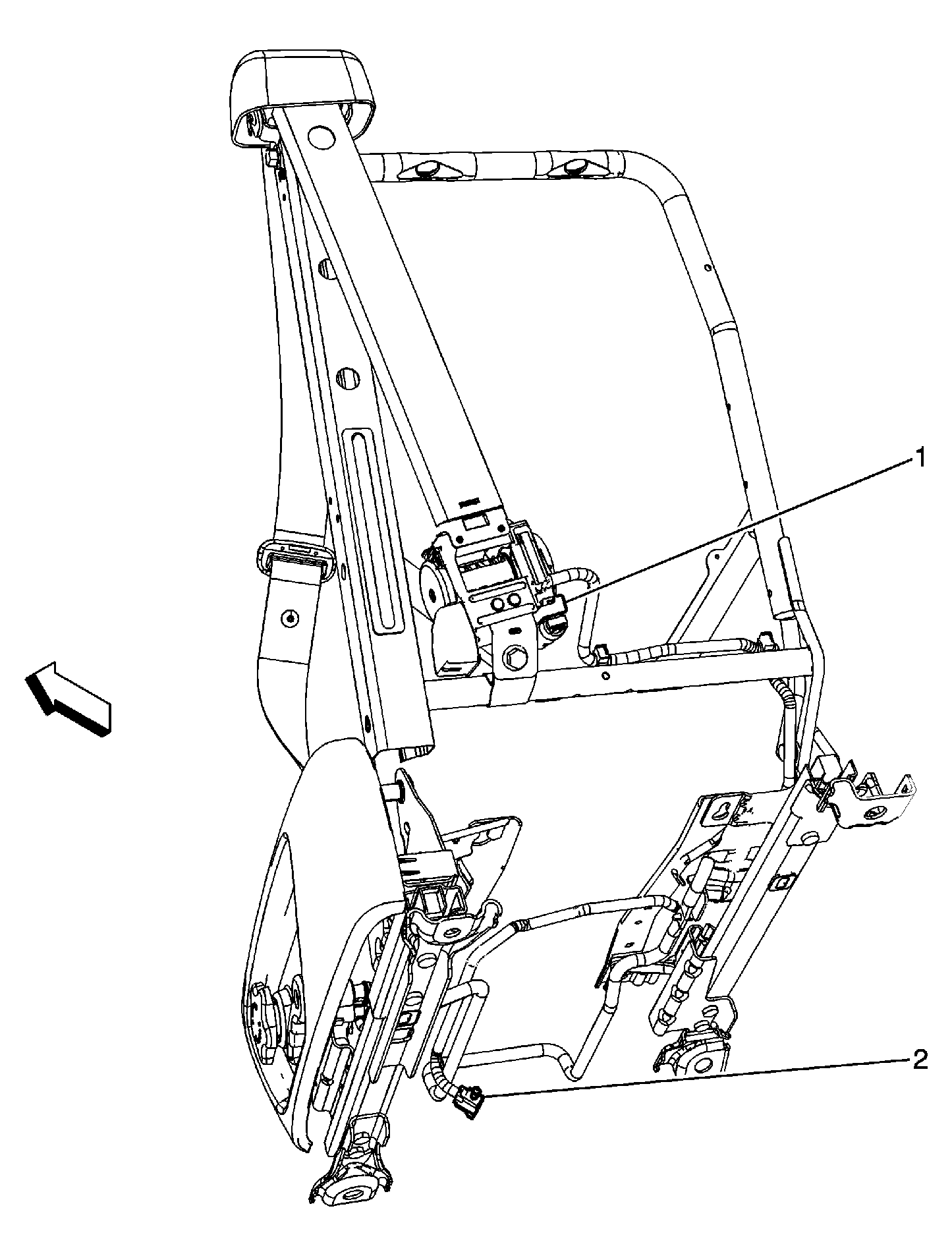

Fig 75: Beneath Passenger Seat Cushion
Courtesy of GENERAL MOTORS CORP.
Fig 76: Right Rear Of Passenger Seat
Courtesy of GENERAL MOTORS CORP.
Fig 77: Under Driver Seat
Courtesy of GENERAL MOTORS CORP.
Fig 78: Under Passenger Seat
Courtesy of GENERAL MOTORS CORP.
Fig 79: Driver's Door
Courtesy of GENERAL MOTORS CORP.
Fig 80: Passenger's Door
Courtesy of GENERAL MOTORS CORP.
Fig 81: Lower Left Side Of Engine (5.3L/6.0L)
Courtesy of GENERAL MOTORS CORP.

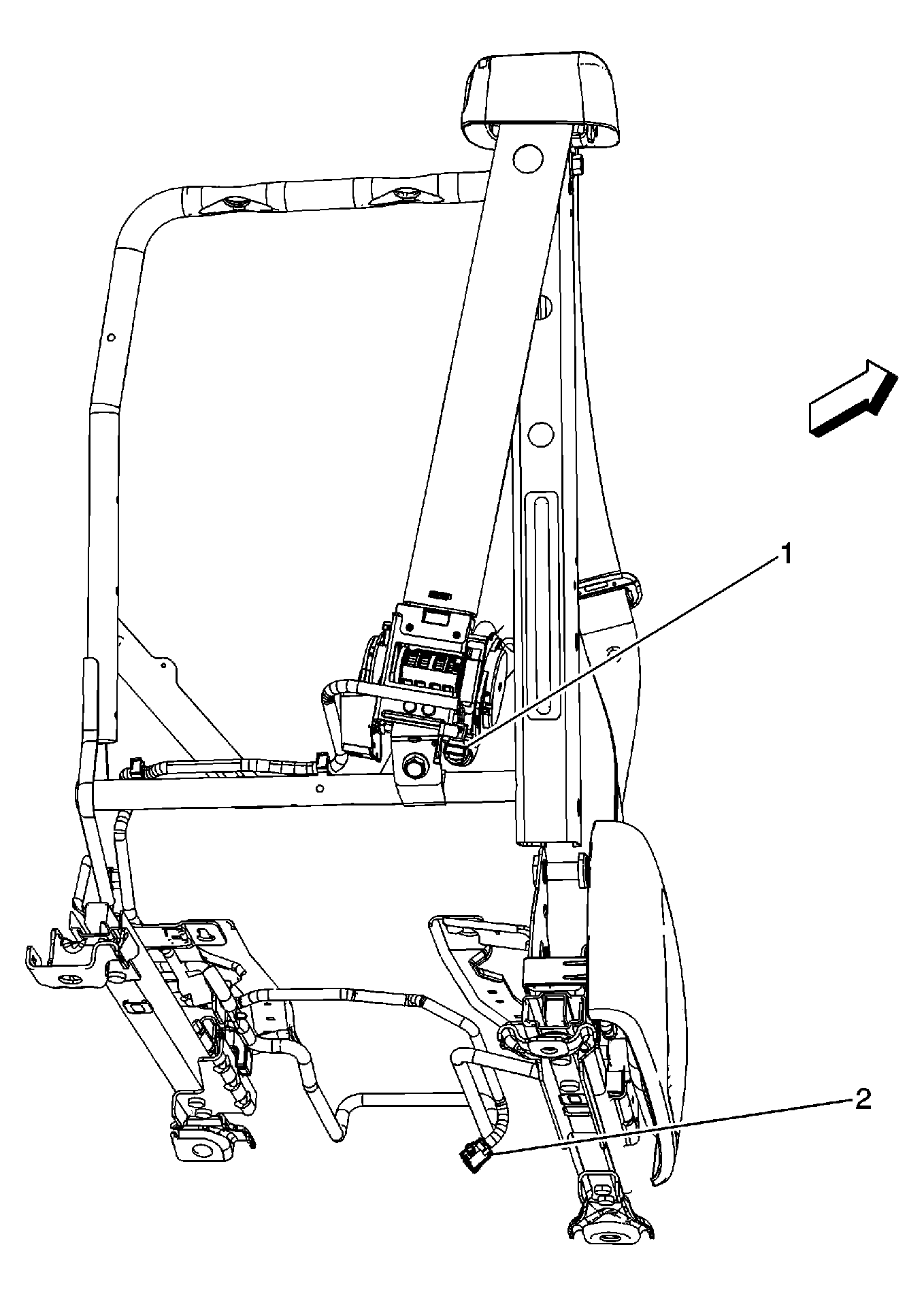

Fig 82: Behind Driver Seat
Courtesy of GENERAL MOTORS CORP.
Fig 83: Behind Passenger Seat
Courtesy of GENERAL MOTORS CORP.
Fig 84: Beneath Driver Seat Cushion
Courtesy of GENERAL MOTORS CORP.
Fig 85: Left Side Of Automatic Transmission
Courtesy of GENERAL MOTORS CORP.
Fig 86: Center Of Rear Floor
Courtesy of GENERAL MOTORS CORP.
Fig 87: Upper Right Side Of Engine
Courtesy of GENERAL MOTORS CORP.
Fig 88: Sunroof Motor
Courtesy of GENERAL MOTORS CORP.
Fig 89: Rear Chassis
Courtesy of GENERAL MOTORS CORP.
Fig 90: Steering Column
Courtesy of GENERAL MOTORS CORP.
Fig 91: Lower Left Side Of Instrument Carrier Support
Courtesy of GENERAL MOTORS CORP.
Fig 92: Left Front Of Engine Compartment
Courtesy of GENERAL MOTORS CORP.
Fig 93: Rear Of Engine (5.3L/6.0L)
Courtesy of GENERAL MOTORS CORP.
Fig 94: Under Front Passenger Seat
Courtesy of GENERAL MOTORS CORP.

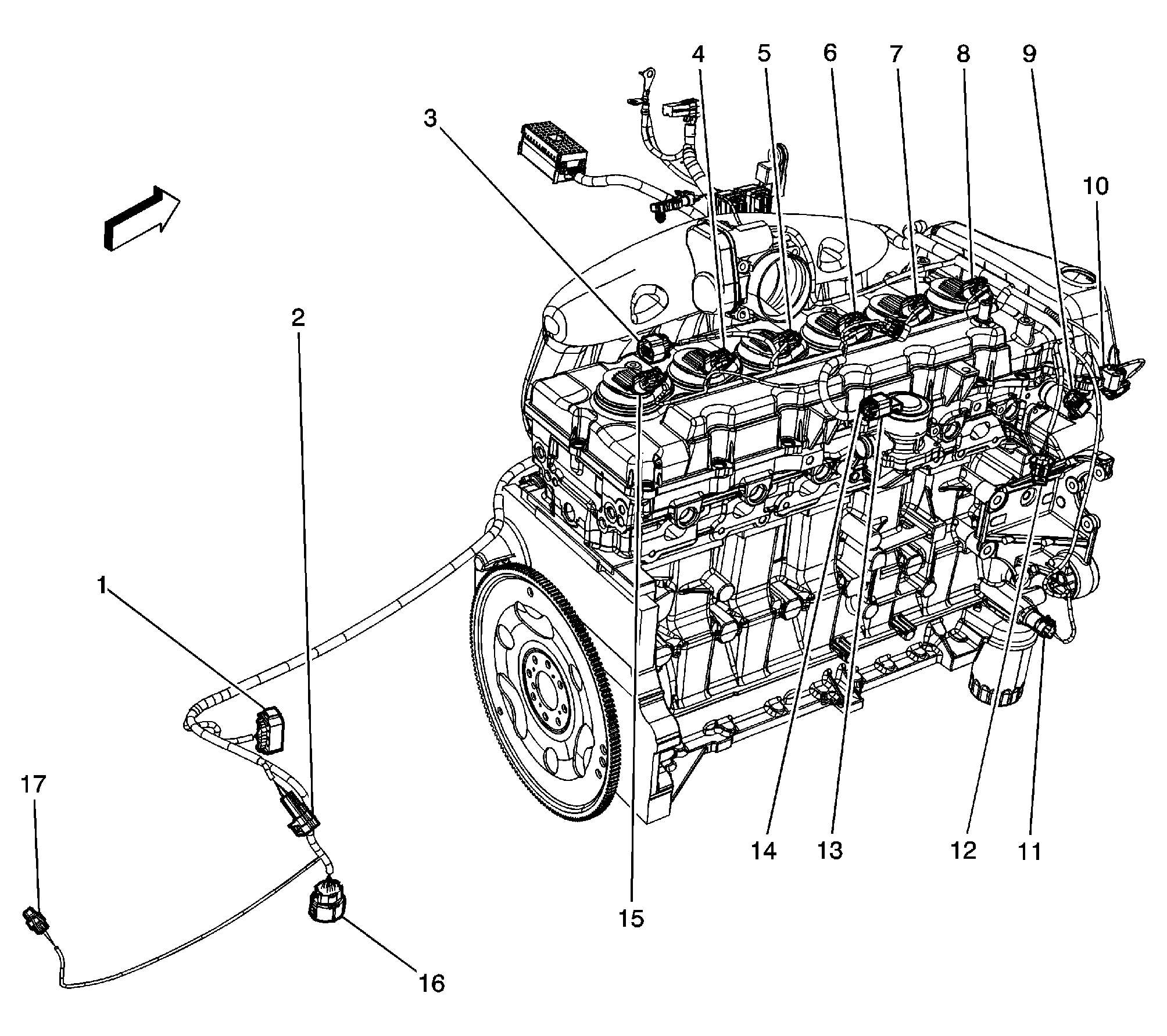

Fig 95: Engine (4.2L)
Courtesy of GENERAL MOTORS CORP.
Fig 96: Front Of Dash
Courtesy of GENERAL MOTORS CORP.

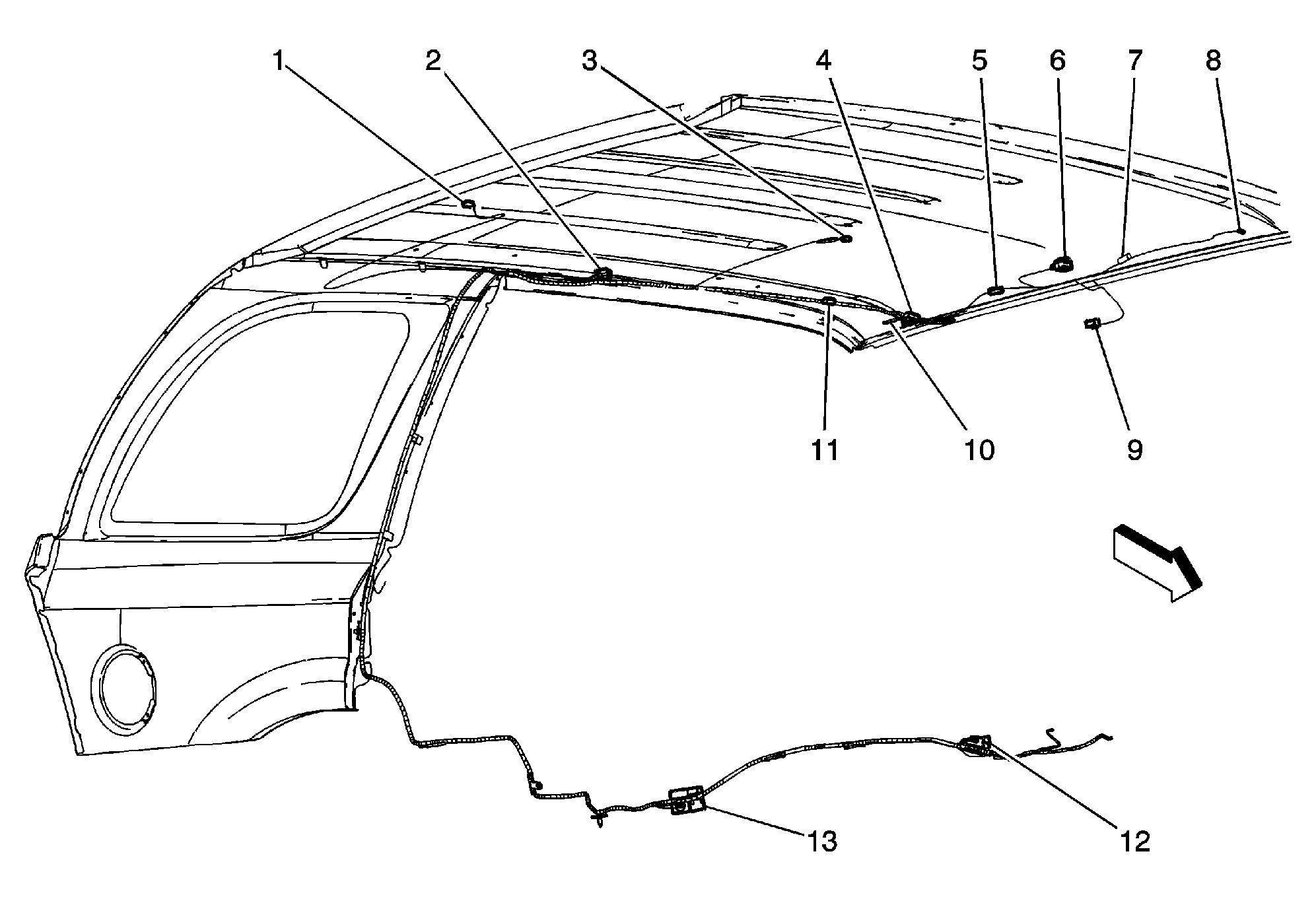

Fig 97: Headliner
Courtesy of GENERAL MOTORS CORP.
Fig 98: Underhood Fuse Block (4.2L)
Courtesy of GENERAL MOTORS CORP.
Fig 99: Behind Driver's Seat
Courtesy of GENERAL MOTORS CORP.
Fig 100: Behind Front Passenger's Seat
Courtesy of GENERAL MOTORS CORP.
Fig 101: Driver's Door
Courtesy of GENERAL MOTORS CORP.
Fig 102: Right Front Door
Courtesy of GENERAL MOTORS CORP.
Fig 103: Left Side Of Engine Compartment
Courtesy of GENERAL MOTORS CORP.
Fig 104: Lower Left Side Of Engine (5.3L/6.0L)
Courtesy of GENERAL MOTORS CORP.
Fig 105: Lower Left Side Of Engine (4.2L)
Courtesy of GENERAL MOTORS CORP.
Fig 106: Right Front Of Engine (5.3L/6.0L)
Courtesy of GENERAL MOTORS CORP.
Fig 107: Left Side Of Engine (5.3L/6.0L)
Courtesy of GENERAL MOTORS CORP.
Fig 108: Left "C" Pillar
Courtesy of GENERAL MOTORS CORP.
Fig 109: Left "D" Pillar
Courtesy of GENERAL MOTORS CORP.
Fig 110: Left Rear Of Chassis
Courtesy of GENERAL MOTORS CORP.
Fig 111: Underhood Fuse Block (5.3L/6.0L)
Courtesy of GENERAL MOTORS CORP.
Fig 112: Rear Fuse Block
Courtesy of GENERAL MOTORS CORP.
Fig 113: Rear Of Vehicle
Courtesy of GENERAL MOTORS CORP.

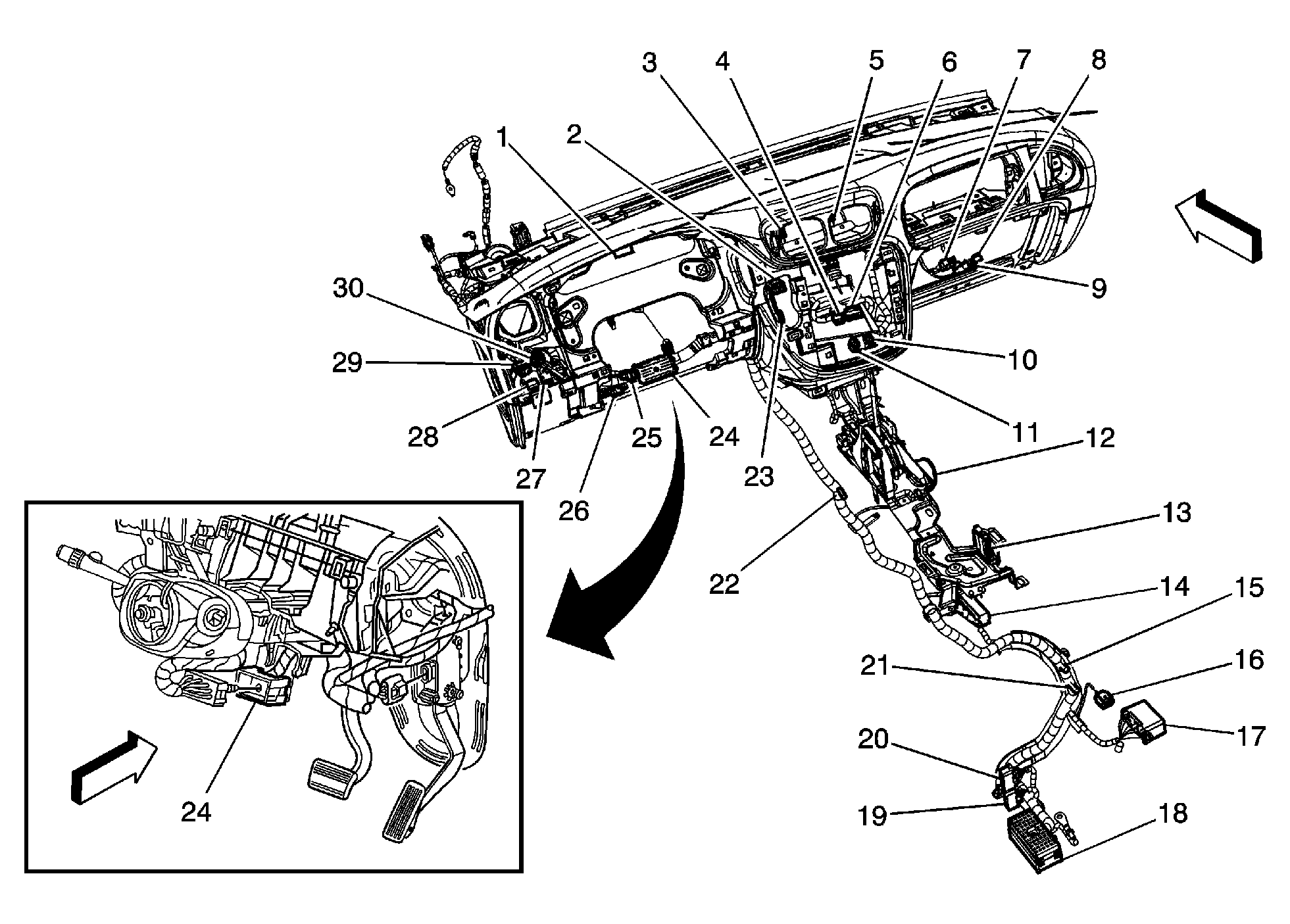

Fig 114: Instrument Panel Carrier
Courtesy of GENERAL MOTORS CORP.
Fig 115: Left Side Of Engine Compartment (5.3L/6.0L)
Courtesy of GENERAL MOTORS CORP.
Fig 116: Left Frame Rail
Courtesy of GENERAL MOTORS CORP.
