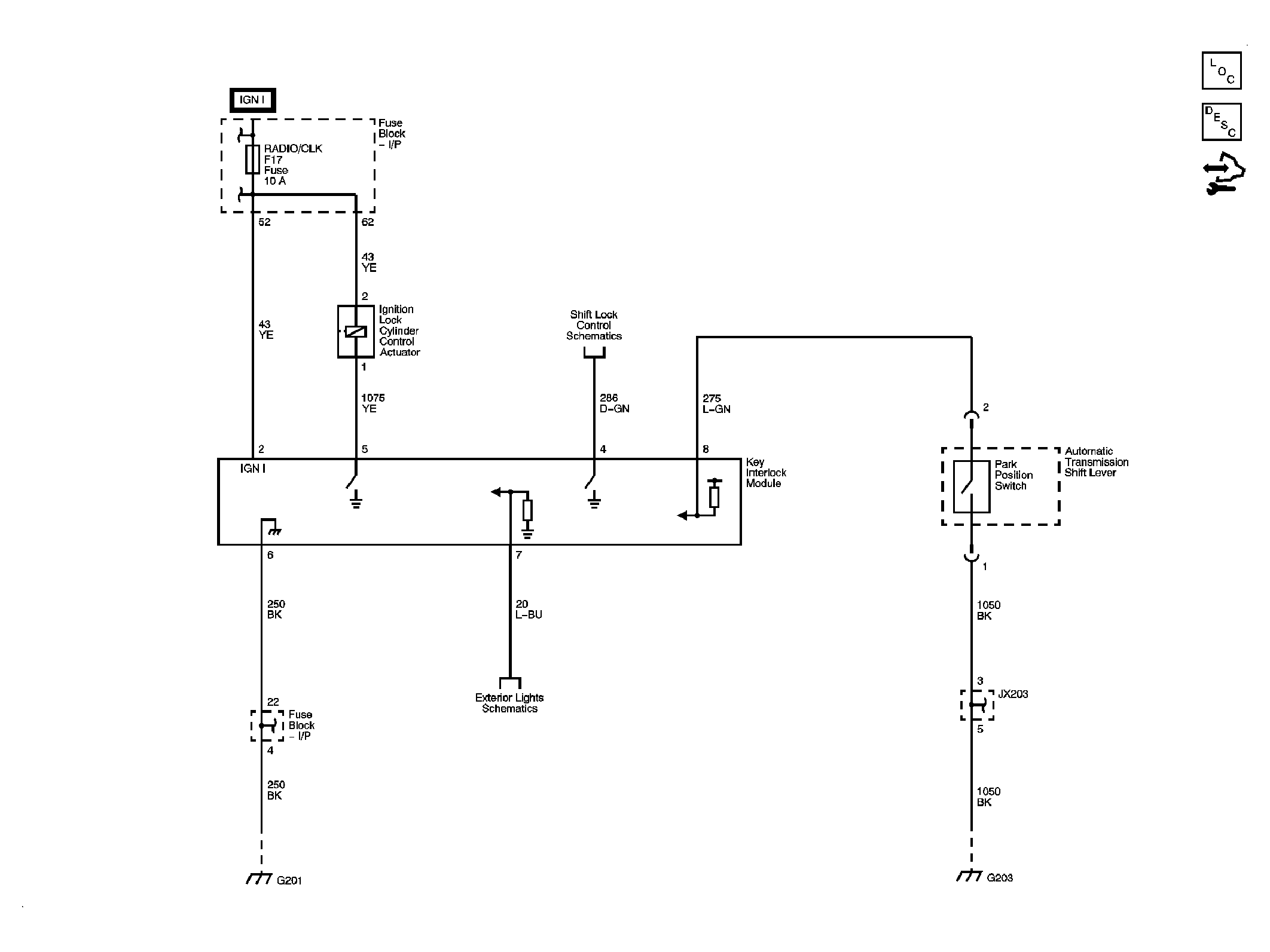

Home >> Chevrolet >> 2008 >> Optra5 LS, Standard >> Repair and Diagnosis >> Electrical >> Body Electrical >> Wiring Systems And Power Management - Introduction >> Schematic and Routing Diagrams >> Ignition Lock Schematics
