Ground Distribution Schematics

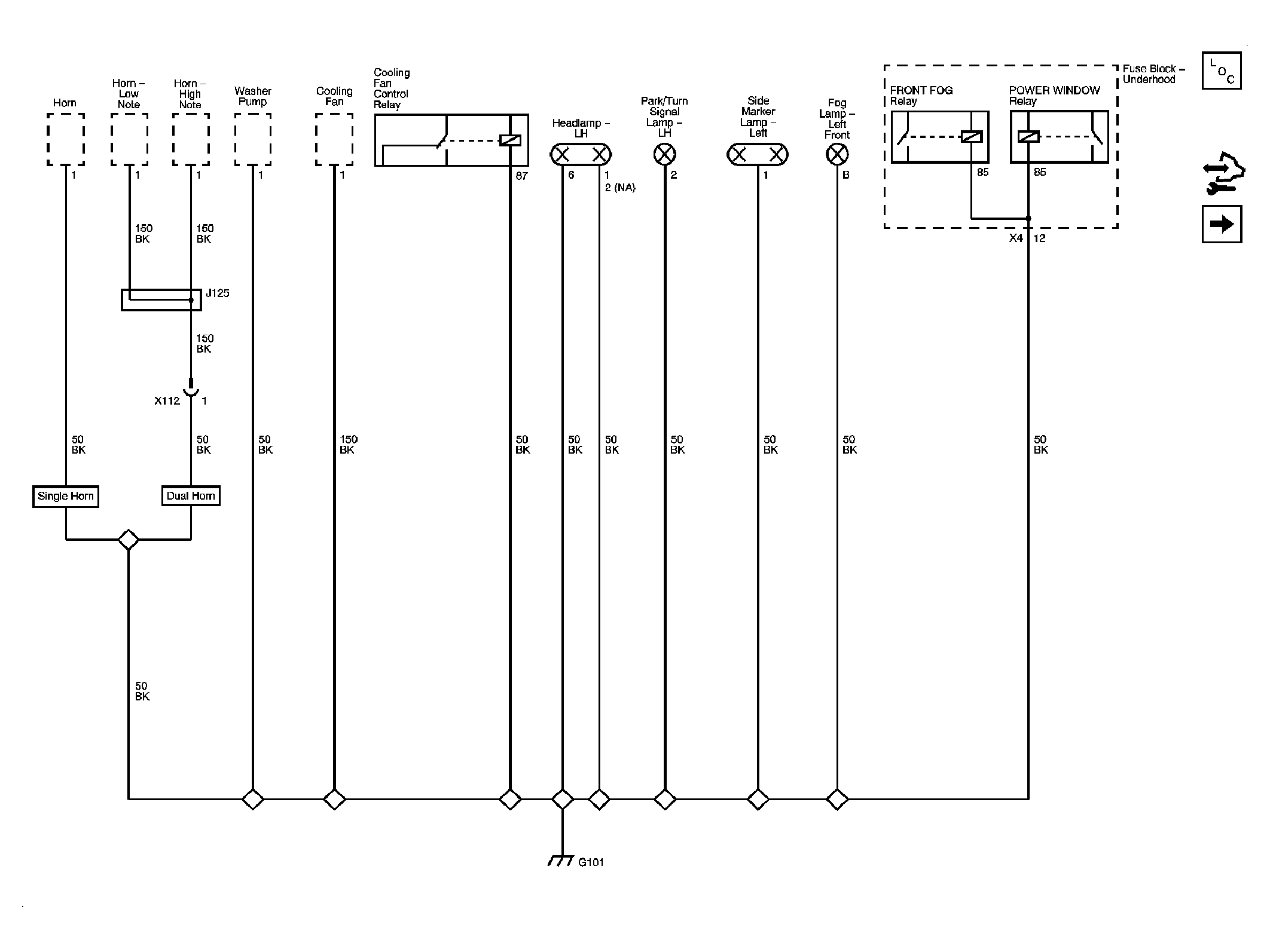

Fig 1: G101 Schematic

GM1963486

Courtesy of GENERAL MOTORS CORP.

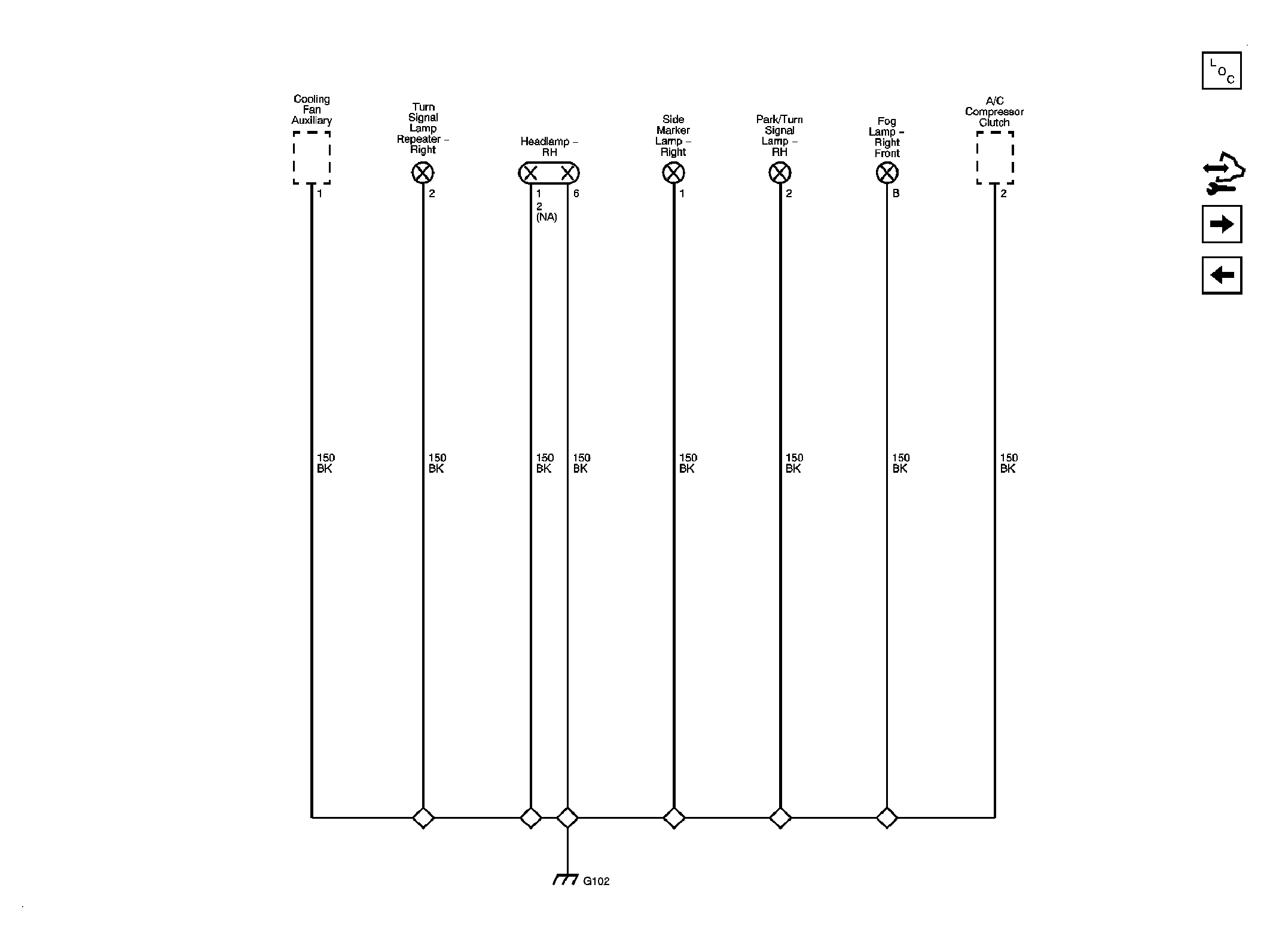

Fig 2: G102 Schematic

GM1963496

Courtesy of GENERAL MOTORS CORP.

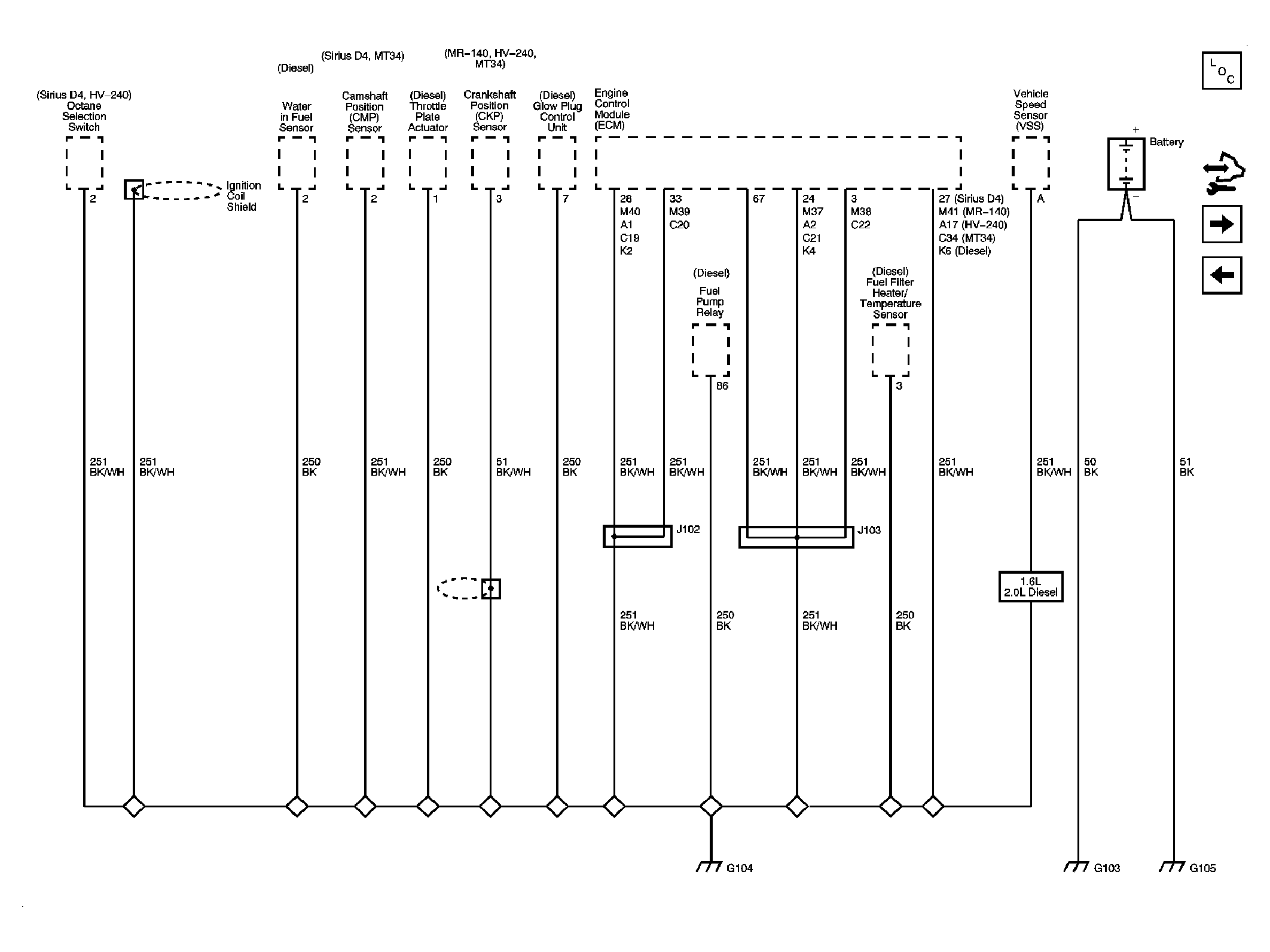

Fig 3: G104 Schematic

GM1963517

Courtesy of GENERAL MOTORS CORP.

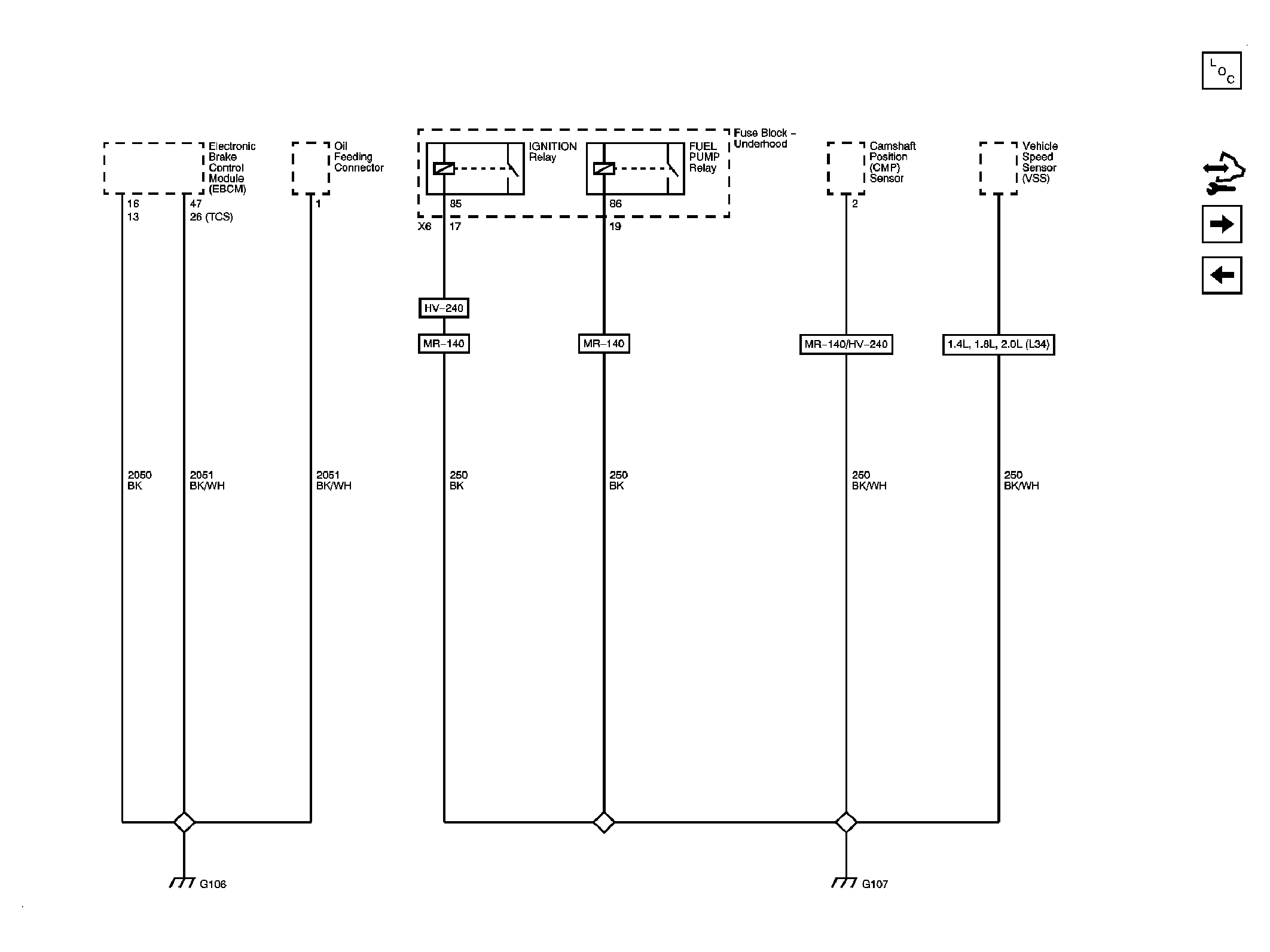

Fig 4: G106, G107 Schematic

GM1963523

Courtesy of GENERAL MOTORS CORP.

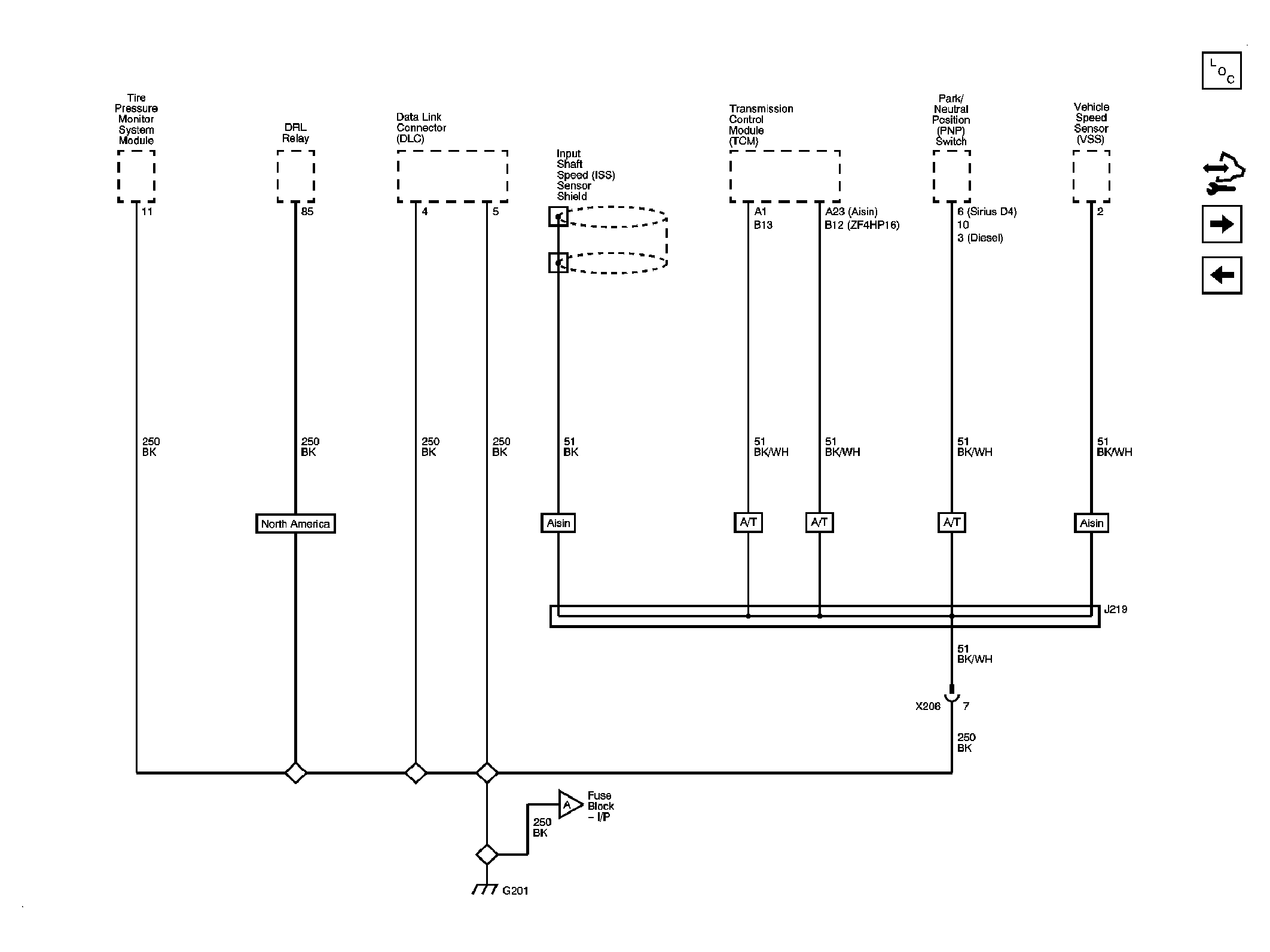

Fig 5: G201 Schematic (1 of 2)

GM1963530

Courtesy of GENERAL MOTORS CORP.

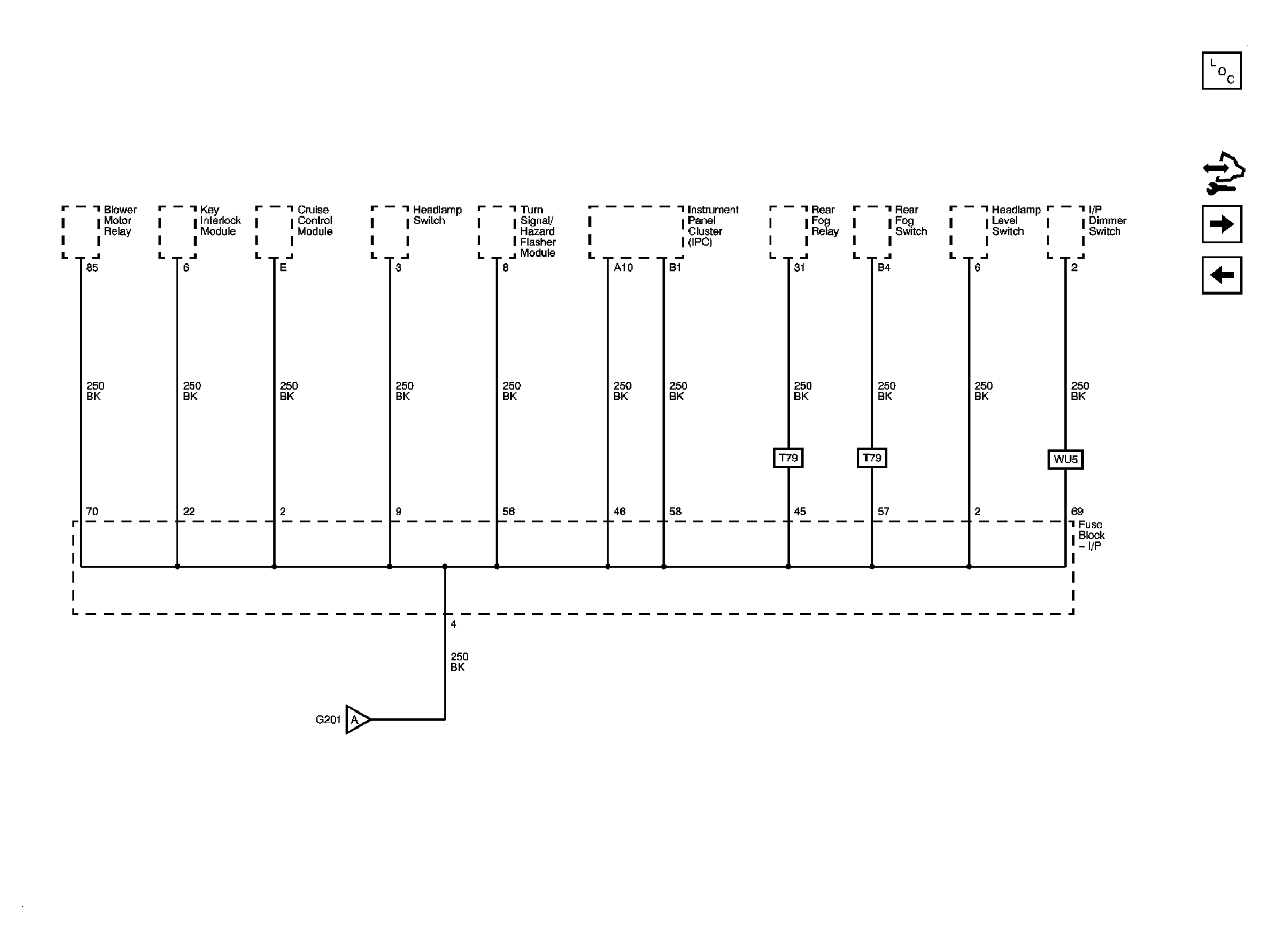

Fig 6: G201 Schematic (2 of 2)

GM1963536

Courtesy of GENERAL MOTORS CORP.

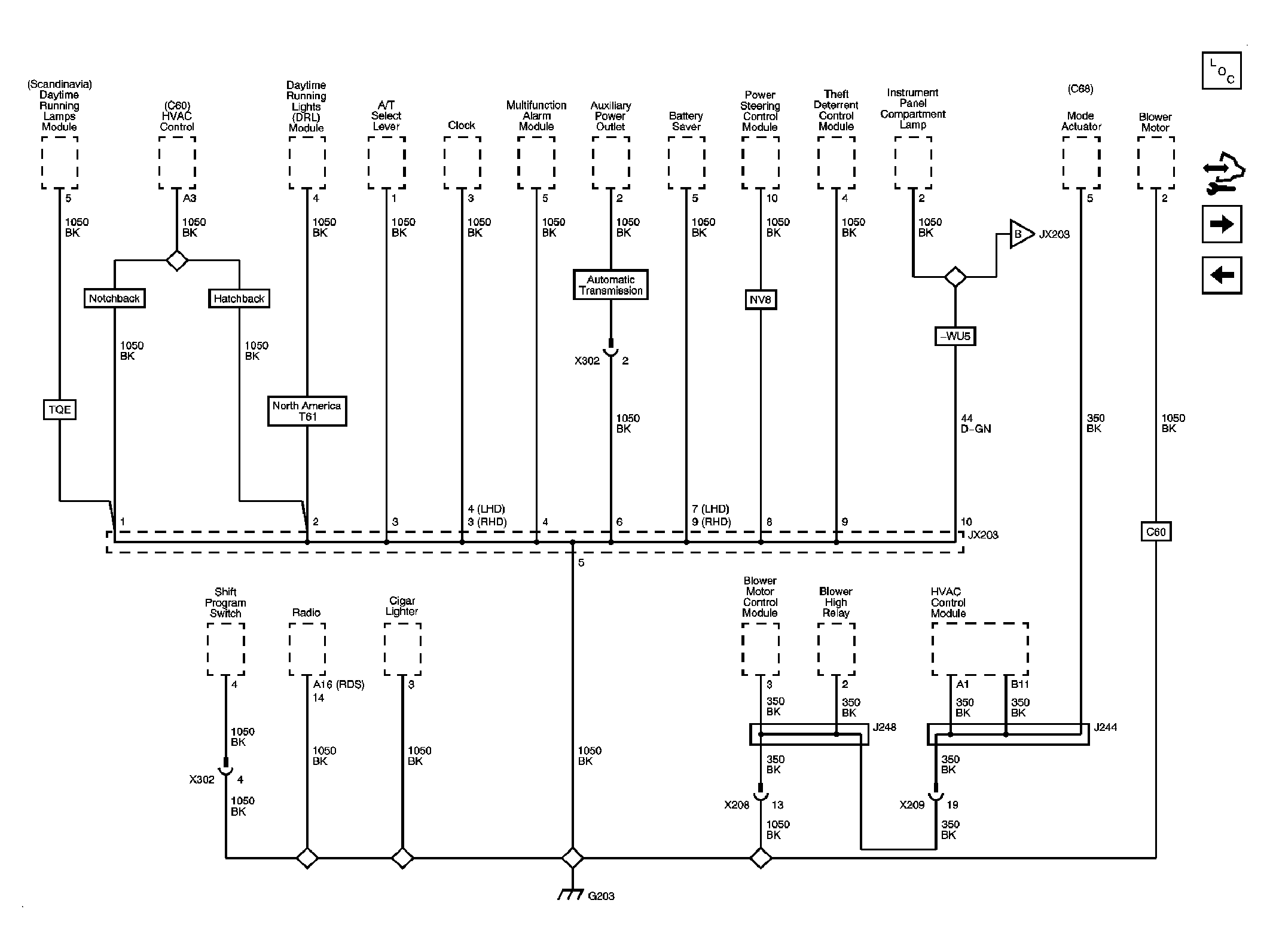

Fig 7: G203 Schematic

GM1963541

Courtesy of GENERAL MOTORS CORP.

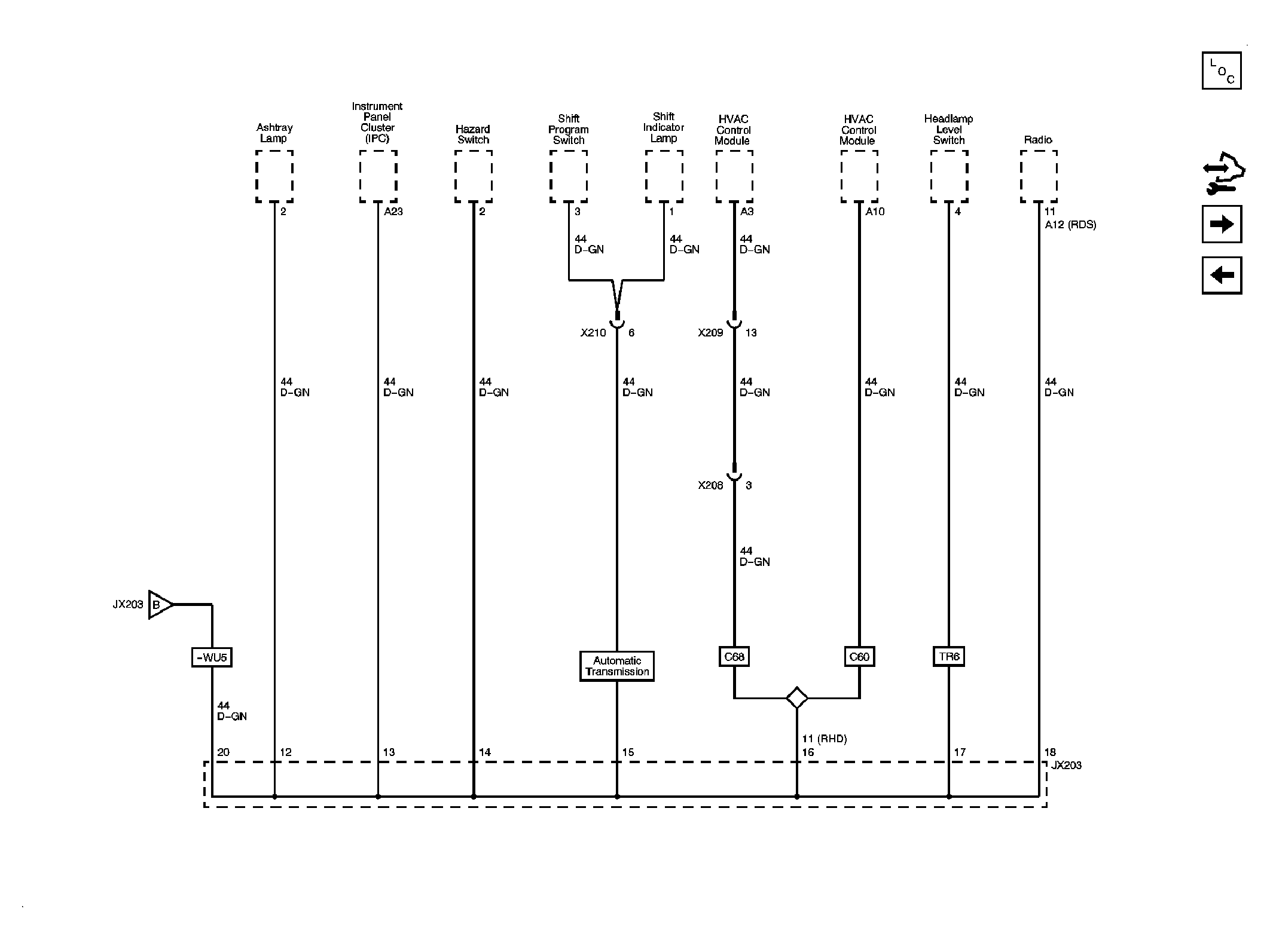

Fig 8: SP203 Schematic

GM1963546

Courtesy of GENERAL MOTORS CORP.

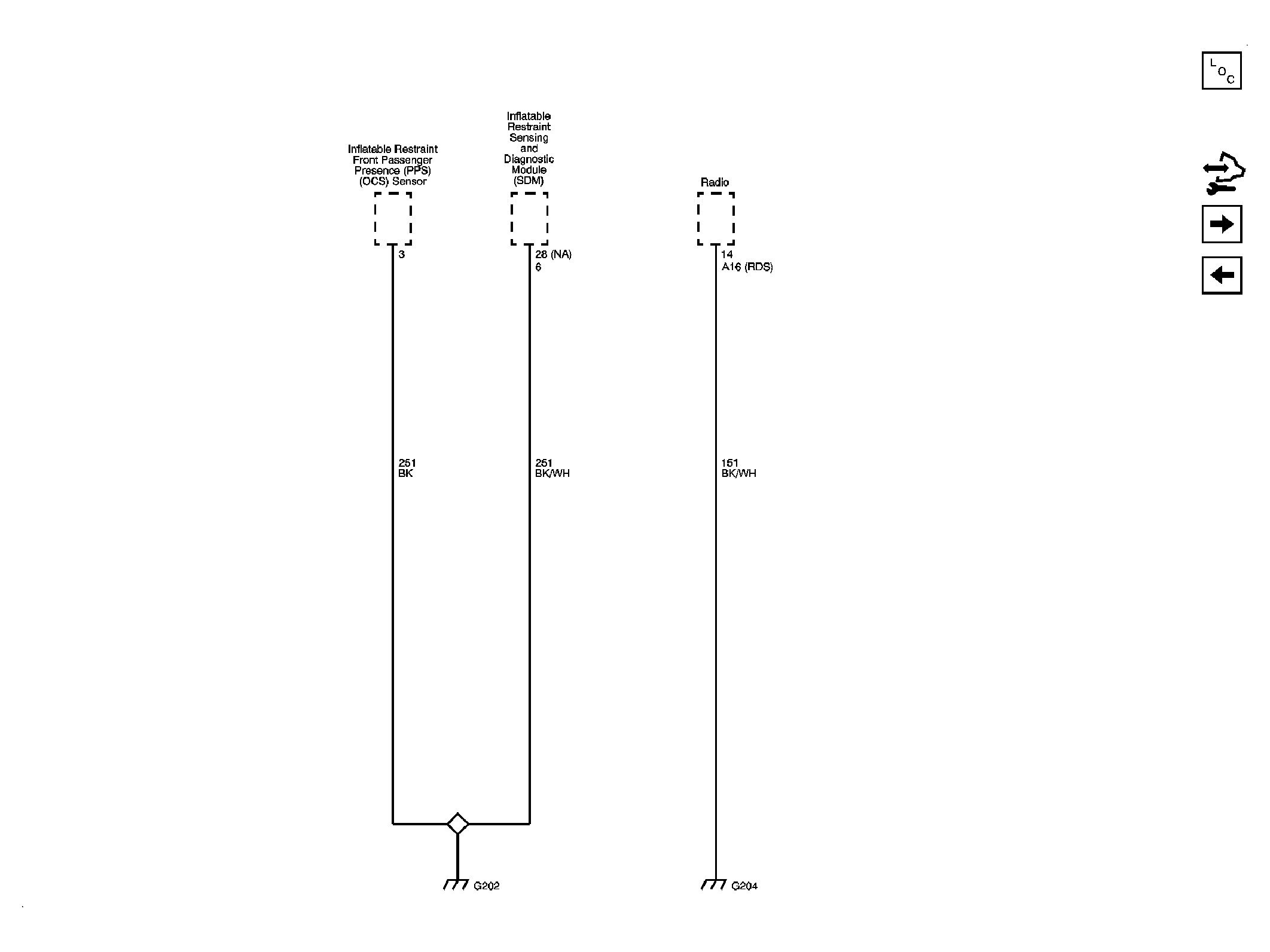

Fig 9: G202, G204 Schematic

GM1963553

Courtesy of GENERAL MOTORS CORP.

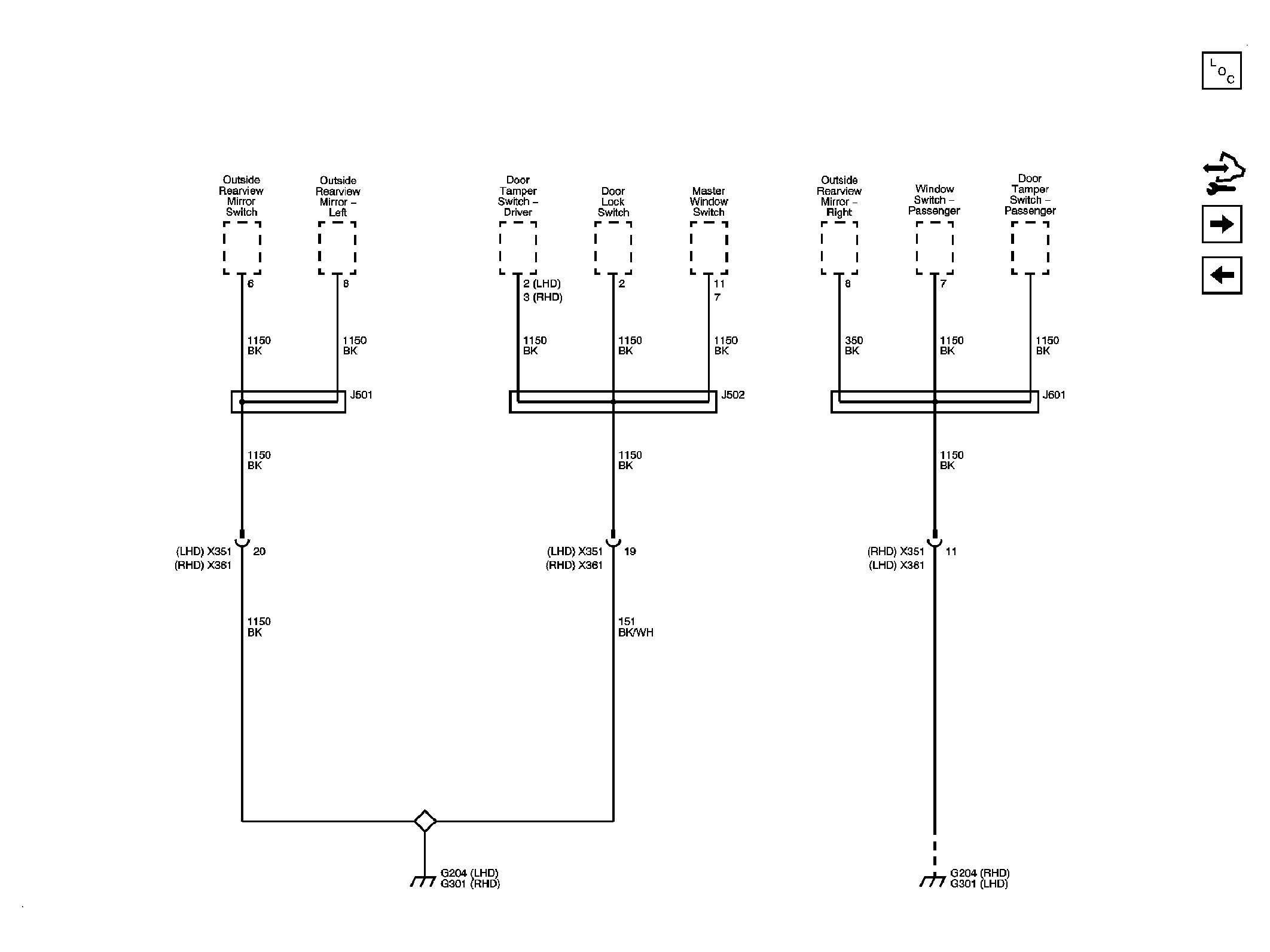

Fig 10: G204, G301 Schematic

GM1963562

Courtesy of GENERAL MOTORS CORP.

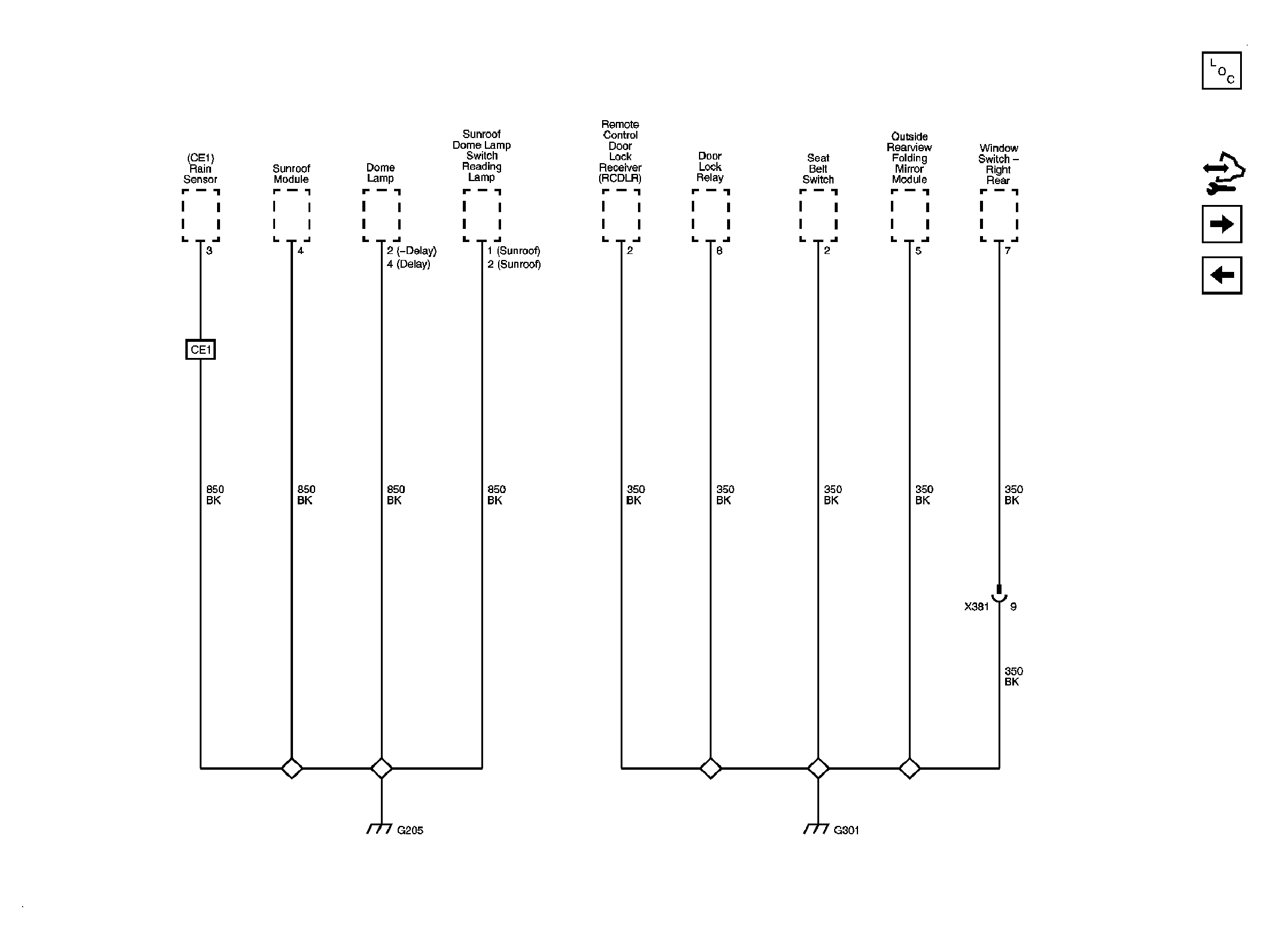

Fig 11: G205, G301 Schematic

GM1963571

Courtesy of GENERAL MOTORS CORP.

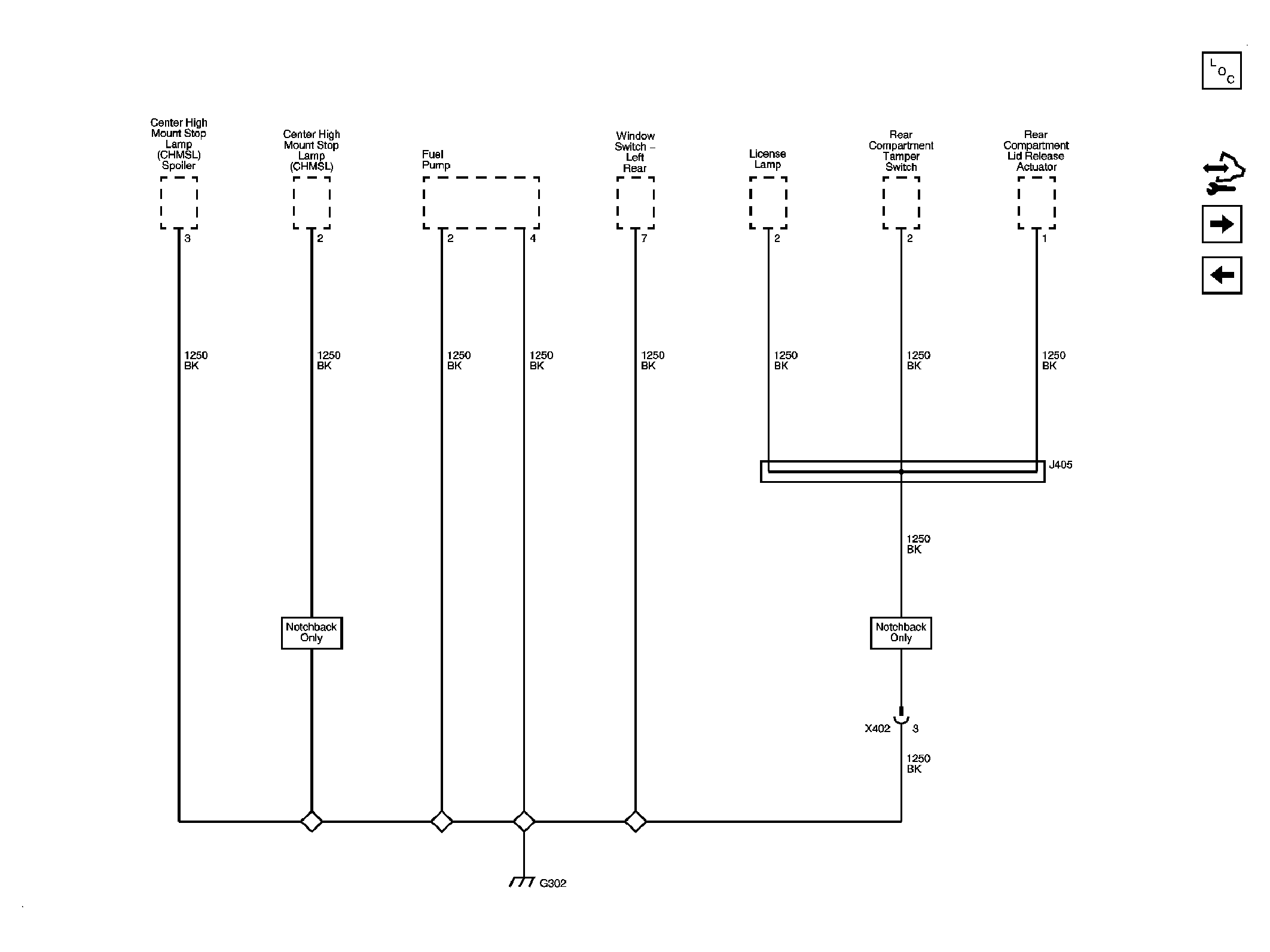

Fig 12: G302 Schematic

GM1963579

Courtesy of GENERAL MOTORS CORP.

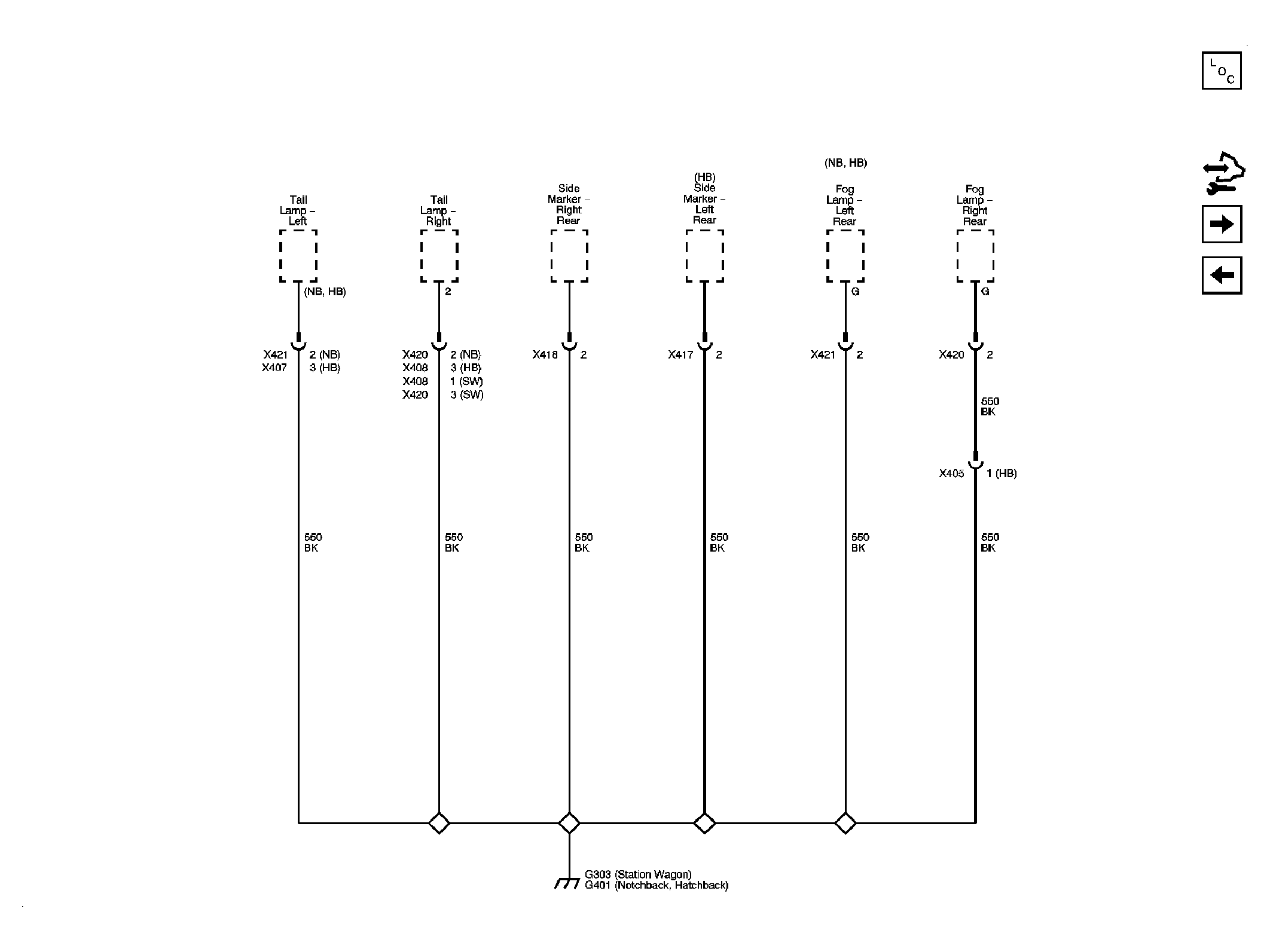

Fig 13: G303, G401 Schematic

GM1963584

Courtesy of GENERAL MOTORS CORP.

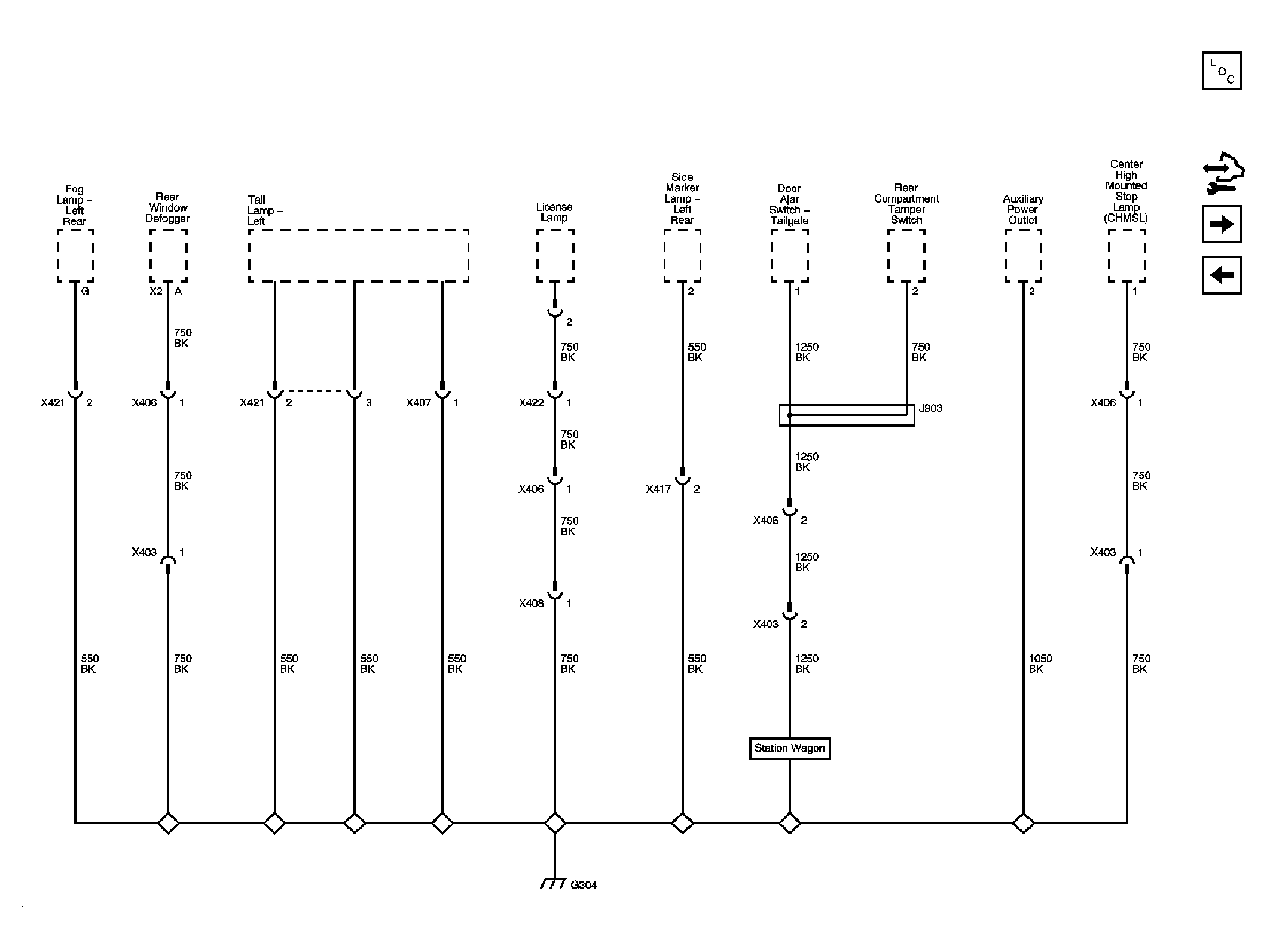

Fig 14: G304 Schematic

GM1963593

Courtesy of GENERAL MOTORS CORP.

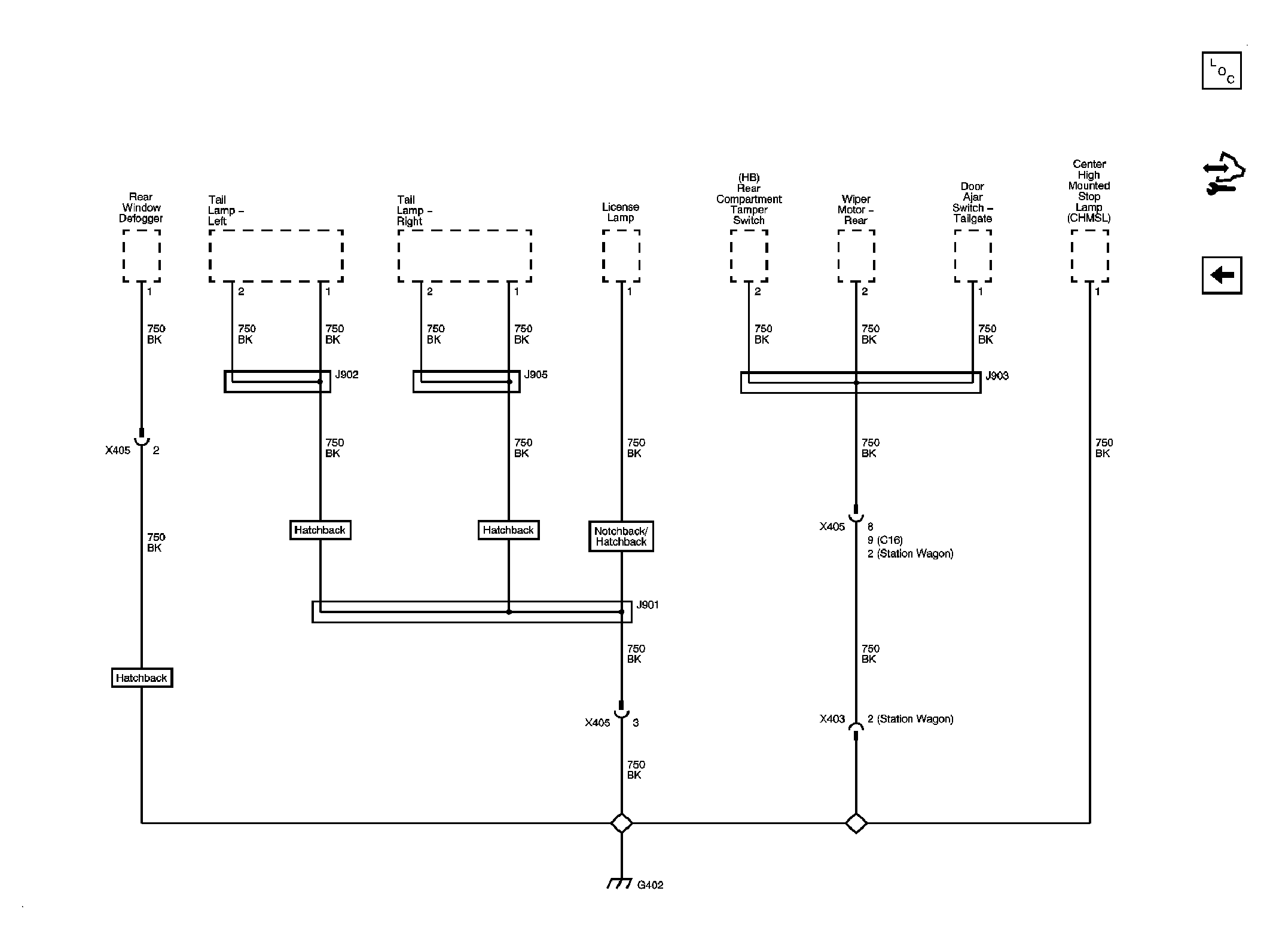

Fig 15: G402 Schematic

GM1963603

Courtesy of GENERAL MOTORS CORP.
